P01 PL05Y Gear Oil Pump

P01 PL05Y Gear Oil Pump

  • Nominal displacement: 7 displacements are provided: 1mL/r、2mL/r、3mL/r、4mL/r、5mL/r、6mL/r、8mL/r,customizable.

Use And Characteristics

① High strength aluminum alloy shell;

② Light weight, compact structure and low noise;

③ Accurate and meticulous structural design makes the oil pump have high volumetric efficiency and high mechanical efficiency;

④ Suitable for a wide range of civil construction machinery, industrial vehicles, handling machinery, agriculture, forestry and fishery machinery and industrial automation devices

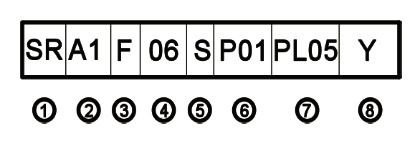

Model Description

P01 PL05Y Gear Oil Pump

① Code name

② Classification code

③ Pressure grade (F: 20MPa)

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left-handed; D: Dextral

⑥ Axial extension and flange [see appendix]

⑦ Oil port form [see appendix]

⑧ With relief valve

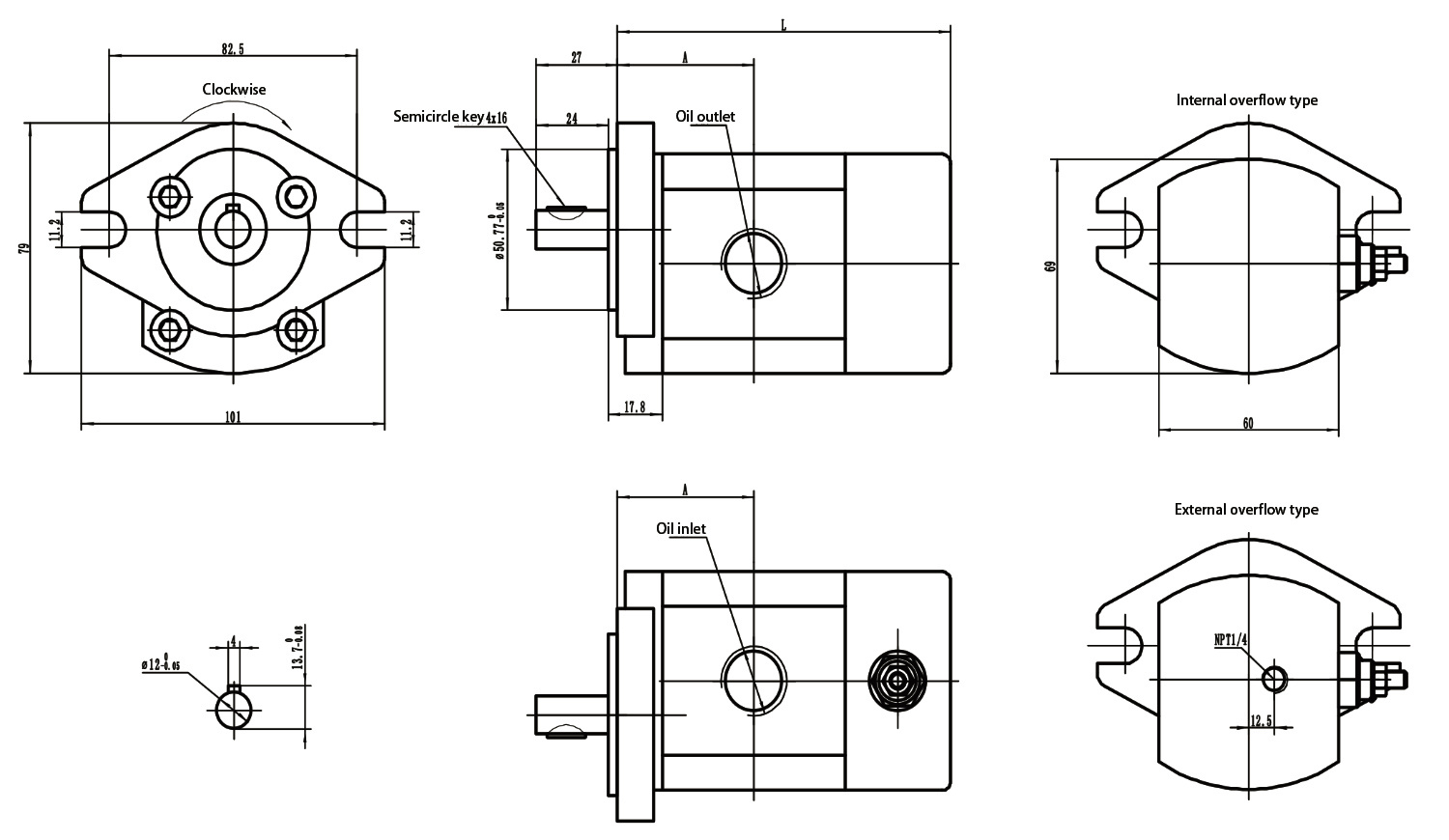

Outline Drawing

P01 PL05Y Gear Oil Pump

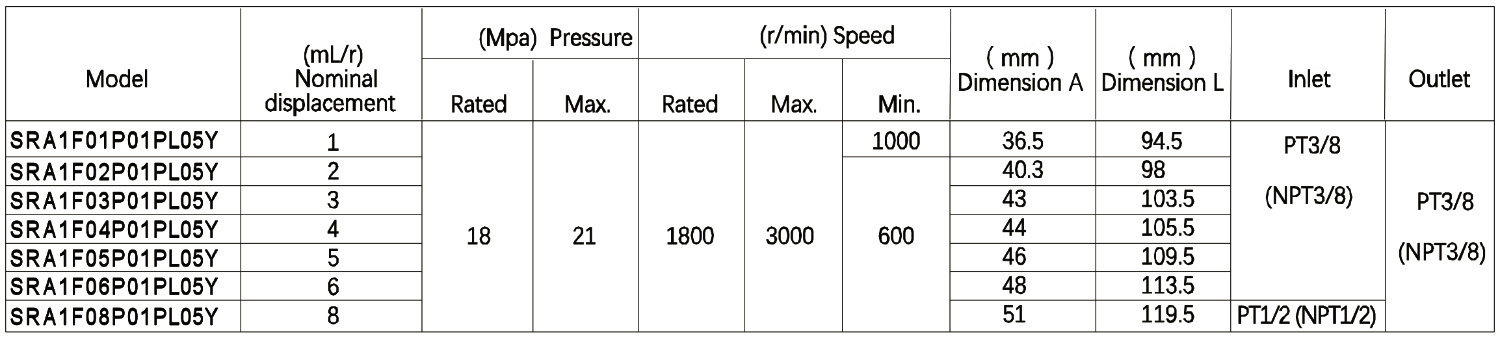

Performance Parameters

P01 PL05Y Gear Oil Pump
