SRMD4 Self Adjusting Synchronous Motor
- Single displacement: 22 displacement types are available, including 6mL/r, 8mL/r, 11mL/r, 14mL/r, 17mL/r, 25mL/r, 30mL/r, etc., which can be customized.
Purpose And Characteristics
① High strength aluminum alloy pump body, light weight, low noise;
② DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;
③ This product is widely used in various machines that require synchronous action;
④ This product can be used in situations where actuator load is unbalanced (unbalanced). It has the functions of pressure compensation and manual adjustment of output flow;
⑤ The working pressure of the actuator should not be higher than 24MPa, and the regulating valve should not be closed to avoid damaging the motor.

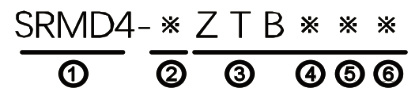

Model Description
① Product code
② Couplet number
③ Self adjusting pressure compensation
④ Single displacement (mL/r)
⑤ Pressure rating [E: 16MPa; F: 20MPa]
⑥ Thread type [M: metric thread; G: G thread; N: NPT thread]

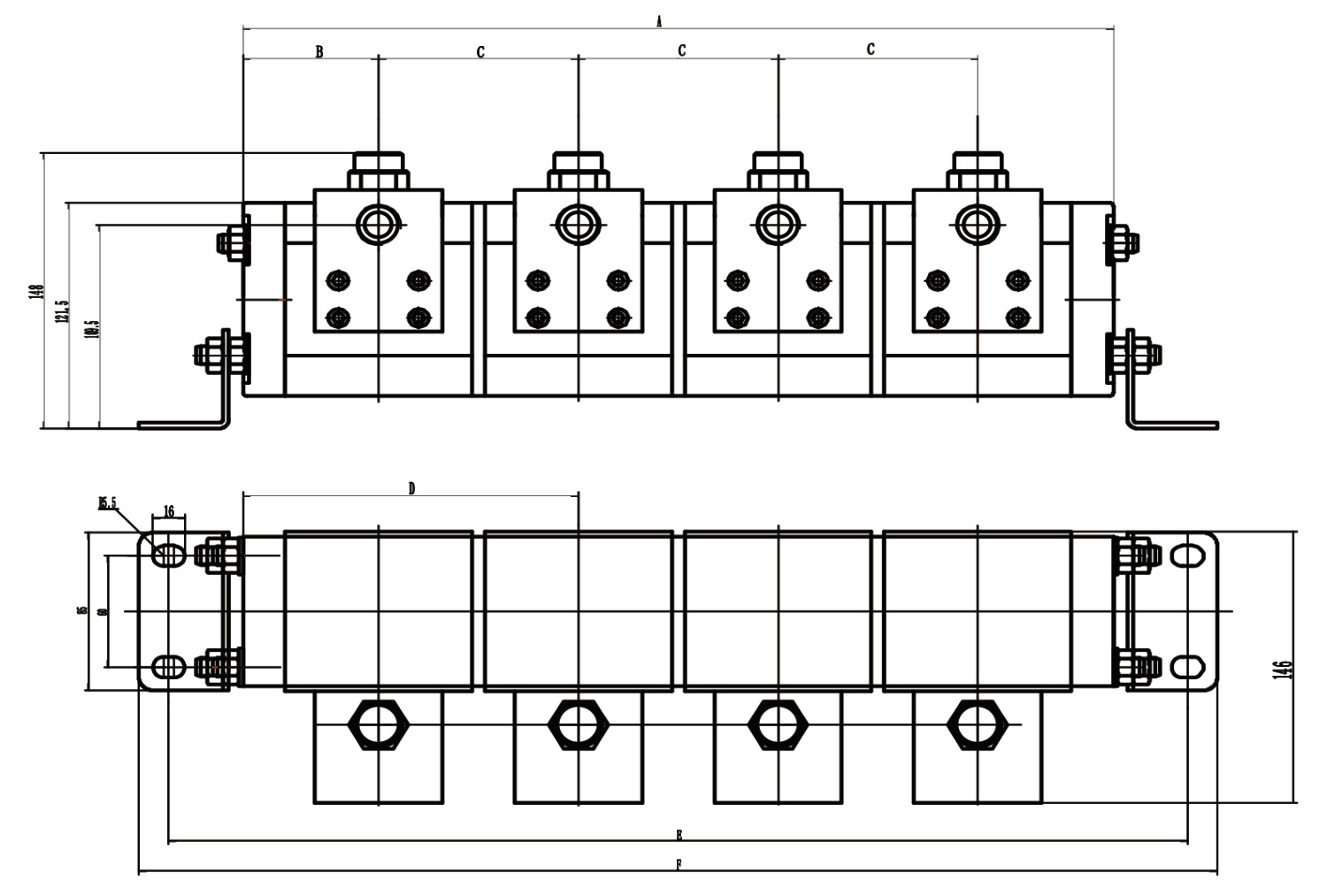

Outline Drawing

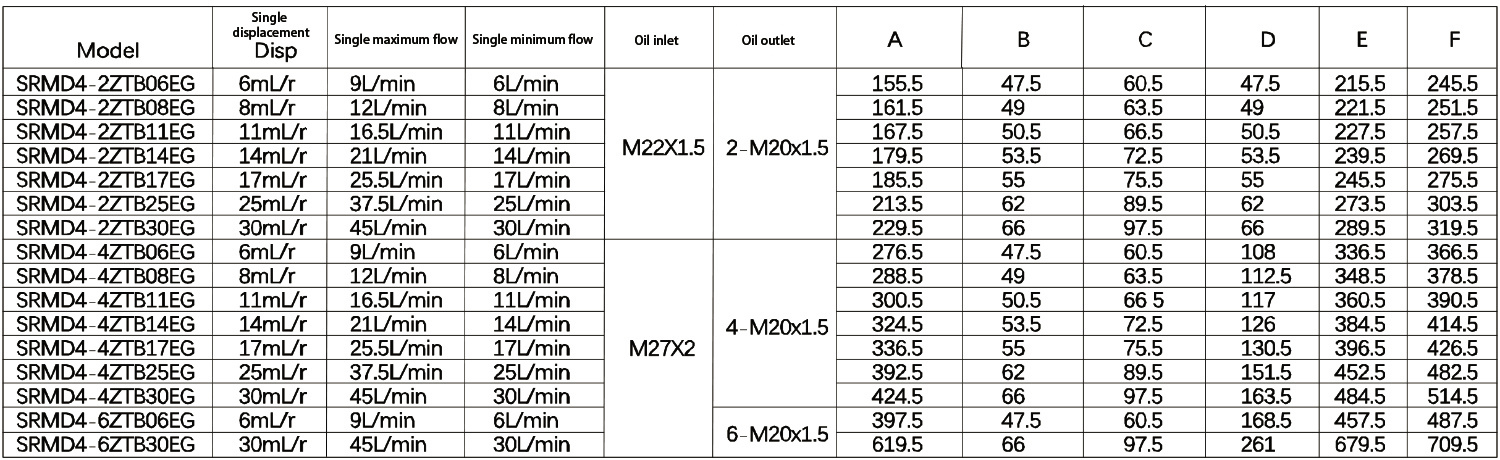

Performance Parameter
