SRMD5 Manual Synchronous Motor

SRMD5 Manual Synchronous Motor

  • Single displacement: 15 displacement types are provided, including: 20mL/r, 25mL/r, 32mL/r, 40mL/r, 50mL/r, 63mL/r, 80mL/r, etc., which can be customized.

Purpose And Characteristics

① High strength aluminum alloy pump body, light weight, low noise;

② DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;

③ This product is widely used in various machines that require synchronous action;

④ This product can be used in situations where actuator load is unbalanced (unbalanced). It has the functions of pressure compensation and manual adjustment of output flow;

⑤ The working pressure of the actuator should not be higher than 24MPa, and the regulating valve should not be closed to avoid damaging the motor.

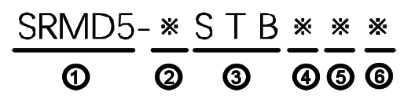

Model Description

SRMD5 Manual Synchronous Motor

① Product code

② Couplet number

③ Manual flow control

④ Single displacement (mL/r)

⑤ Pressure rating [E: 16MPa; F: 20MPa]

⑥ Thread type [M: metric thread; G: G thread]

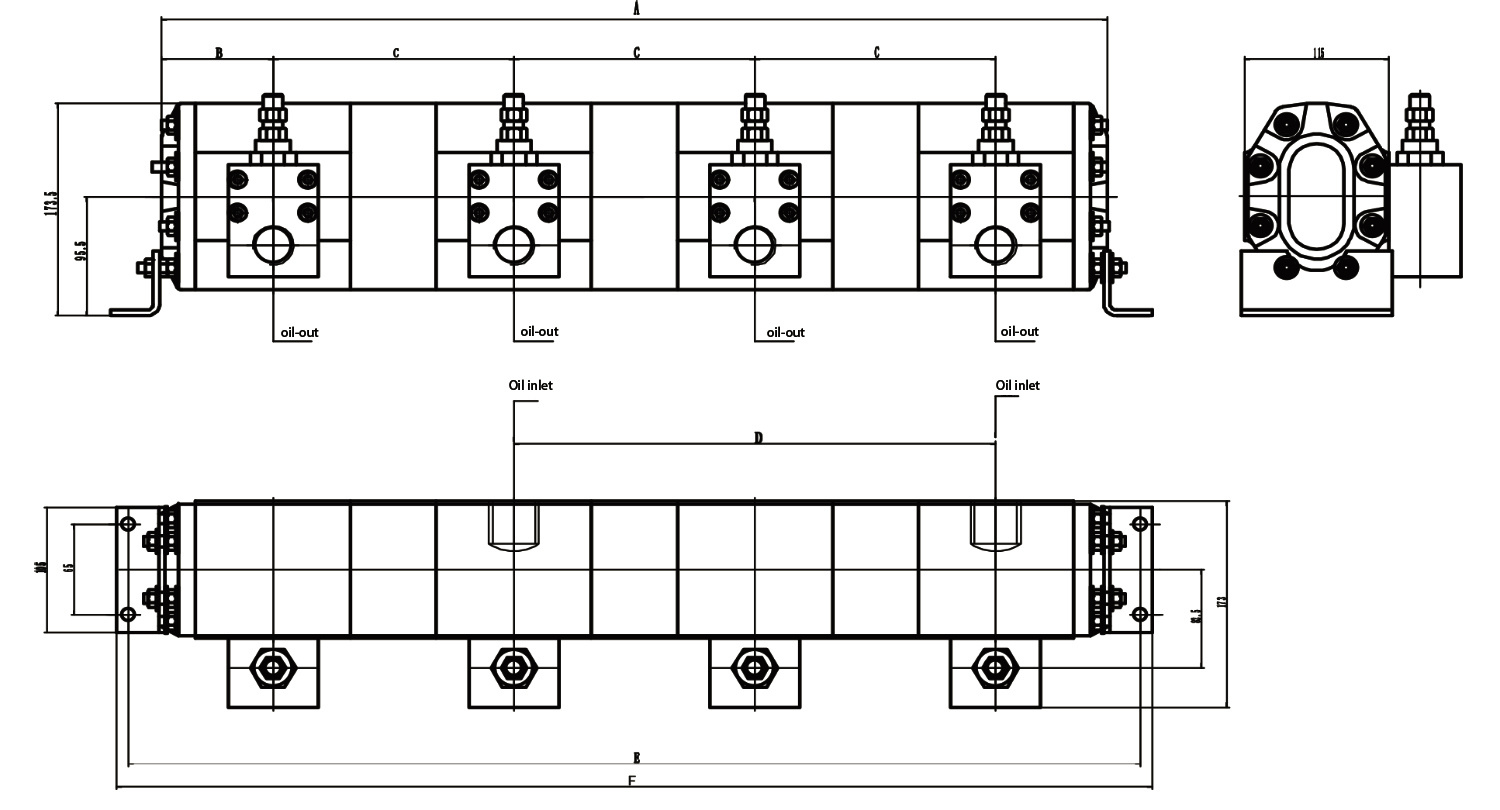

Outline Drawing

SRMD5 Manual Synchronous Motor

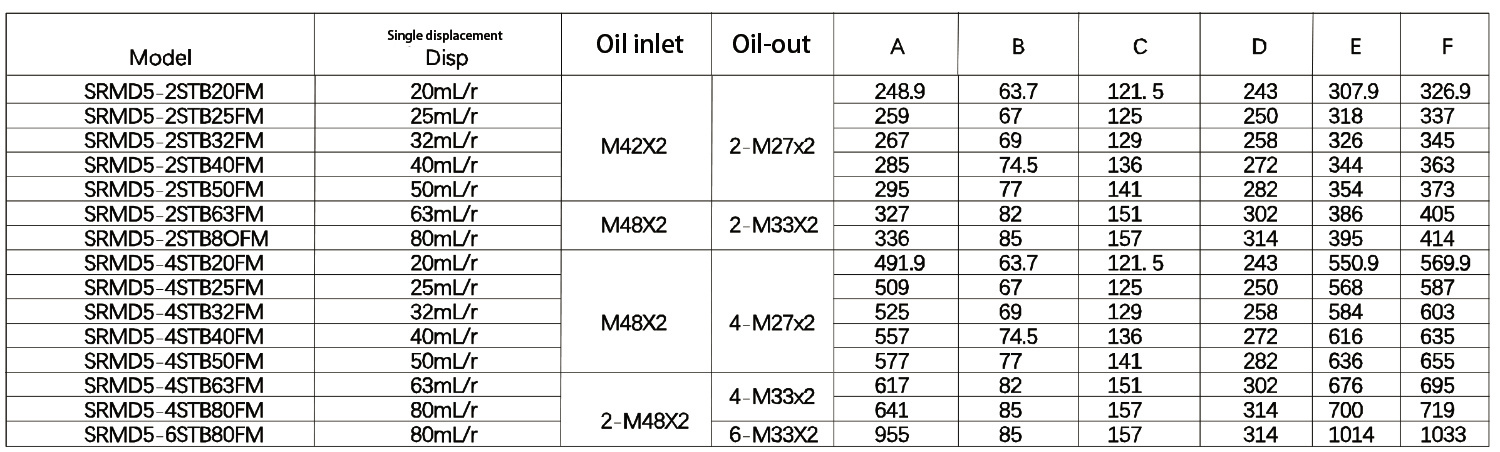

Performance Parameter

SRMD5 Manual Synchronous Motor
