SRFMA Synchronous Shunt Motor
- Single displacement: 6 displacement types are provided, namely: 2.1mL/r, 4.2mL/r, 6.3mL/r, 8.8mL/r, 2.1mL/r, 4.2mL/r, 6.3mL/r, and 8.8mL/r, which can be customized.
Purpose And Characteristics
① High strength aluminum alloy pump body, light weight, low noise;
② Alloy steel hard tooth surface transmission, long service life, stable performance;
③ DU composite bearing and high-performance sealing element, with good sealing performance;
④ This product is widely used in various machines that require synchronous action;
⑤ The working pressure of the synchronous motor should be higher than the load pressure.

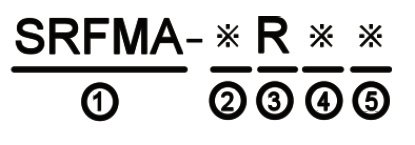

Model Description
① Product code
② Couplet number
③ With overflow valve
④ Single displacement (mL/r)
⑤ Thread type [M: metric thread; PT: PT thread]

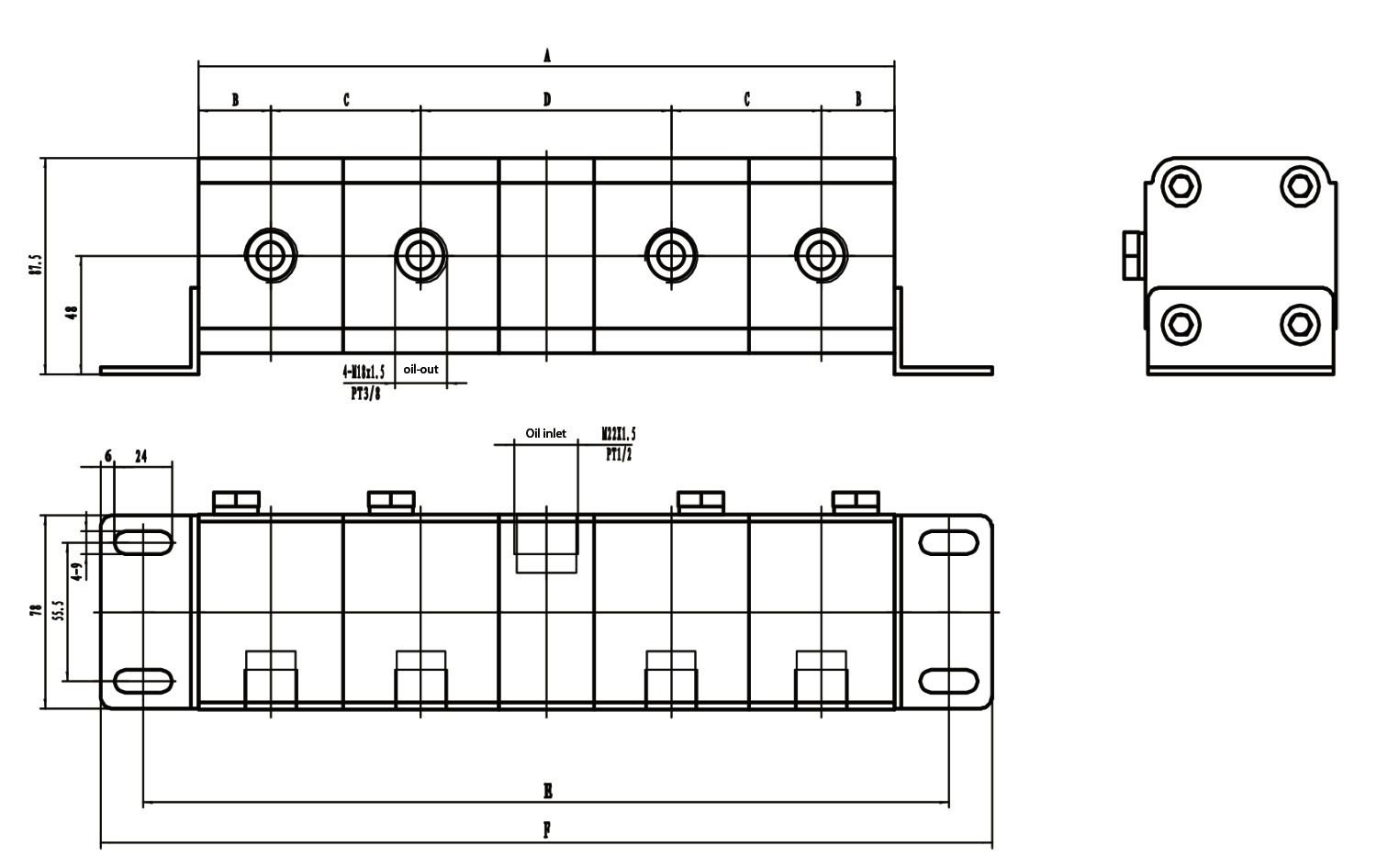

Outline Drawing

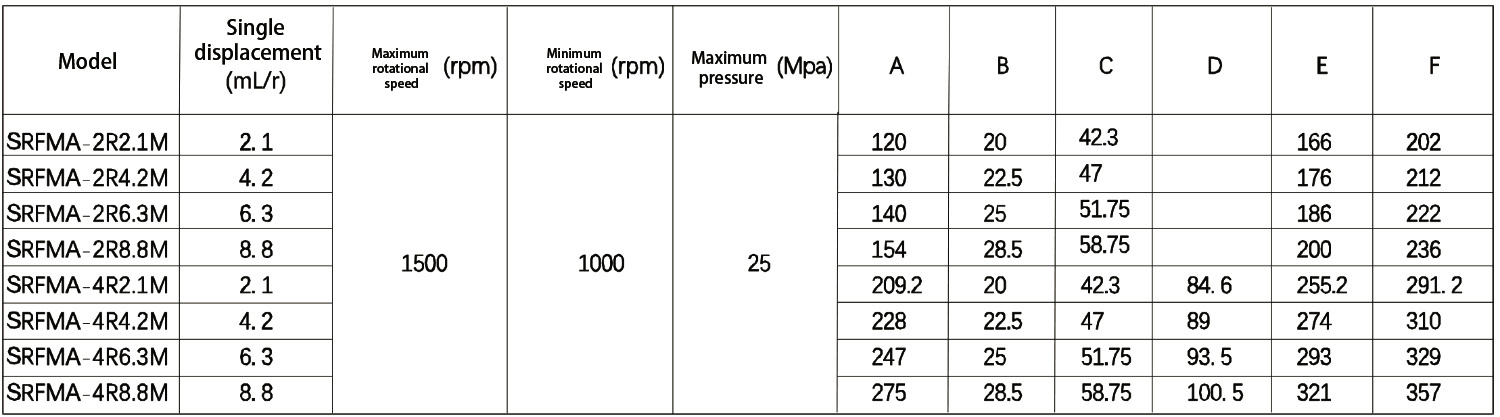

Performance Parameter
