SRMD1 Synchronous Shunt Motor

SRMD1 Synchronous Shunt Motor

  • Single displacement: 7 displacement types are available, respectively: 1mL/r, 2mL/r, 3mL/r, 4mL/r, 5mL/r, 6mL/r, and 8mL/r, which can be customized.

Purpose And Characteristics

① High strength aluminum alloy pump body, light weight, low noise;

② Alloy steel hard tooth surface transmission, long service life, stable performance;

③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;

④ This product is widely used in various machines that require synchronous action.

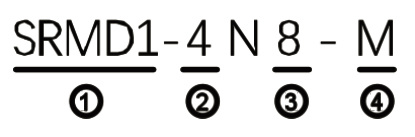

Model Description

SRMD1 Synchronous Shunt Motor

① Product code

② Couplet number

③ Nominal displacement (mL/r)

④ Thread type [M: metric thread; PT: PT thread]

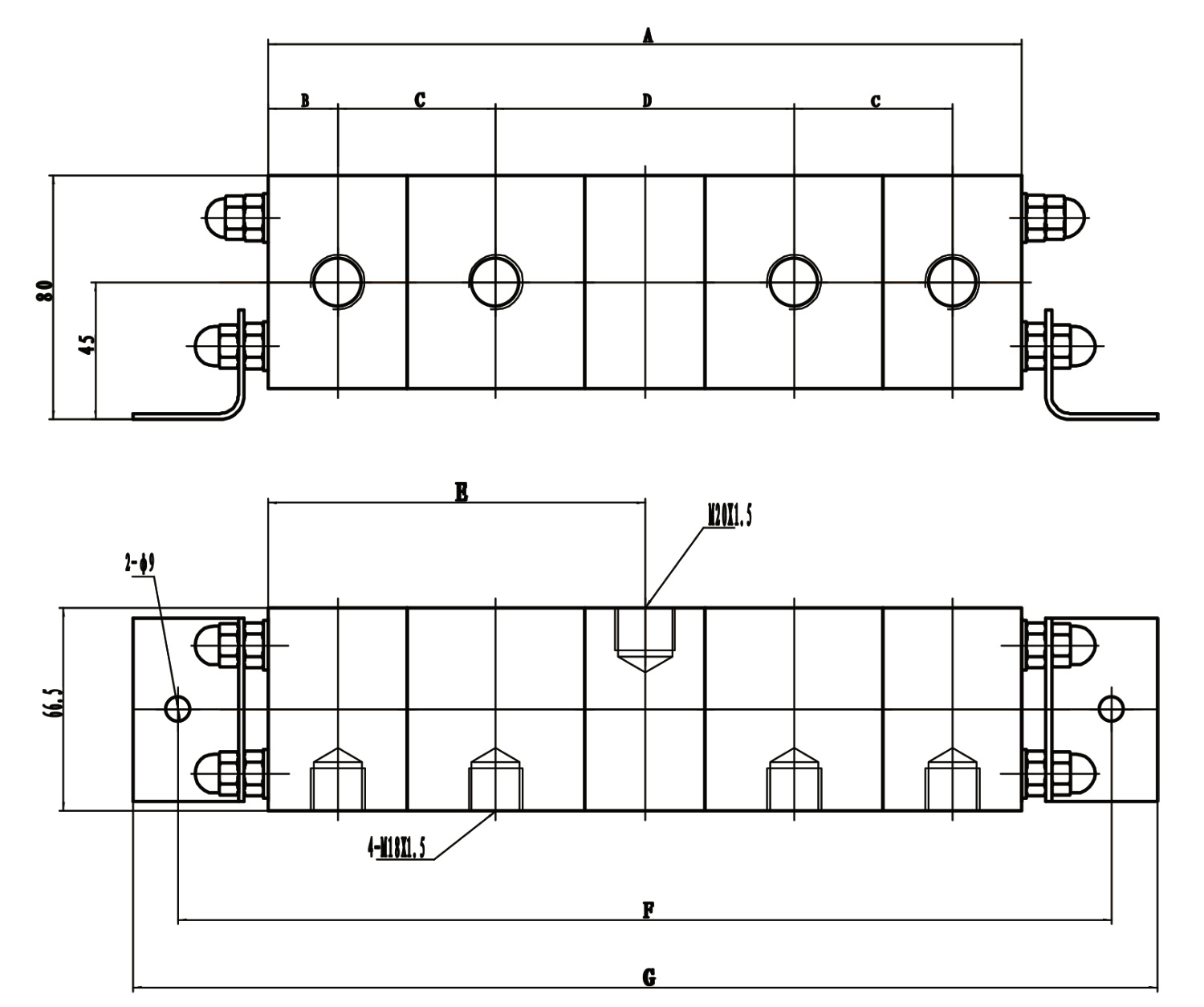

Outline Drawing

SRMD1 Synchronous Shunt Motor

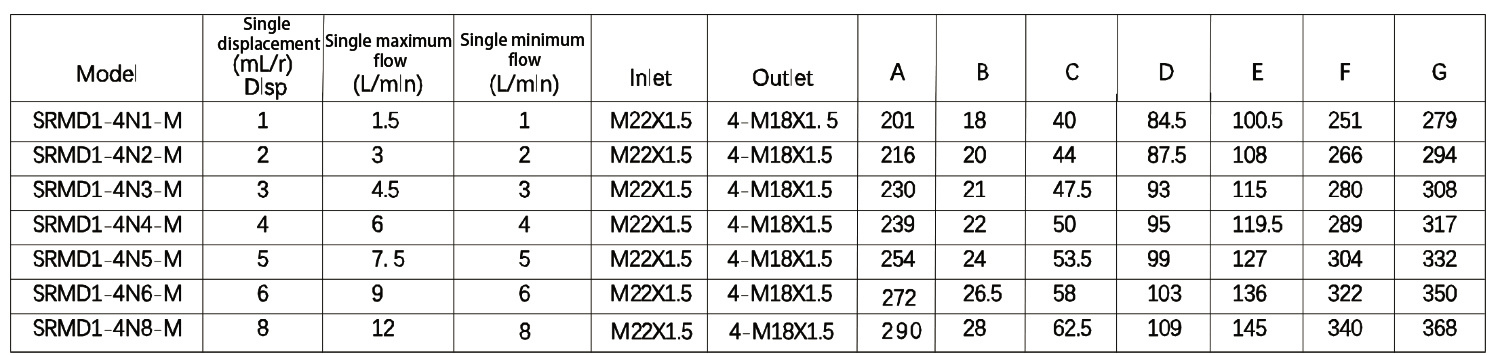

Performance Parameter

SRMD1 Synchronous Shunt Motor
