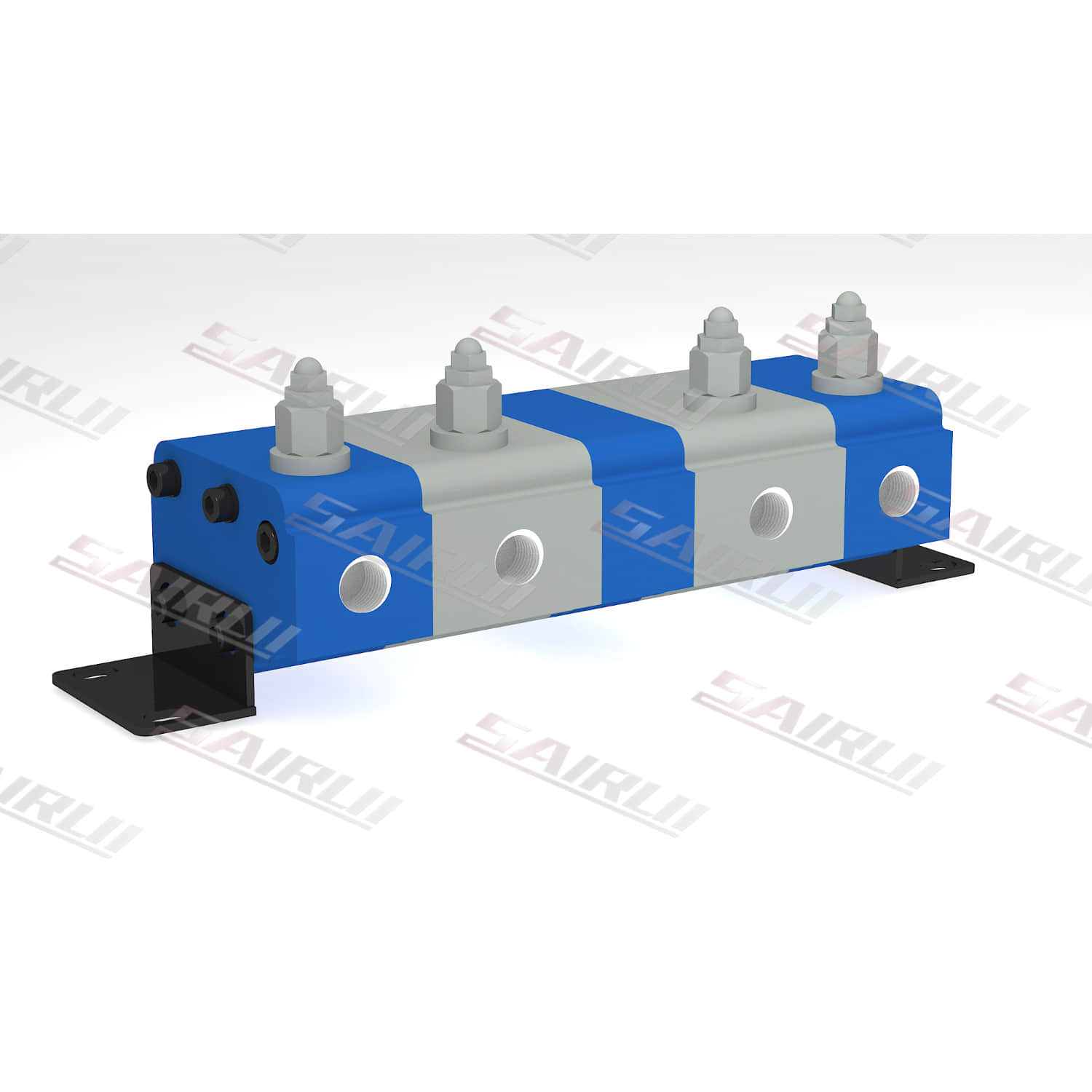

SRMD2 Synchronous Shunt Motor
- Single displacement: 7 displacement types are available, respectively: 1mL/r, 2mL/r, 3mL/r, 4mL/r, 5mL/r, 6mL/r, and 8mL/r, which can be customized.
Purpose And Characteristics
① High strength aluminum alloy pump body, light weight, low noise;
② Alloy steel hard tooth surface transmission, long service life, stable performance;
③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;
④ This product is widely used in various machines that require synchronous action.

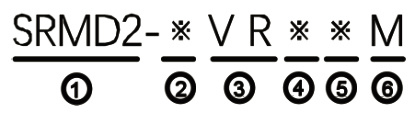

Model Description
① Product code
② Couplet number
③ With overflow valve
③ Nominal displacement (mL/r)
⑤ Pressure rating [E: 16MPa; F: 20MPa]
④ Thread type [M: metric thread; G: G thread]

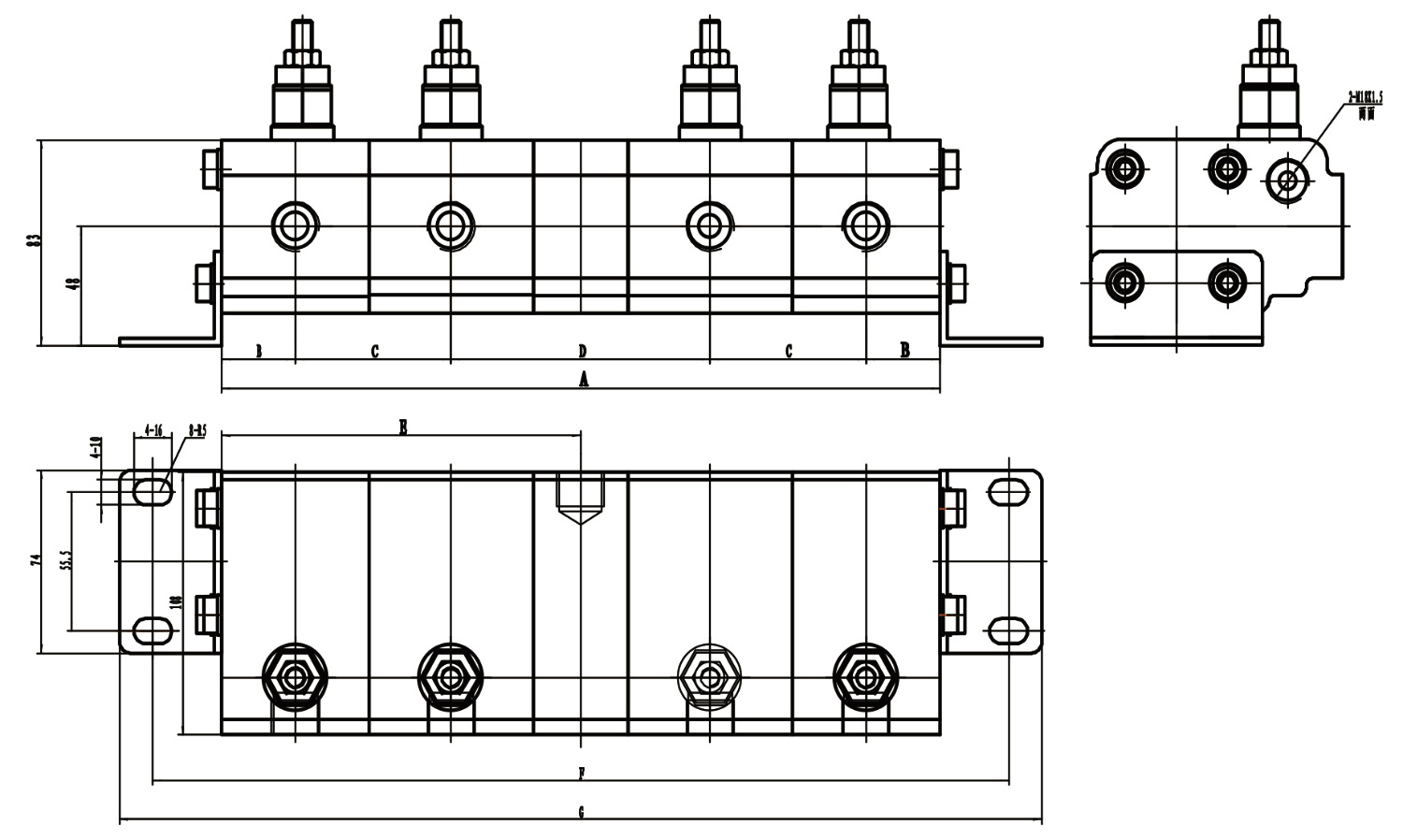

Outline Drawing

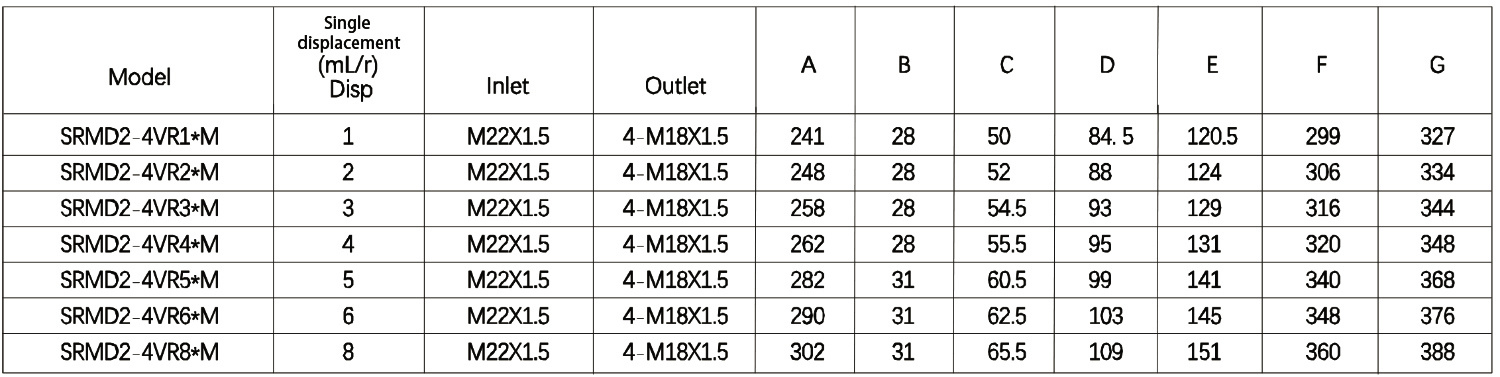

Performance Parameter
