SRMD3 Synchronous Shunt Motor

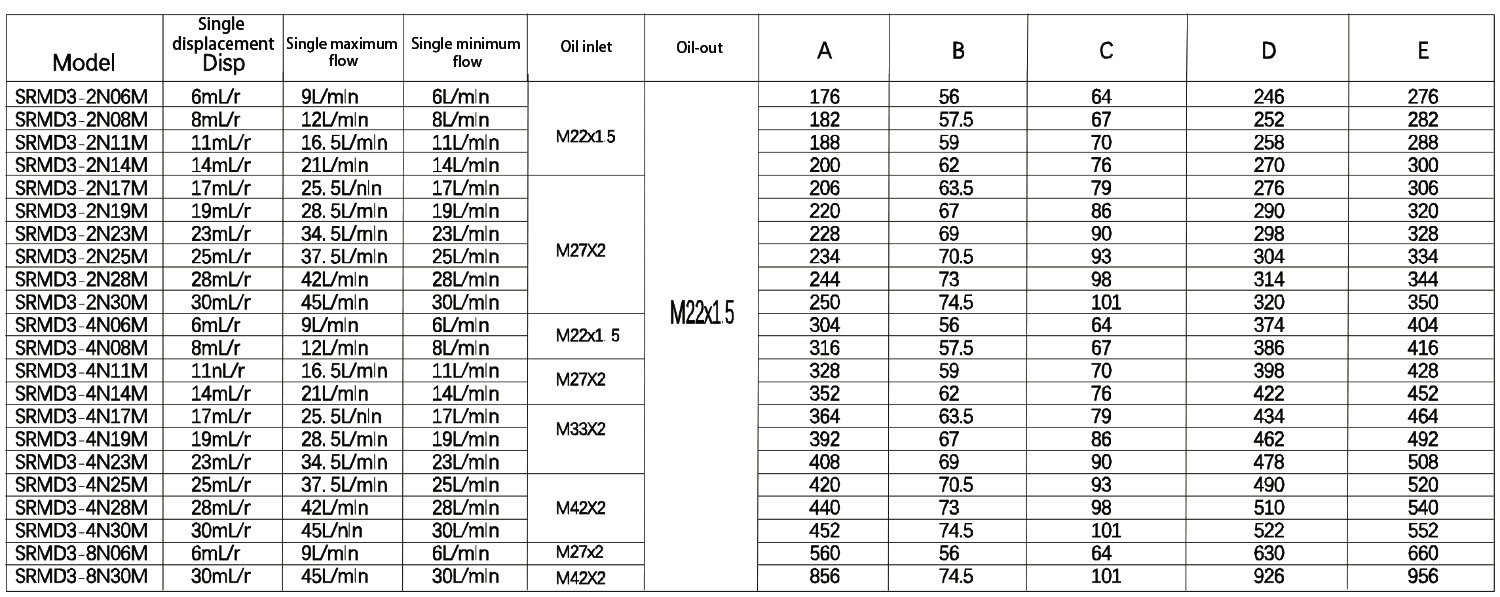

- Single displacement: 22 displacement types are available, including 6mL/r, 8mL/r, 11mL/r, 14mL/r, 17mL/r, 19mL/r, 23mL/r, 25mL/r, 28mL/r, 30mL/r, etc., which can be customized.
Purpose And Characteristics
① High strength aluminum alloy pump body, light weight, low noise;
② Alloy steel hard tooth surface transmission, long service life, stable performance;
③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;
④ This product is widely used in various machines that require synchronous action;
⑤ The working pressure of the synchronous motor should be higher than the load pressure.

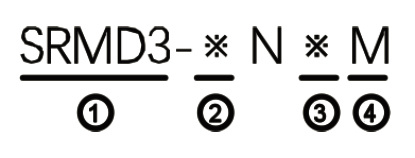

Model Description
① Product code
② Couplet number
③ Nominal displacement (mL/r)
④ Thread type [M: metric thread; G: G thread]

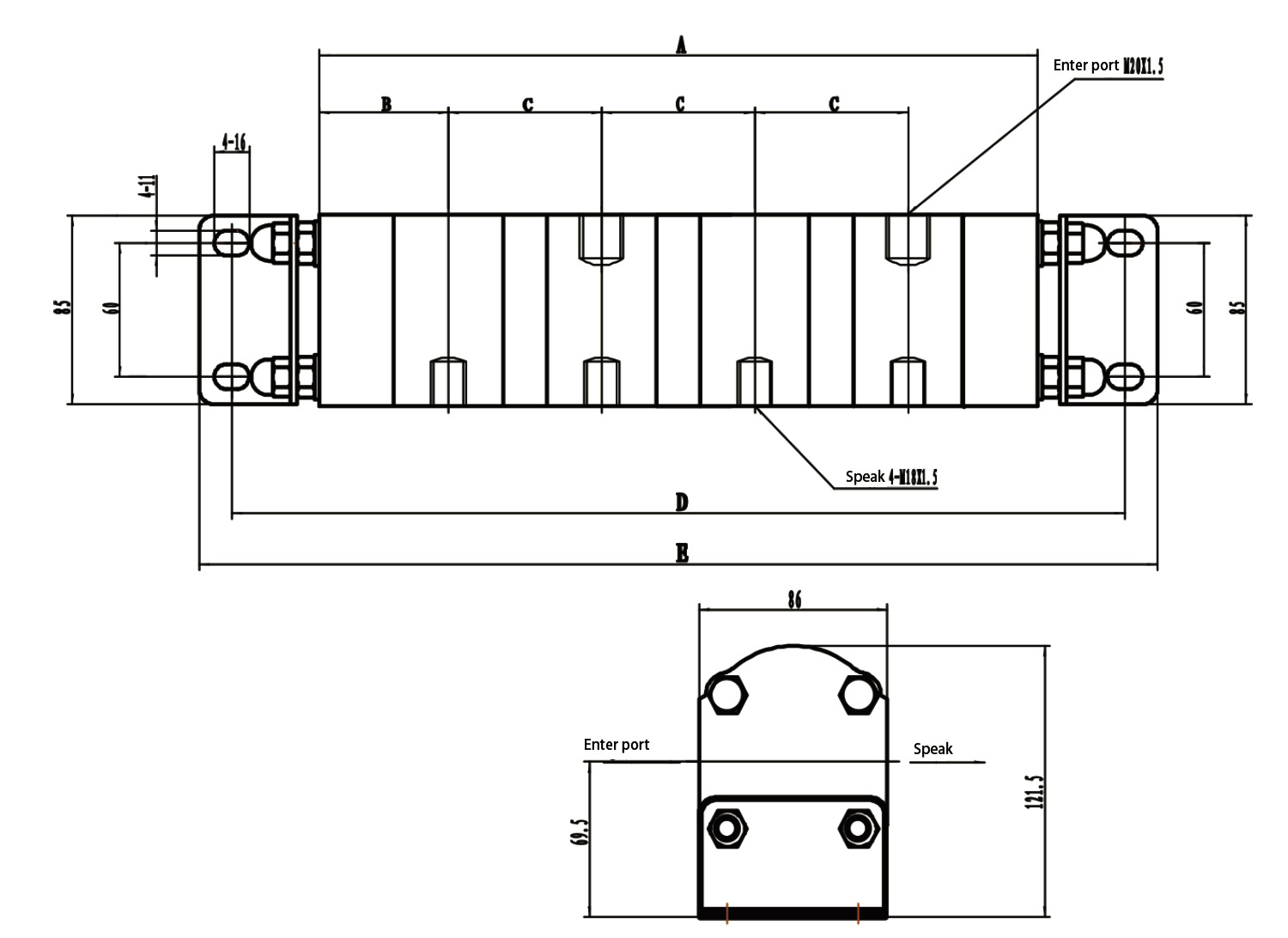

Outline Drawing
Outflow Gear Motor
