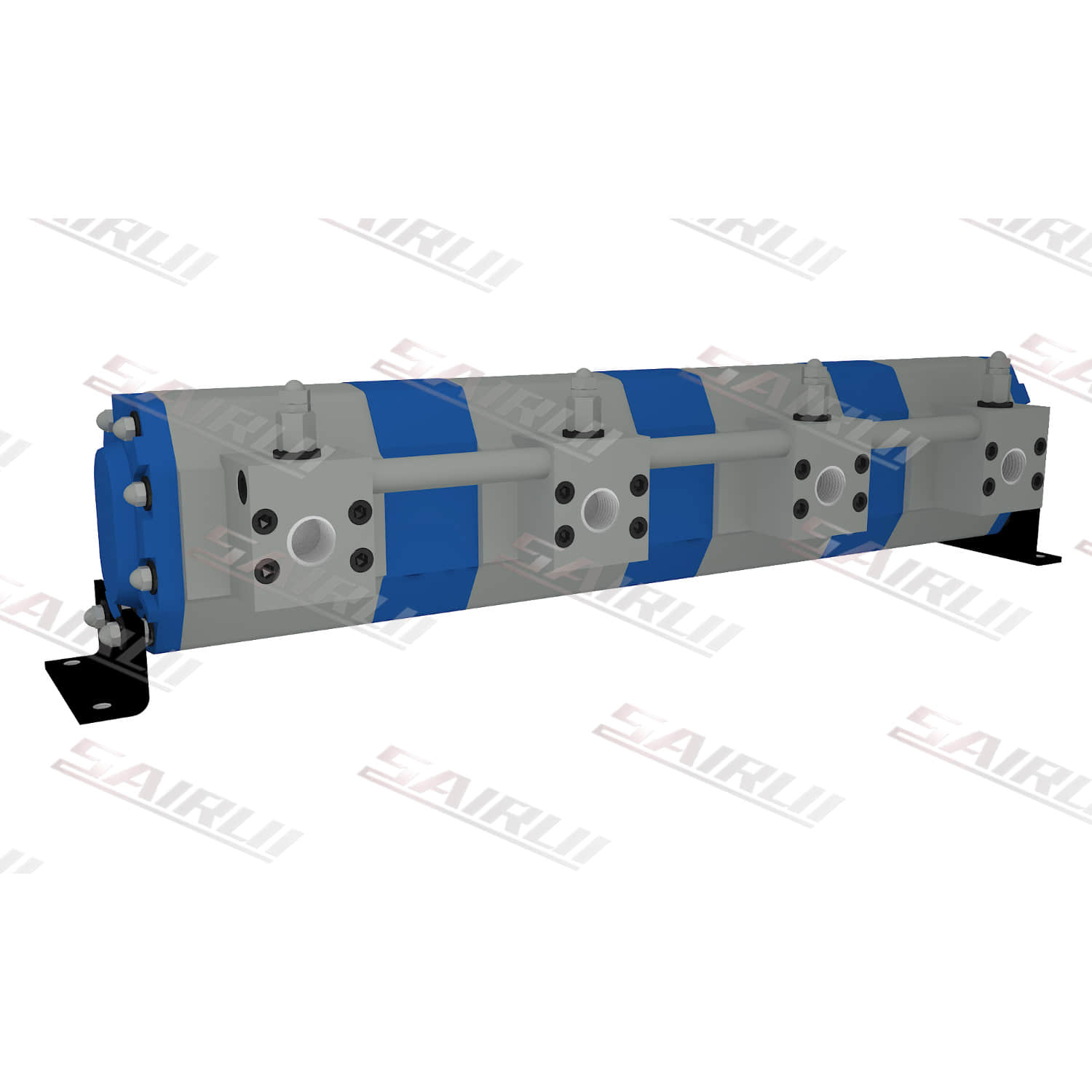

SRMD5 Synchronous Motor With Safety Valve

SRMD5 Synchronous Motor With Safety Valve

  • Single displacement: 15 displacement types are provided, including: 20mL/r, 25mL/r, 32mL/r, 40mL/r, 50mL/r, 63mL/r, 80mL/r, etc., which can be customized.

Purpose And Characteristics

① High strength aluminum alloy pump body, light weight, low noise;

② Alloy steel hard tooth surface transmission, long service life, stable performance;

③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;

④ This product is widely used in various machines that require synchronous action;

⑤ The working pressure of the synchronous motor should be higher than the load pressure.

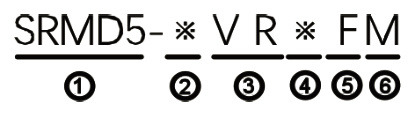

Model Description

SRMD5 Synchronous Motor With Safety Valve

① Product code

② Couplet number

③ With overflow valve

④ Single displacement (mL/r)

⑤ Pressure rating [E: 16MPa; F: 20MPa]

⑥ Thread type [M: metric thread; G: G thread]

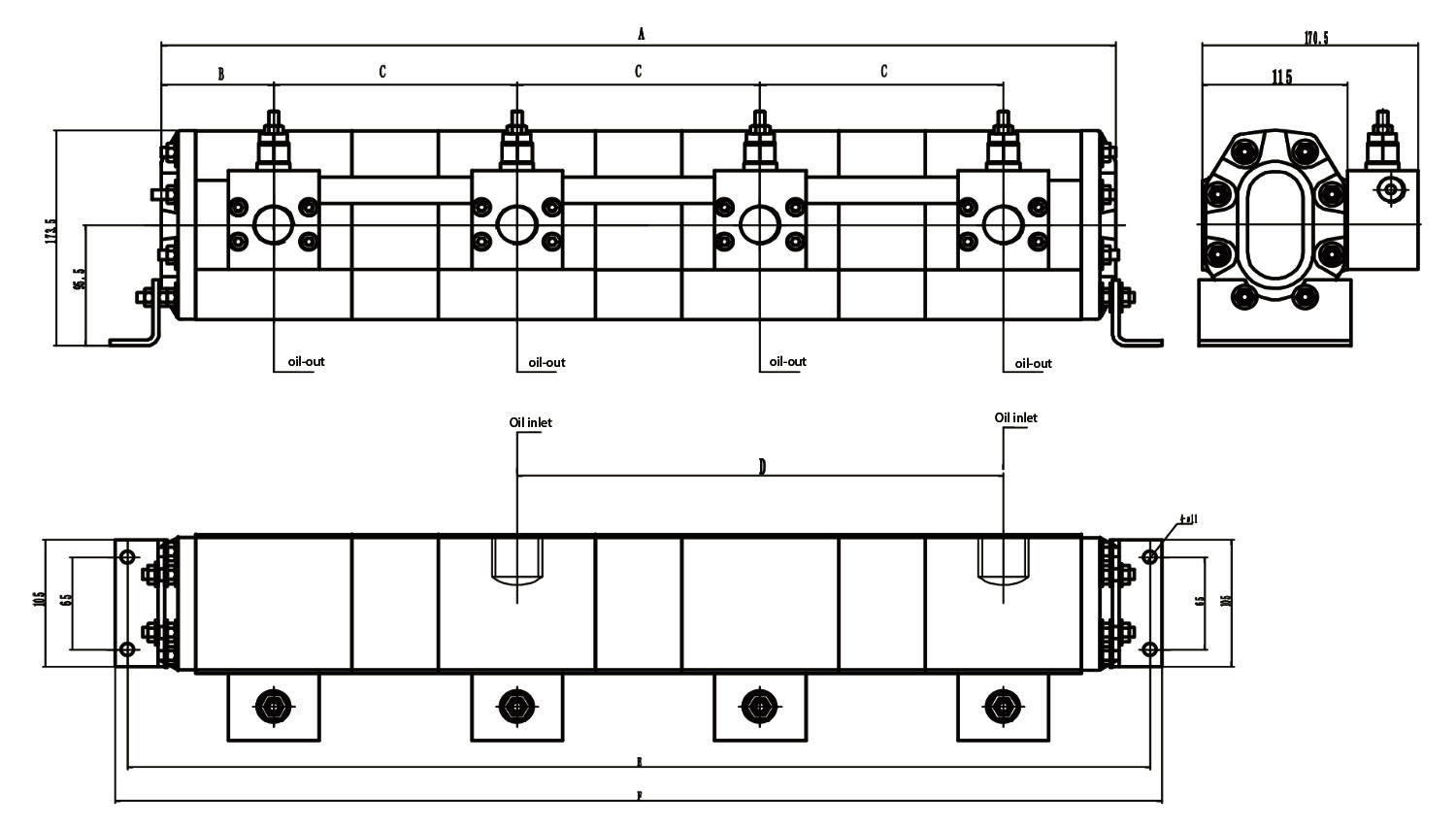

Outline Drawing

SRMD5 Synchronous Motor With Safety Valve

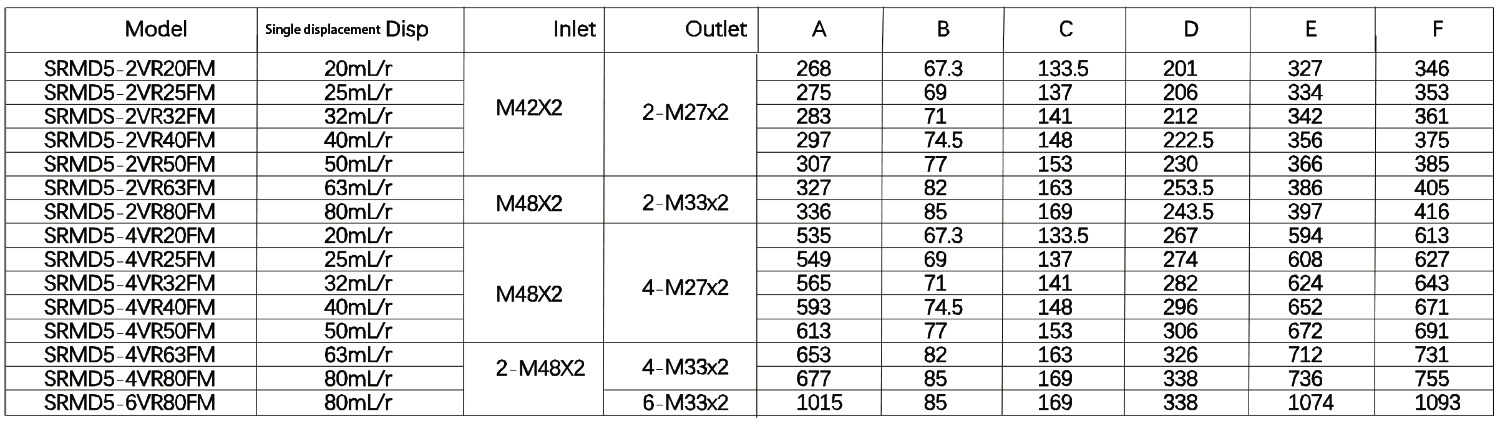

Performance Parameter

SRMD5 Synchronous Motor With Safety Valve
