SRMD5 Synchronous Shunt Motor
- Single displacement: 15 displacement types are provided, including: 20mL/r, 25mL/r, 32mL/r, 40mL/r, 50mL/r, 63mL/r, 80mL/r, etc., which can be customized.
Purpose And Characteristics
① High strength aluminum alloy pump body, light weight, low noise;
② Alloy steel hard tooth surface transmission, long service life, stable performance;
③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;
④ This product is widely used in various machines that require synchronous action;
⑤ The working pressure of the synchronous motor should be higher than the load pressure.

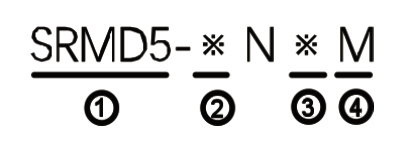

Model Description
① Product code
② Couplet number
③ Nominal displacement (mL/r)
④ Port type [M: metric thread; G: G thread]

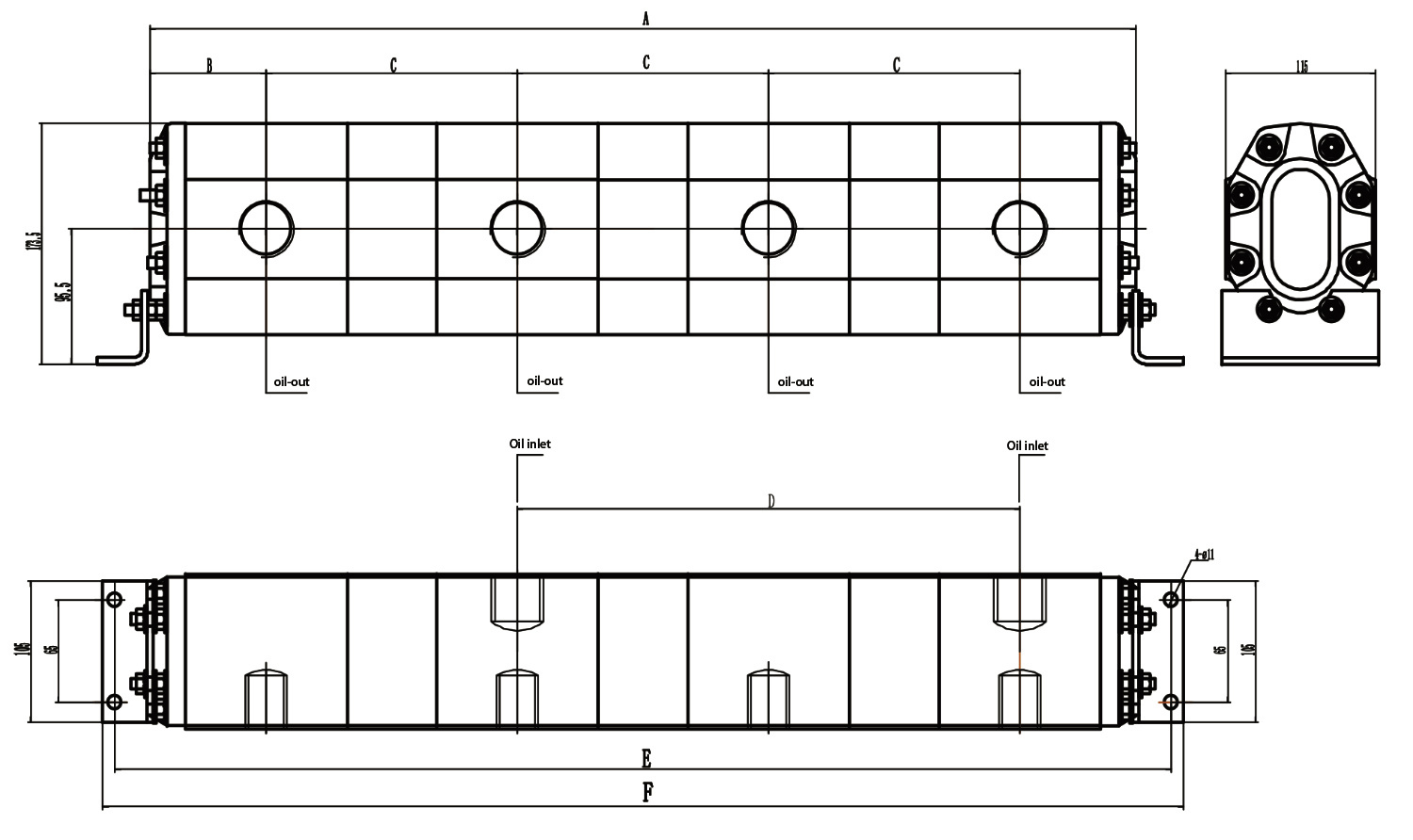

Outline Drawing

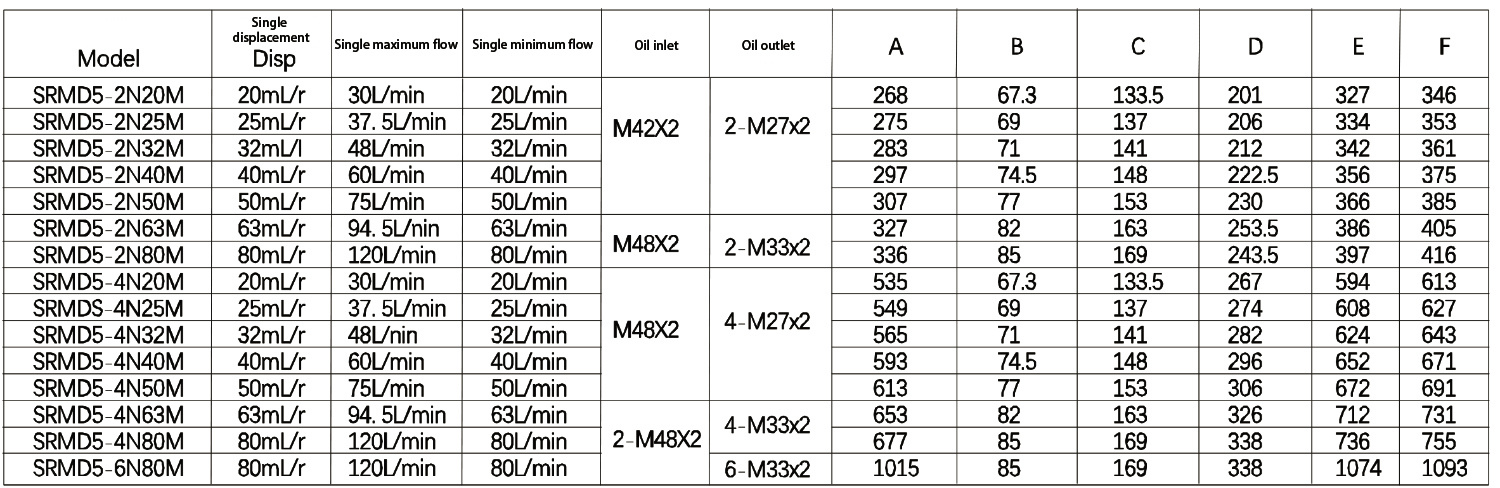

Performance Parameter
