SRMD6 Synchronous Shunt Motor
- Single displacement: 6 displacement types are available, including 100mL/r, 120mL/r, 140mL/r, 160mL/r, 180mL/r, and 200mL/r, which can be customized.
Purpose And Characteristics
① High strength aluminum alloy pump body, light weight, low noise;
② Alloy steel hard tooth surface transmission, long service life, stable performance;
③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;
④ This product is widely used in various hydraulic mechanical equipment that require synchronous action.

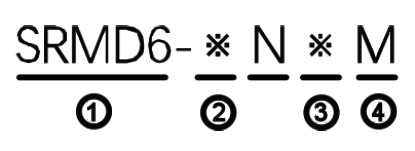

Model Description
① Product code
② Couplet number
③ Nominal displacement (mL/r)
④ Port type [M: metric thread; G: G thread]

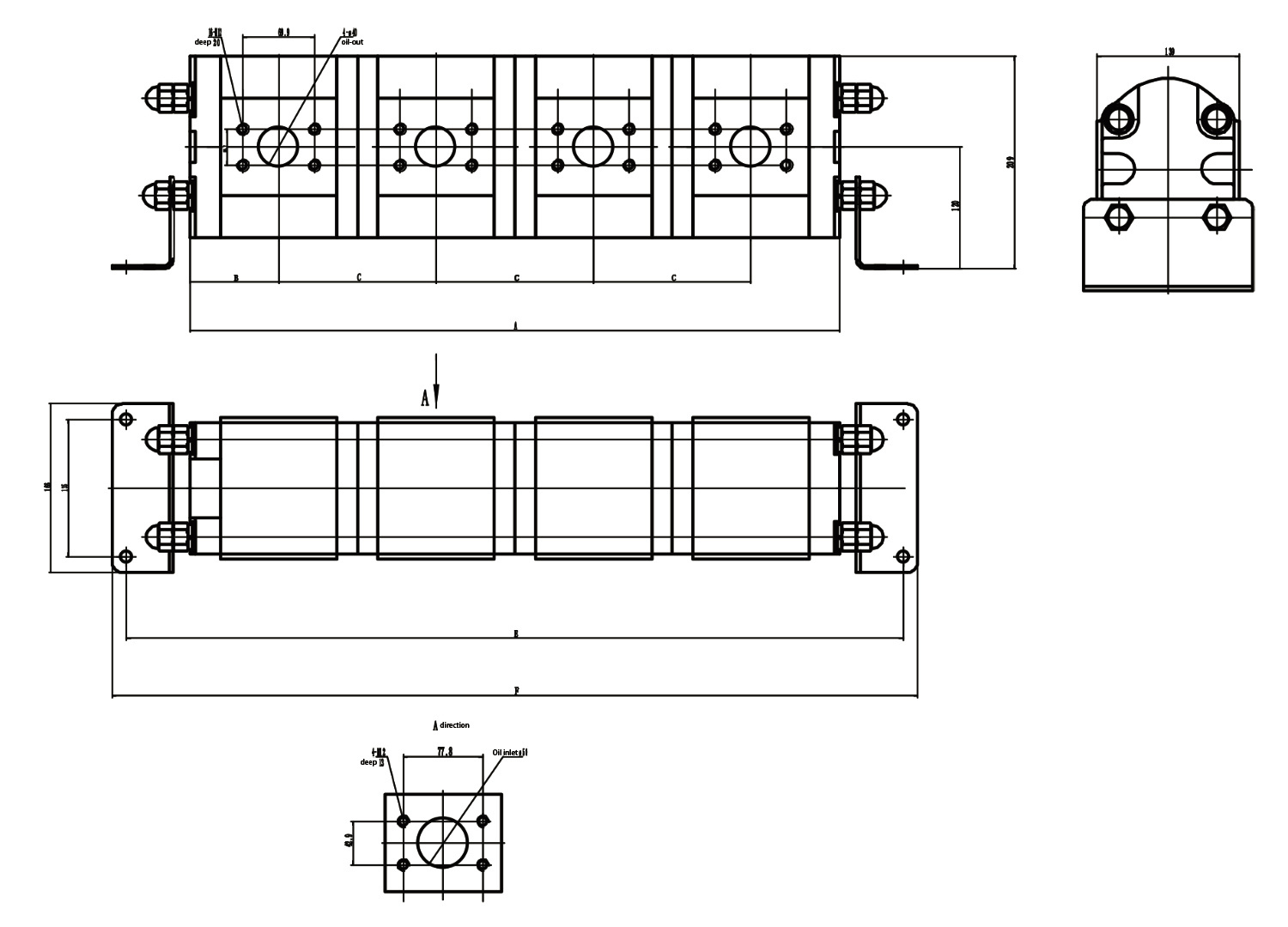

Outline Drawing
、

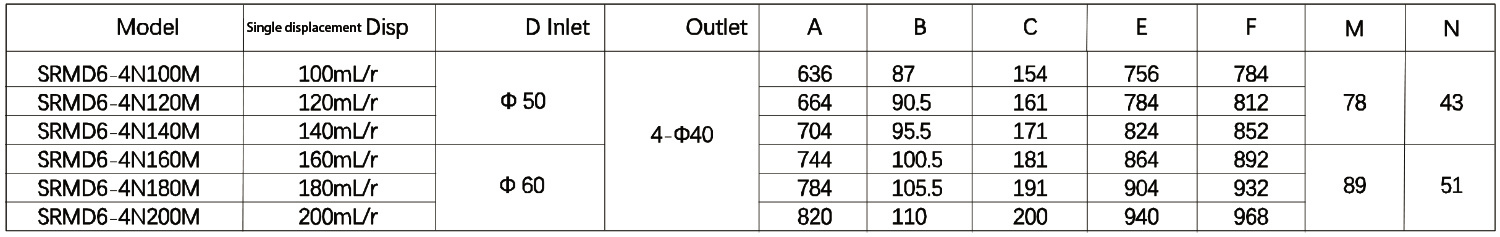

Performance Parameter
