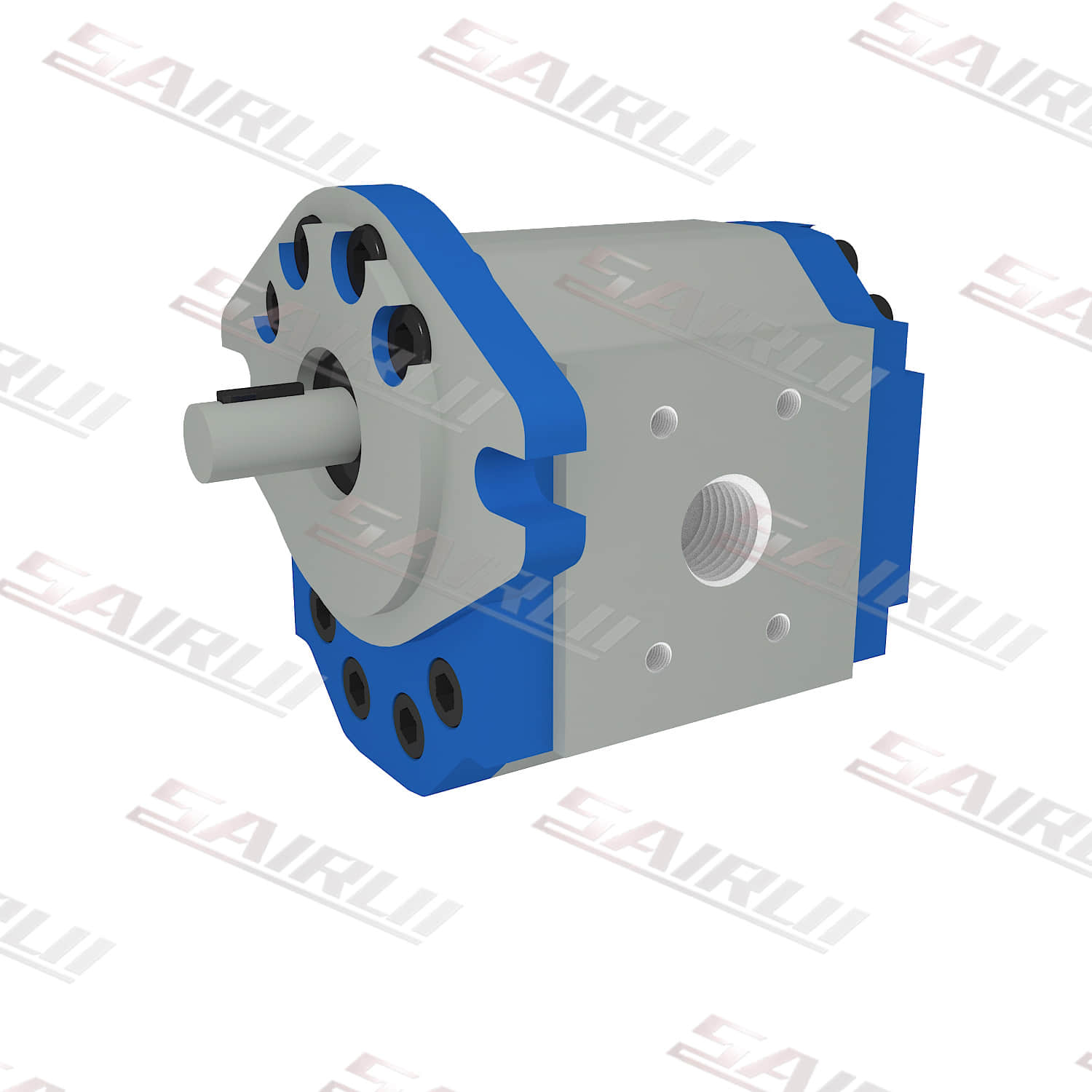

P23JF15G Gear Oil Pump

Purpose And Characteristics

① High strength aluminum alloy housing;

② The oil inlet and outlet can be selected in the following ways: rear in front out, side in side out, rear in rear out, etc;

③ Automatic axial clearance compensation mechanism enables the oil pump to maintain high volumetric efficiency for a long time;

④ Widely used in micro power unit hydraulic systems.

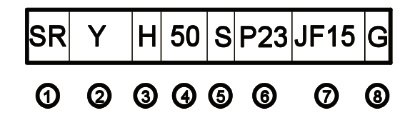

Model Description

① Company Code

② Classification code

③ Pressure rating [F: 20Mpa]

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left rotation; D: Dextral rotation

⑥ See Appendix for shaft extensions and flanges

⑦ See the appendix for the form of oil port

⑧ Front and rear cover material [G: cast iron]

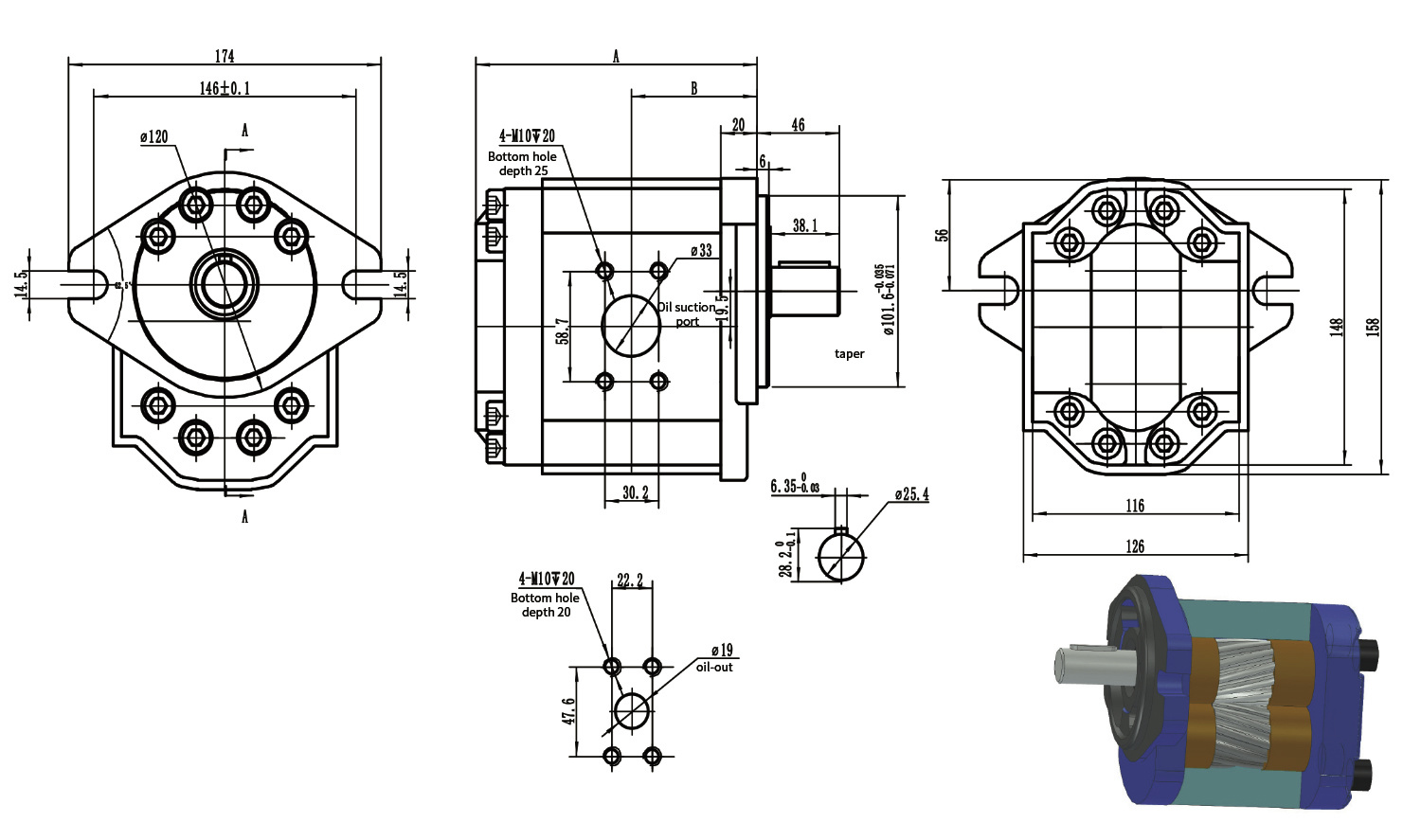

Outline Drawing

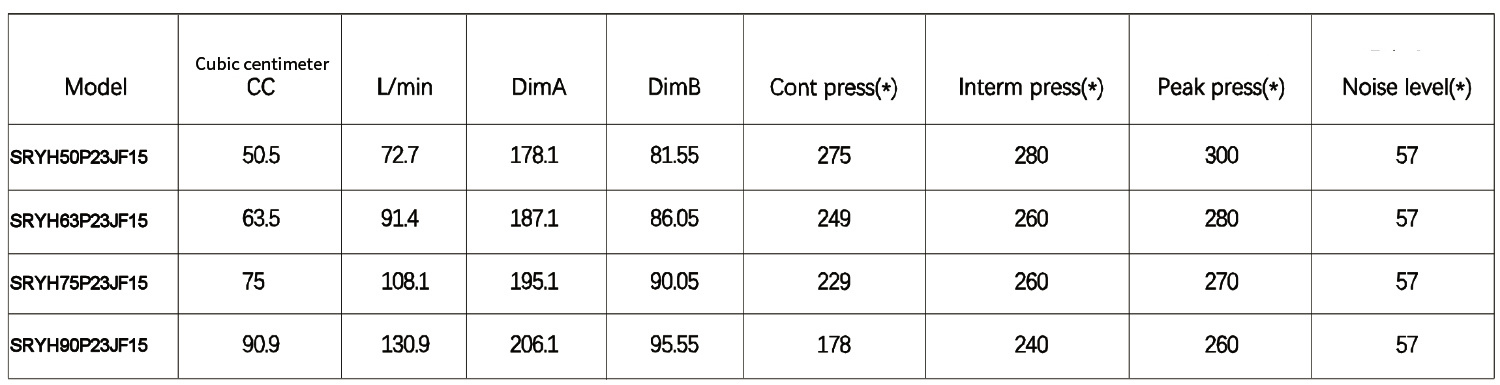

Performance Parameter
