P30 JF86GC Internal Leakage Gear Motor

P30 JF86GC Internal Leakage Gear Motor

  • Nominal displacement: Five displacement types are provided, namely: 20mL/r, 25mL/r, 32mL/r, 40mL/r, and 50mL/r, which can be customized.

Purpose And Characteristics

① High strength aluminum alloy pump body, light weight;

② Alloy steel hard tooth surface transmission, long service life, stable performance;

③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;

④ High working pressure, high volumetric efficiency, and large output torque;

⑤ Low output flow pulsation, stable motor operation, low noise.

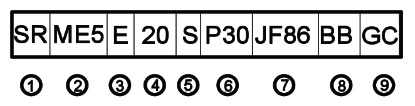

Model Description

P30 JF86GC Internal Leakage Gear Motor

① Company Code

② Classification code

③ Pressure rating [F: 20Mpa]

④ Nominal displacement (mL/r)

⑤ Rotation direction L: left rotation; R: Right handed S: bidirectional

⑥ See Appendix for shaft extensions and flanges

⑦ See the appendix for the form of oil port

⑧ Oil port location

⑨ Front cover rolling bearing [None: omitted, with rolling bearing: GC]

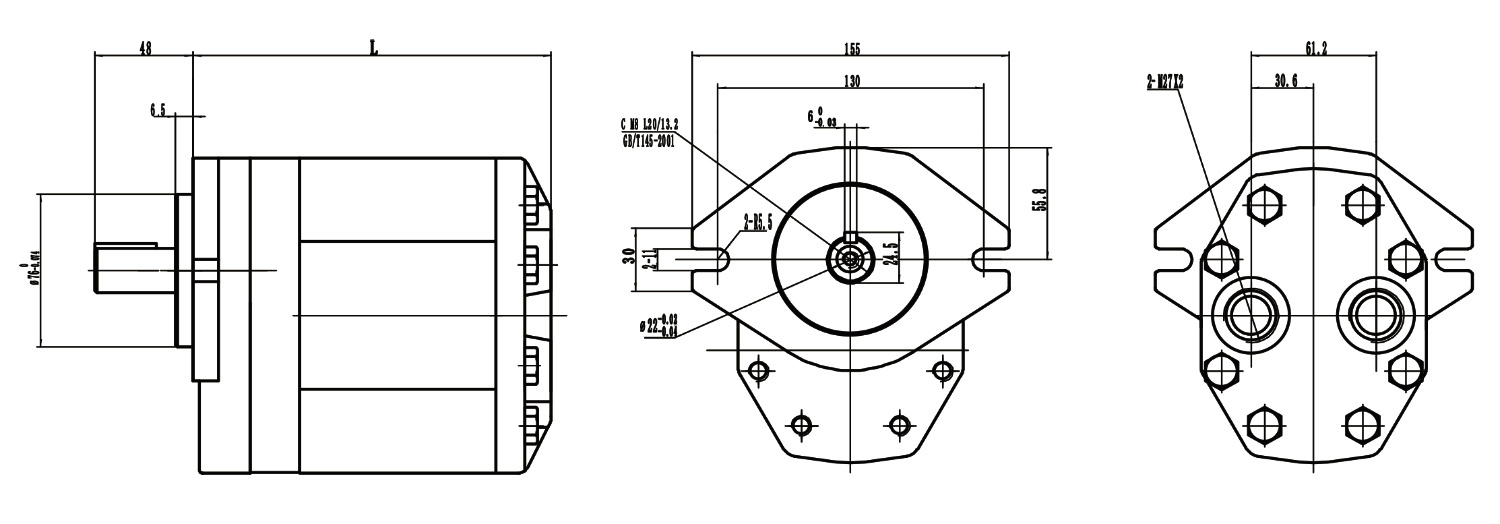

Outline Drawing

P30 JF86GC Internal Leakage Gear Motor

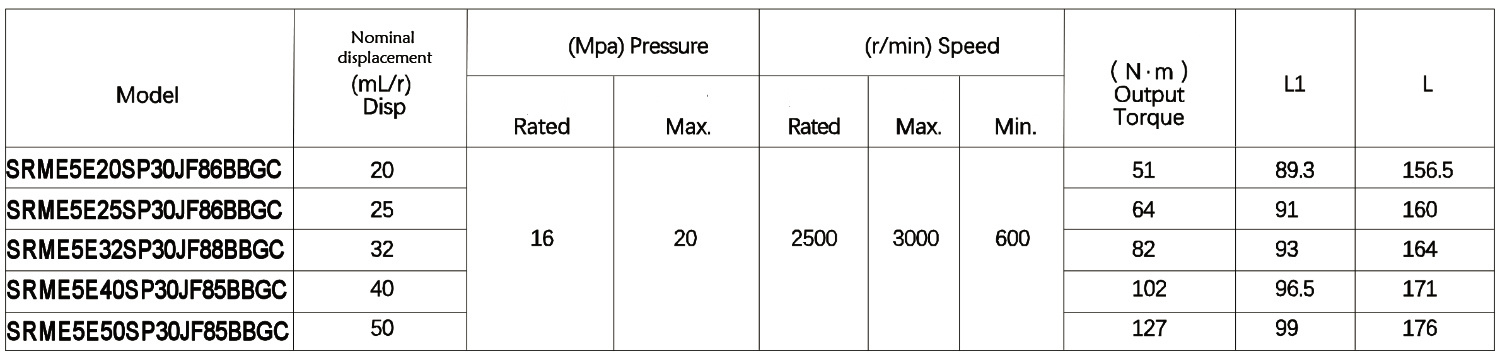

Performance Parameter

P30 JF86GC Internal Leakage Gear Motor
