G1H25P26-G1H25 Double Internal Gear Pump

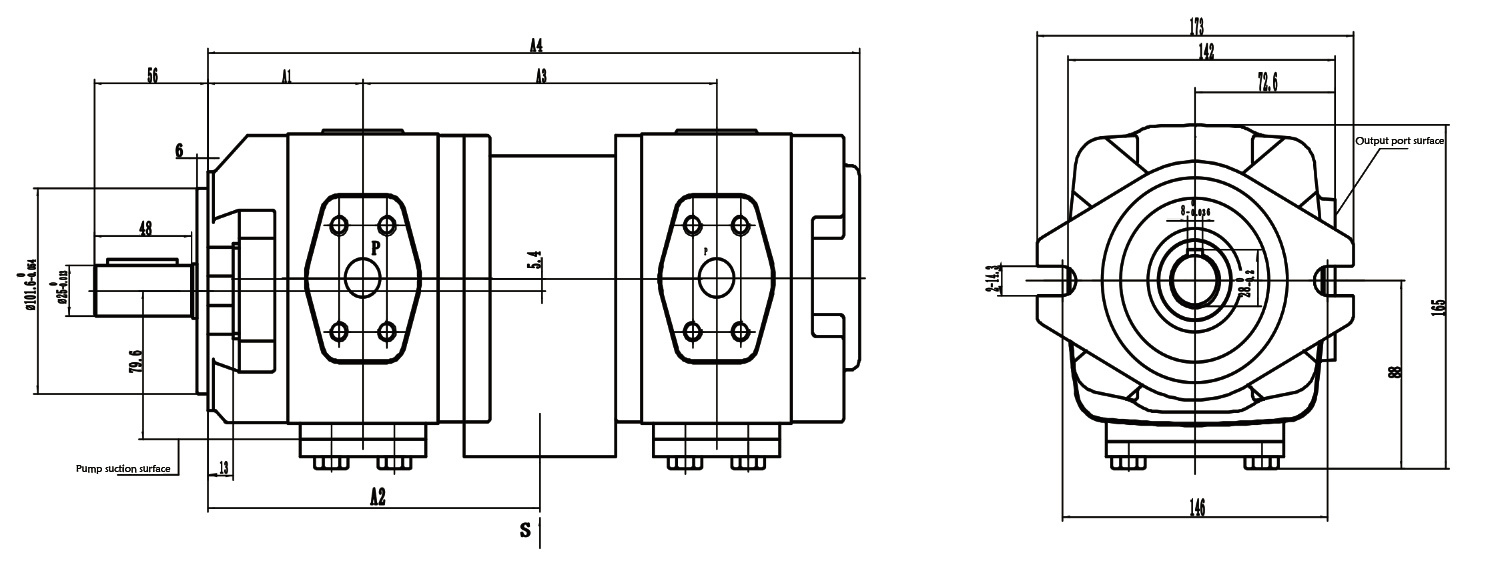

Outline Drawing

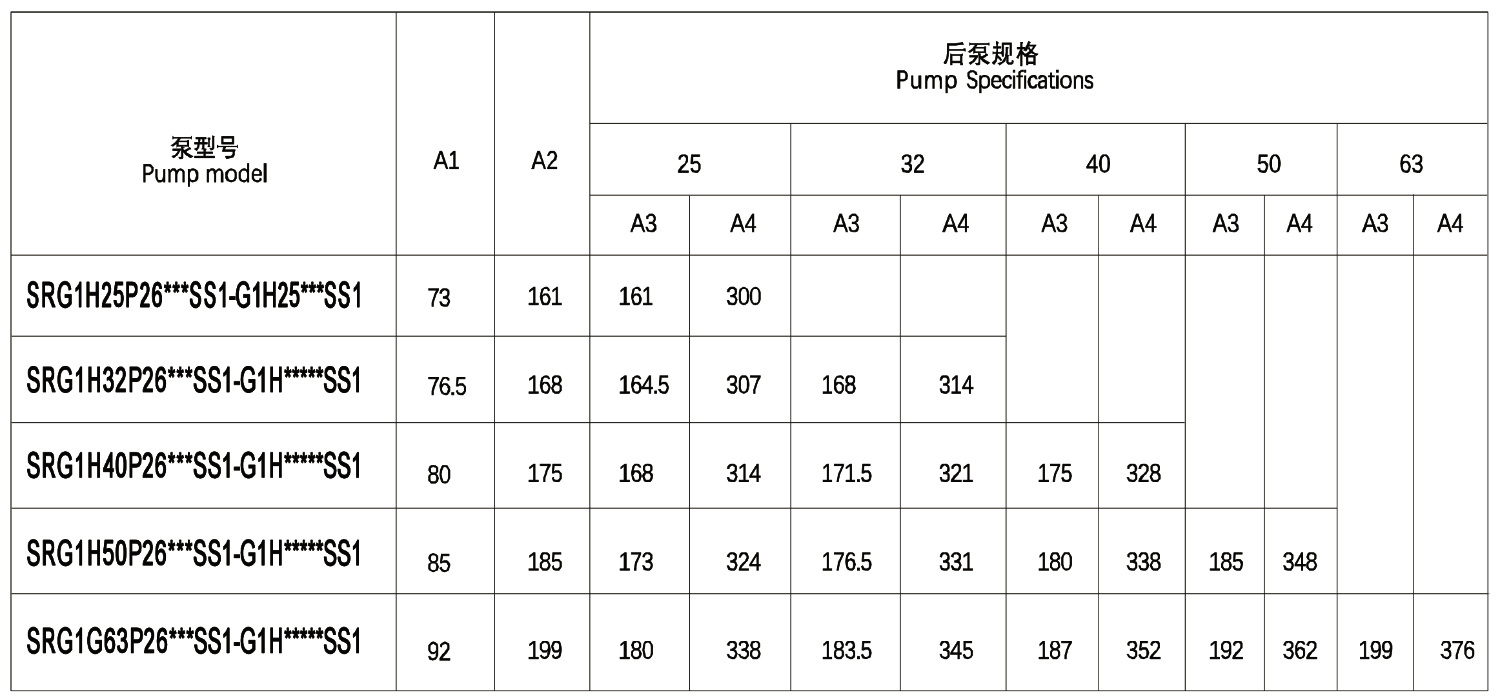

Performance Parameter

Product Appearance And Introduction

The dual pump is composed of two single pumps assembled in series, with a common oil inlet and two oil outlets that can be delivered to two independent circuits. According to the series combination of two pumps, a variety of displacement can be obtained.

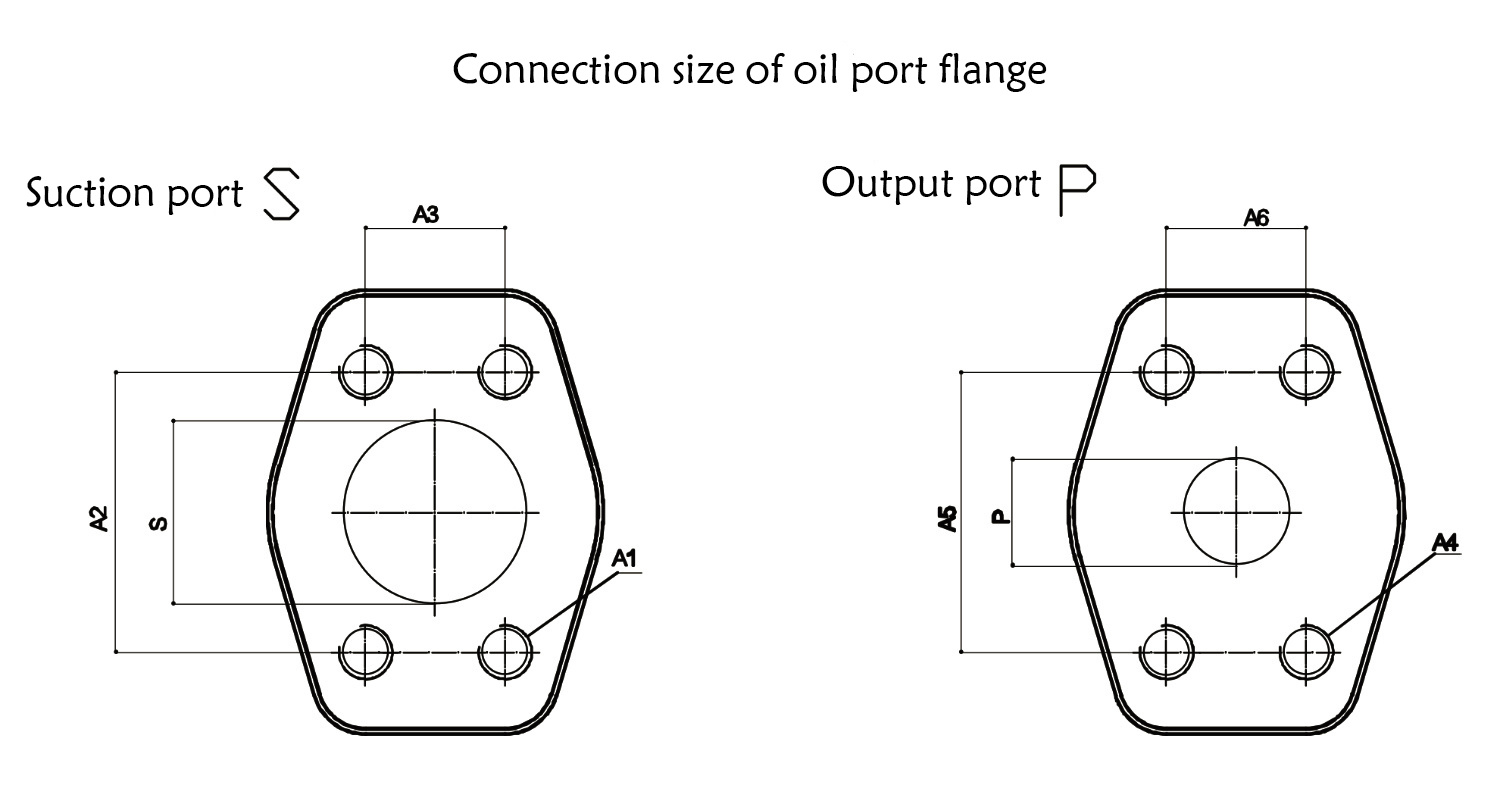

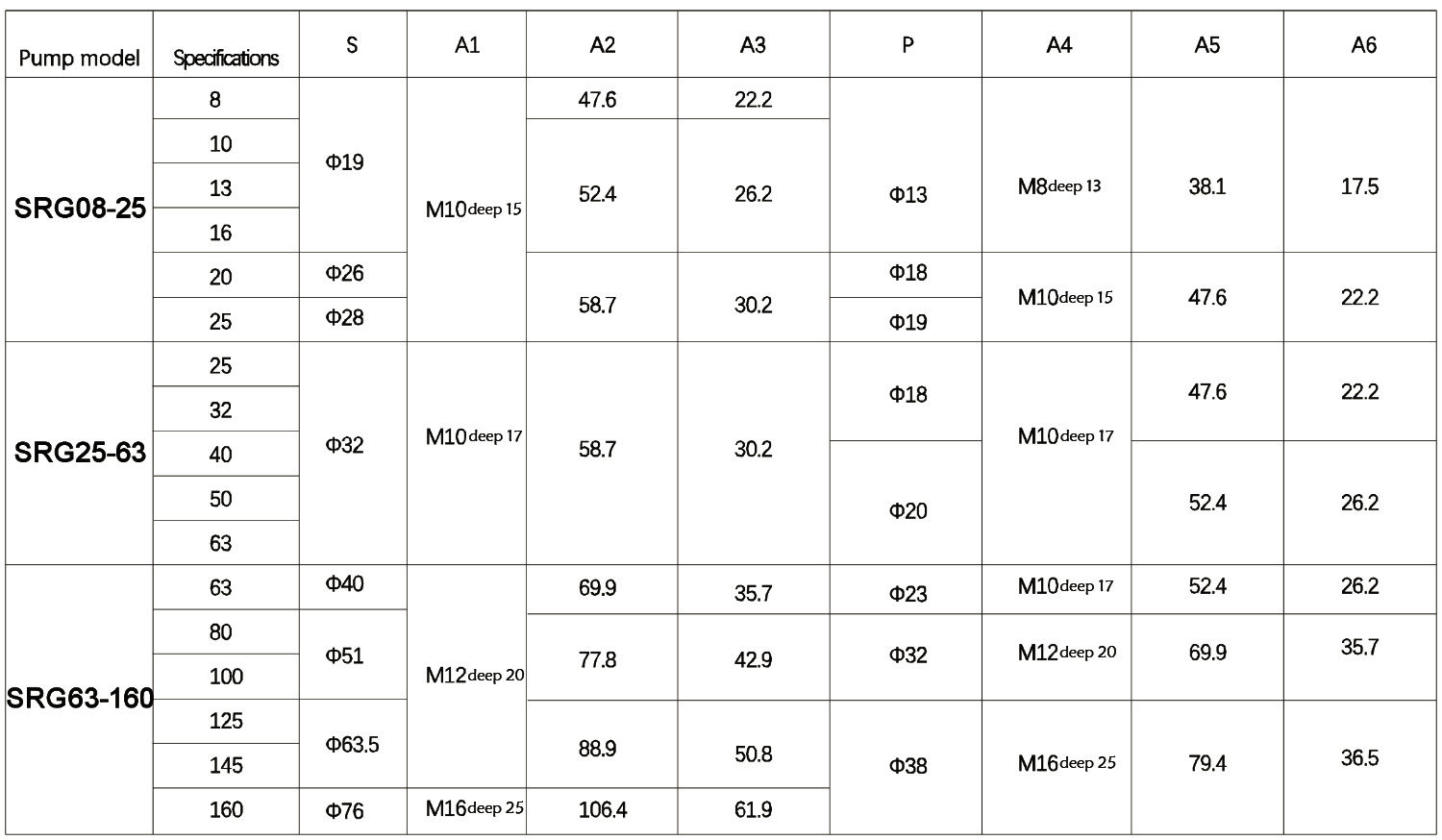

SRG Series Internal Gear Pump - Outline Drawing

Performance Parameter
