S10JF59 Internal Gear Pump

S10JF59 Internal Gear Pump

  • Internal Gear Pump

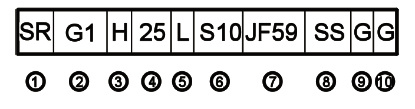

Model Description

S10JF59 Internal Gear Pump

① Company Code

② Classification code

③ Pressure rating [F: 20Mpa]

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left rotation; D: Dextral rotation

⑥ See Appendix for shaft extensions and flanges

⑦ See the appendix for the form of oil port

⑧ Front and rear cover material [G: cast iron]

⑨ Pump body material [G: cast iron]

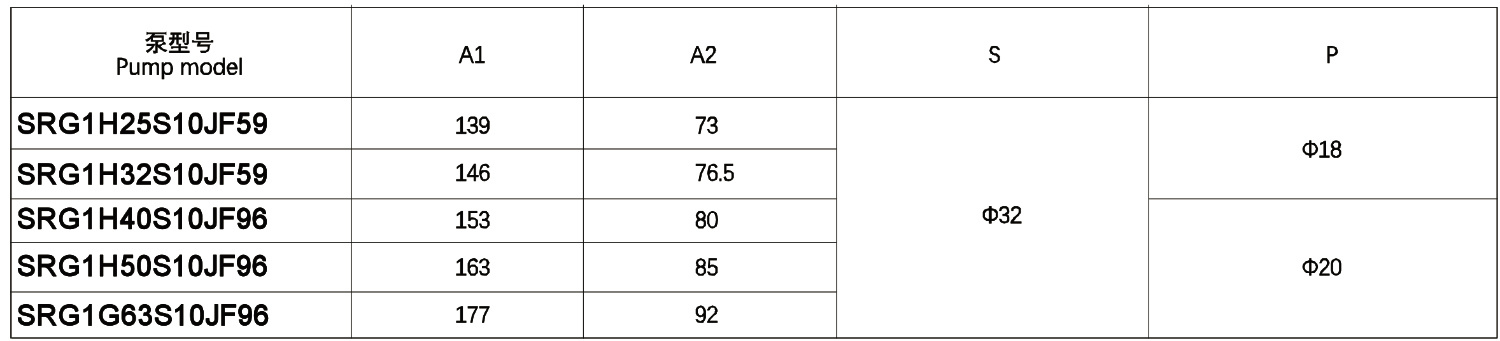

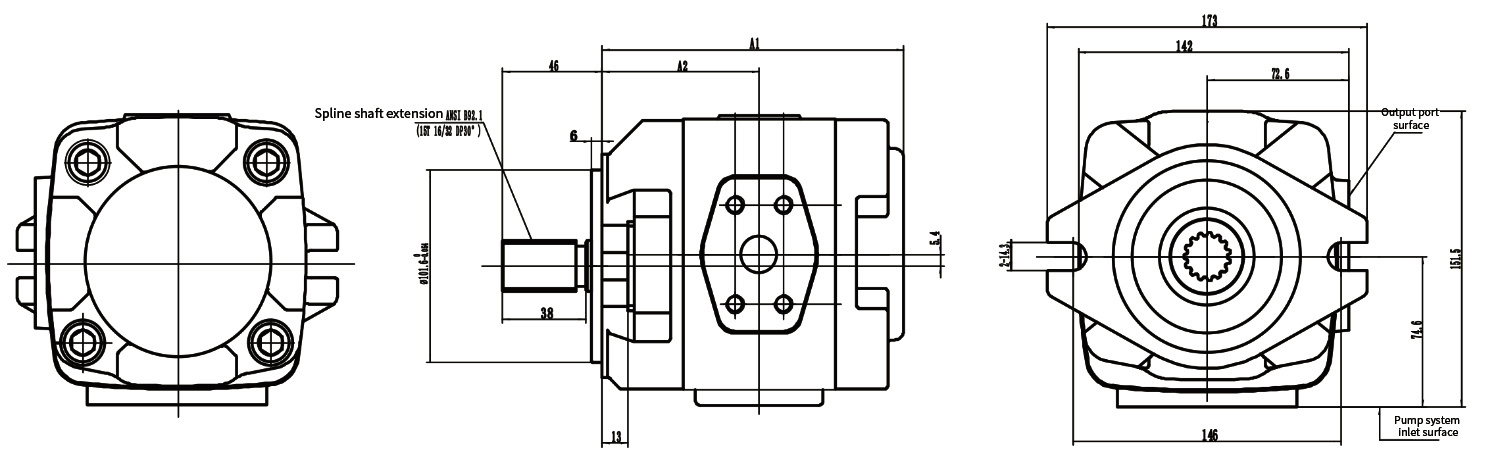

Outline Drawing

S10JF59 Internal Gear Pump

Performance Parameter

S10JF59 Internal Gear Pump
