P29 ML28GCW Outflow Gear Motor

Purpose And Characteristics

① High strength aluminum alloy pump body, light weight;

② Alloy steel hard tooth surface transmission, long service life, stable performance;

③ DU composite bearing and high-performance sealing element, small starting torque, good sealing performance;

④ High working pressure, high volumetric efficiency, and large output torque;

⑤ Low output flow pulsation, stable motor operation, low noise.

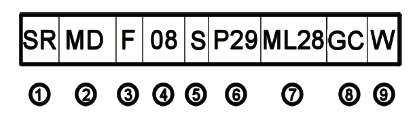

Model Description

① Company Code

② Classification code

③ Pressure rating [F: 20Mpa]

④ Nominal displacement (mL/r)

⑤ Rotation direction L: left rotation; R: Right handed S: bidirectional

⑥ See Appendix for shaft extensions and flanges

⑦ See the appendix for the form of oil port

⑧ Oil port location

⑨ Front cover rolling bearing [None: omitted, with rolling bearing: GC]

⑩ Oil drain port [internal leakage: omitted; external leakage: W]

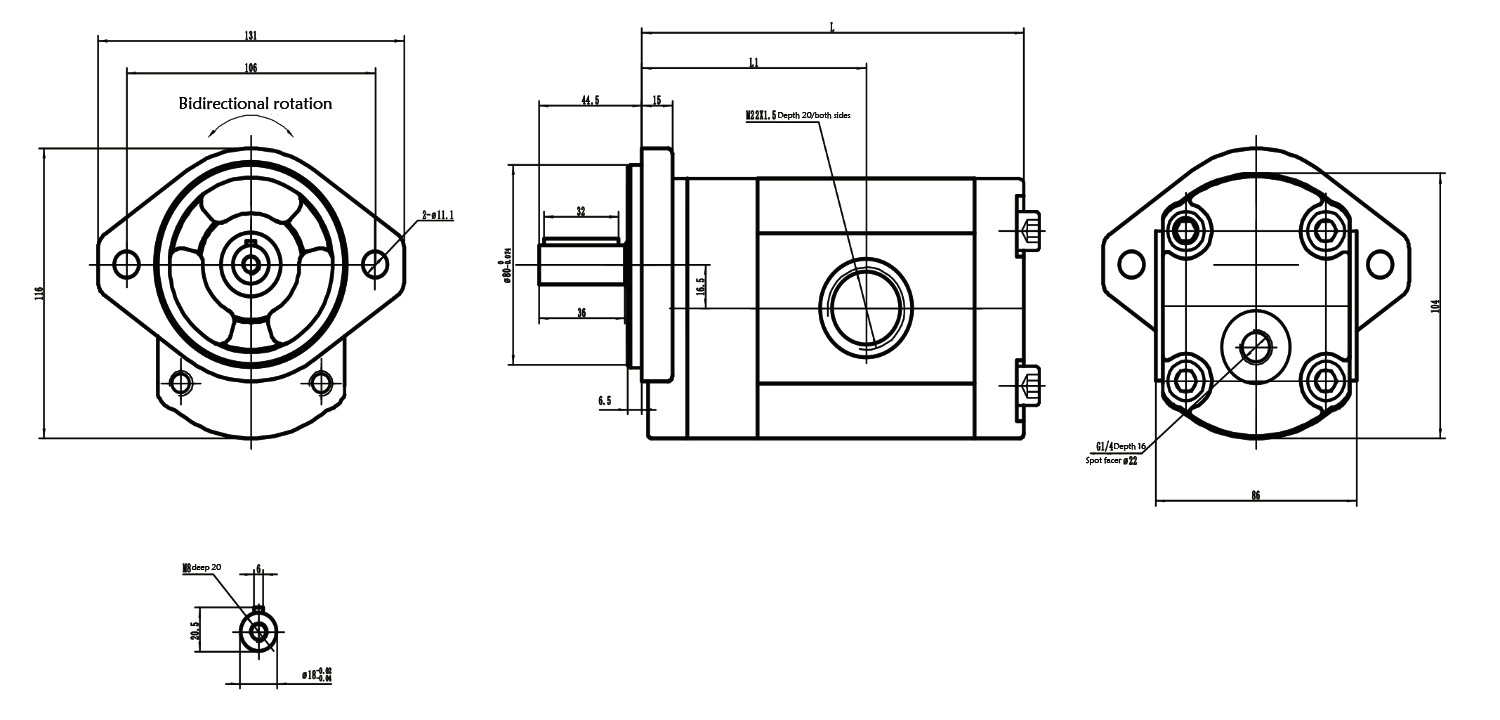

Outline Drawing

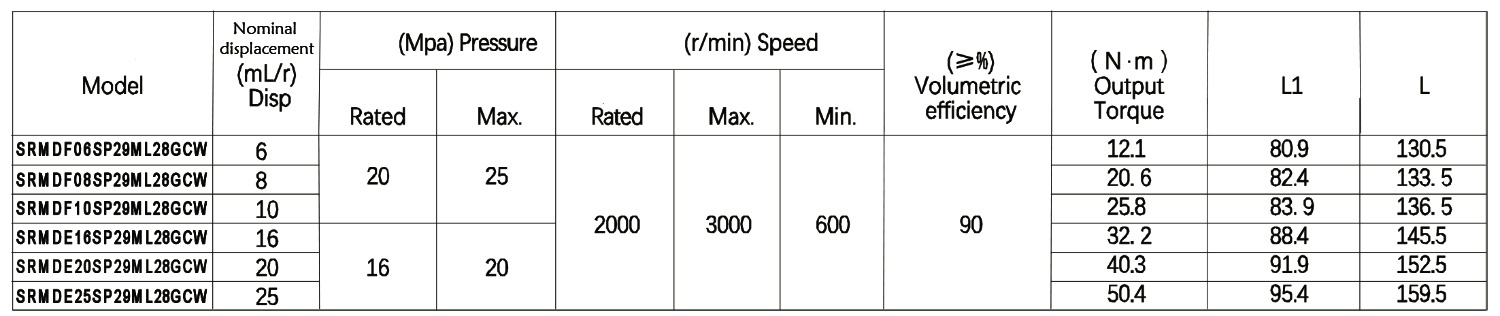

Performance Parameter
