HW-6/10/14/16M-3
- Nominal displacement: Four displacement options are available, namely: 6mL/r, 10mL/r, 14mL/r, and 16mL/r, which can be customized.
Purpose And Characteristics
① This series of gear pumps adopts aluminum alloy die-casting pump body, and the radial seal adopts tooth top seal;
② The axial seal adopts a floating pressure side plate. This pump has the characteristics of small volume, light weight, and high efficiency.

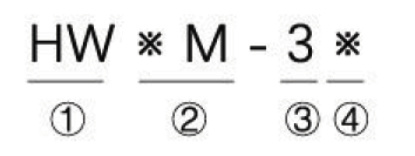

Model Description
① Product code
② Nominal displacement
③ Series
④ Rotation direction [R left rotation; L right rotation]

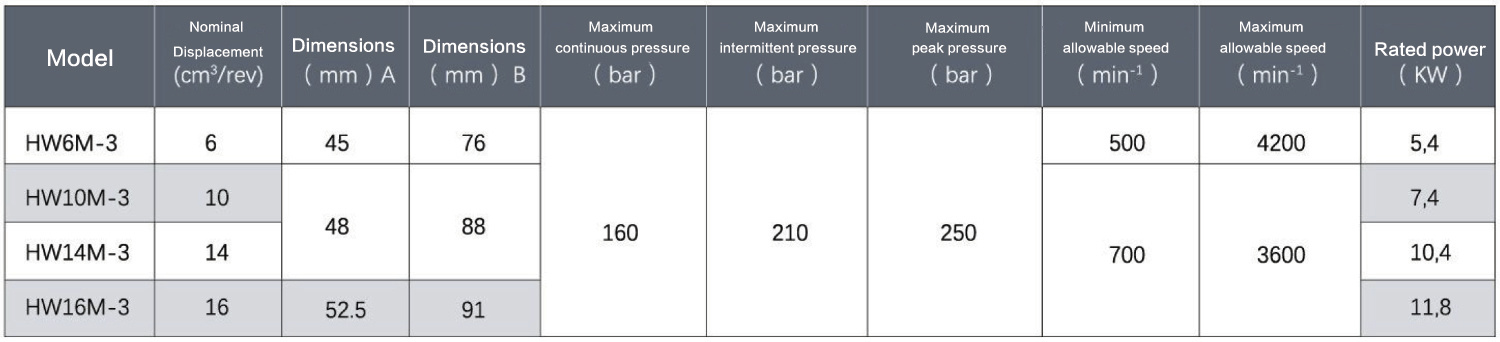

Performance Parameter
