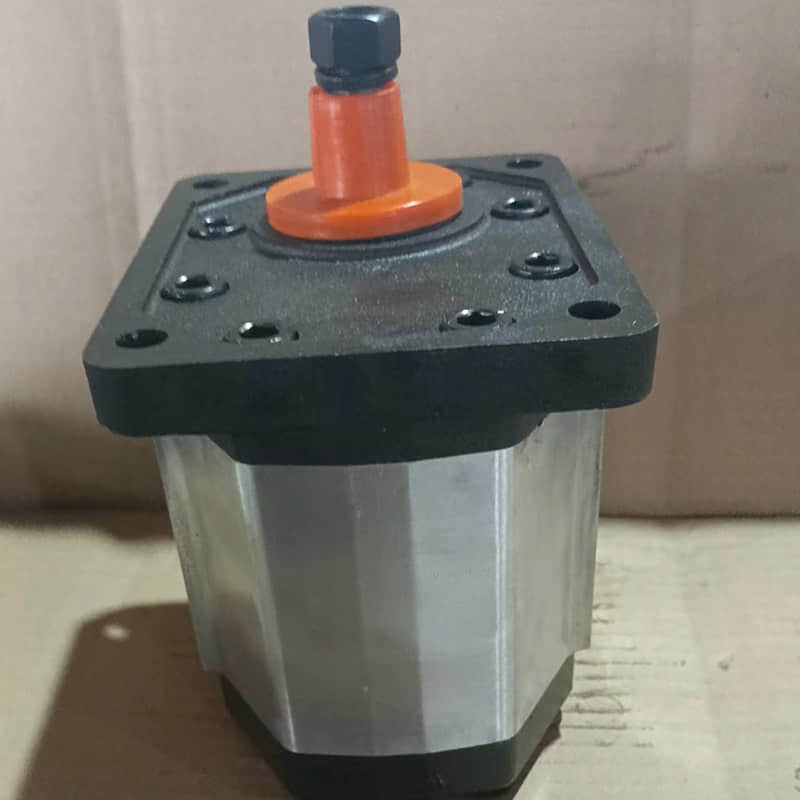

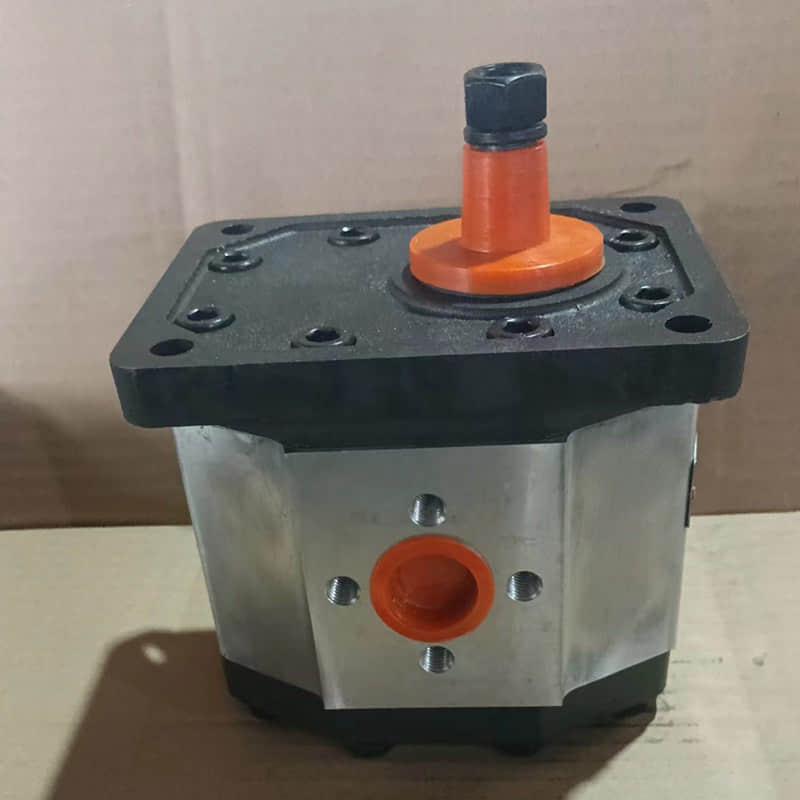

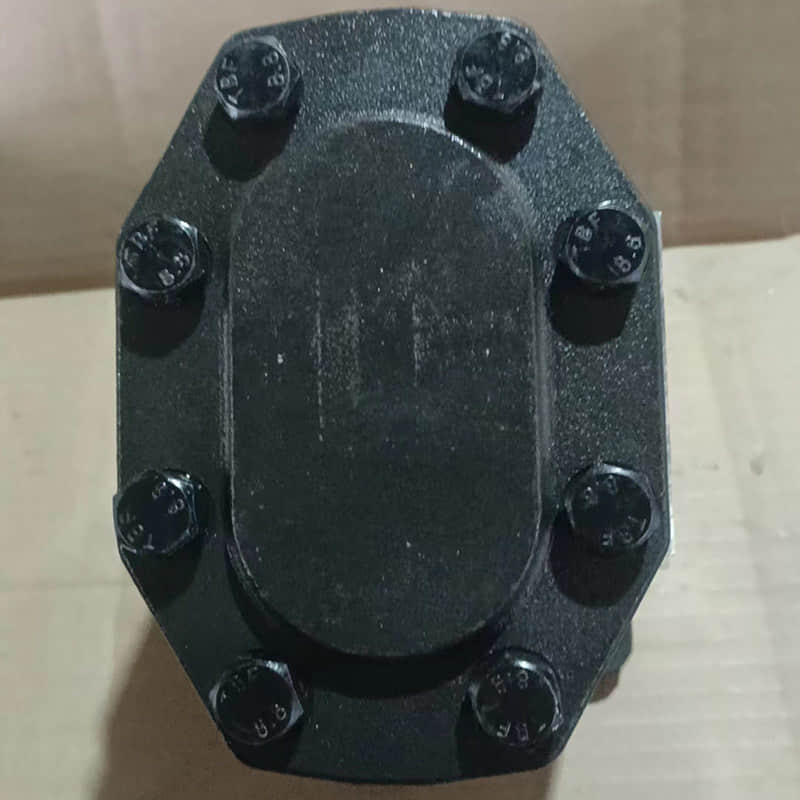

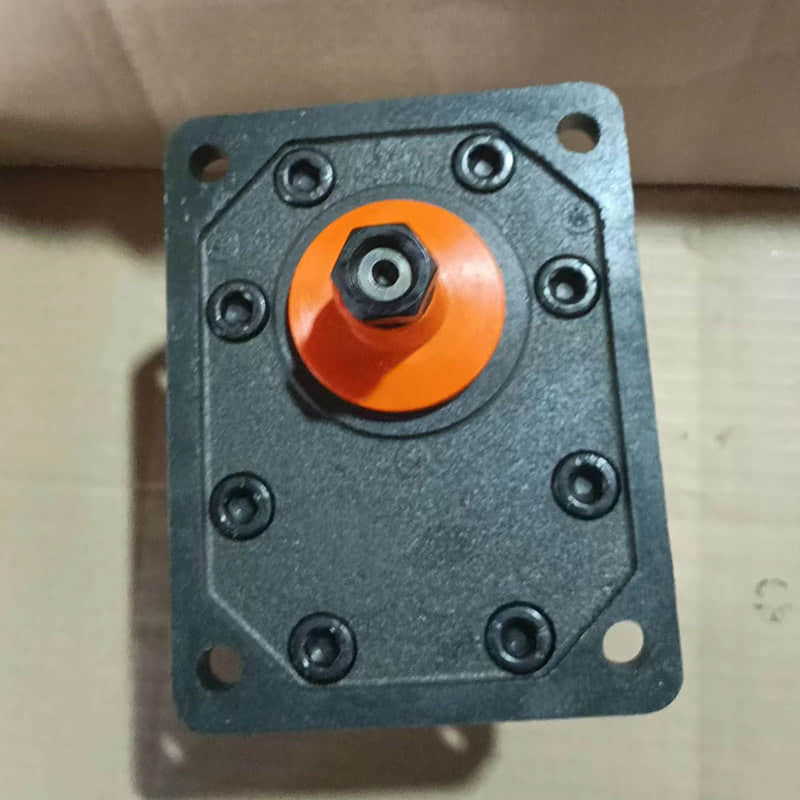

Mazuqi GHP3 Series Gear Pump
- Nominal displacement (front/rear pump): 10 displacements are provided: 06 mL/r、08mL/r、10mL/r、14mL/r、16mL/r、20mL/r、23mL/r、25mL/r、28mL/r、30mL/r,customizable.
Use And Characteristics
① High strength aluminum alloy pump body is light in weight and low in noise;
② Alloy steel hard tooth surface transmission has long service life and stable performance:
③ DU composite bearings and high-performance sealing elements have small starting torque and good sealing performance:
④ Product execution: JB/T7041-2006

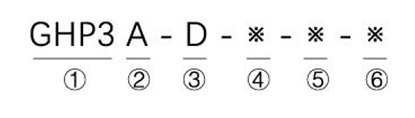

Model Description
① Product code
② Mounting
③ Nominal displacement(mL/r)
④ Rotation S:left, D:right
⑤ Shaft end
⑥ Flange type

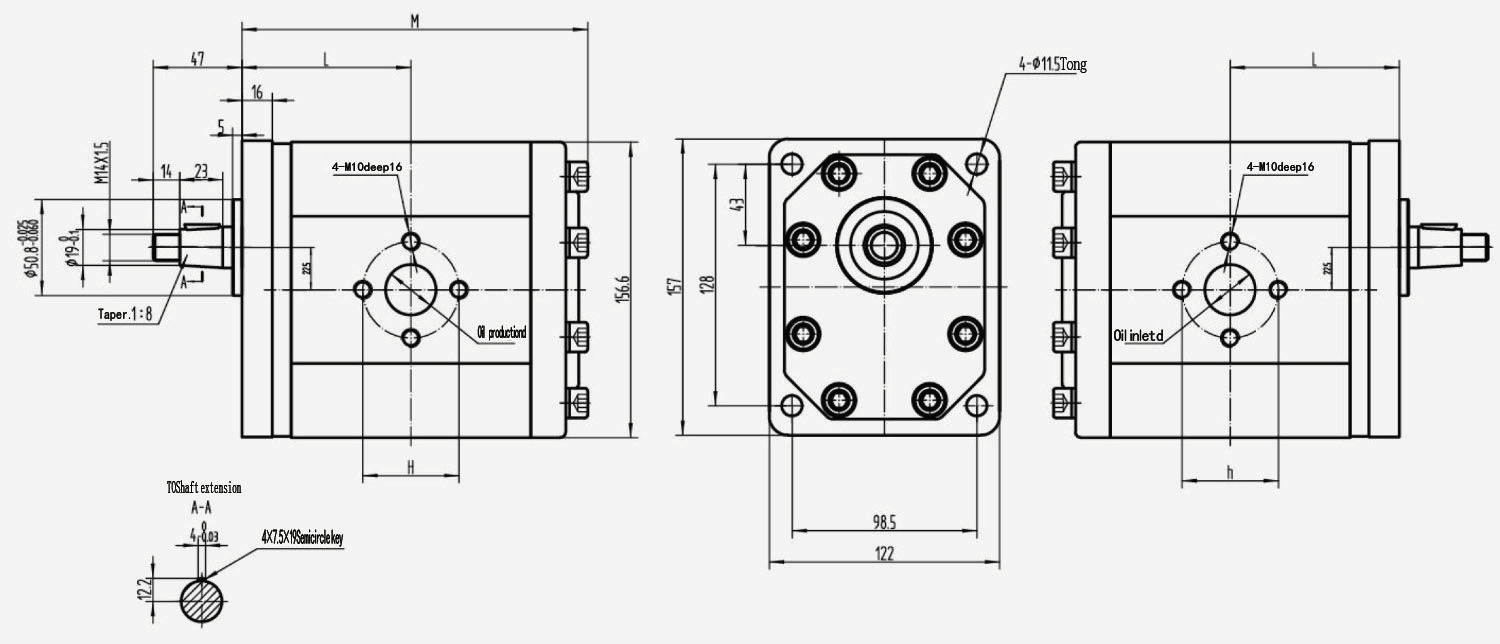

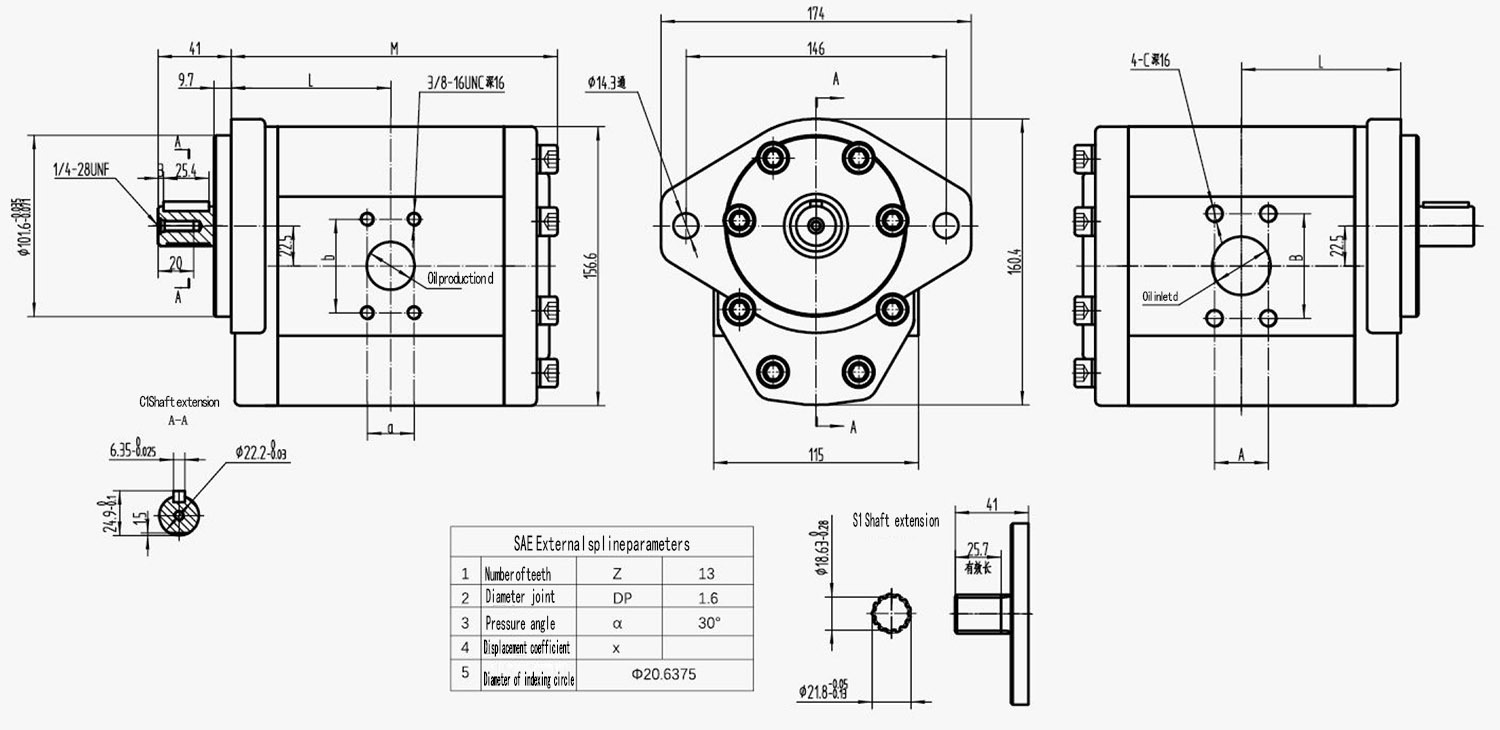

Outline Drawing

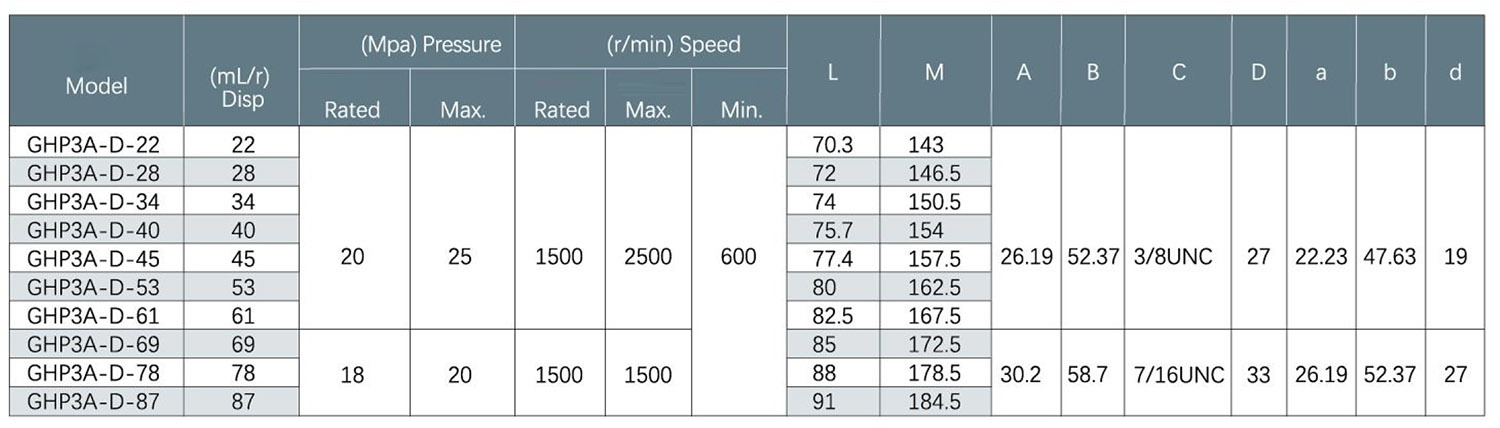

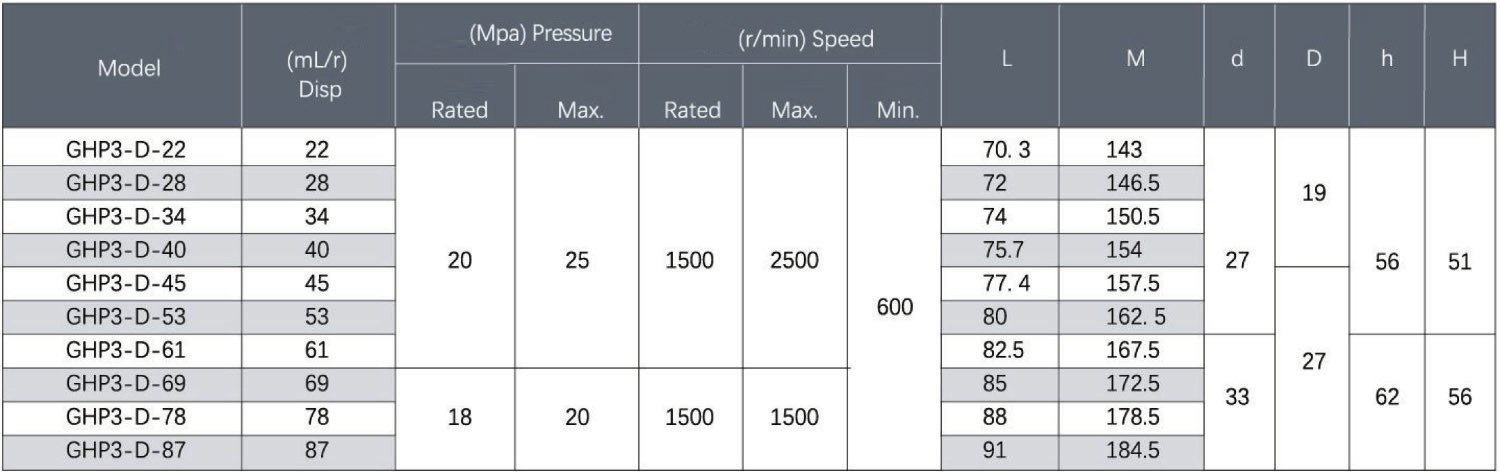

Performance Parameters
