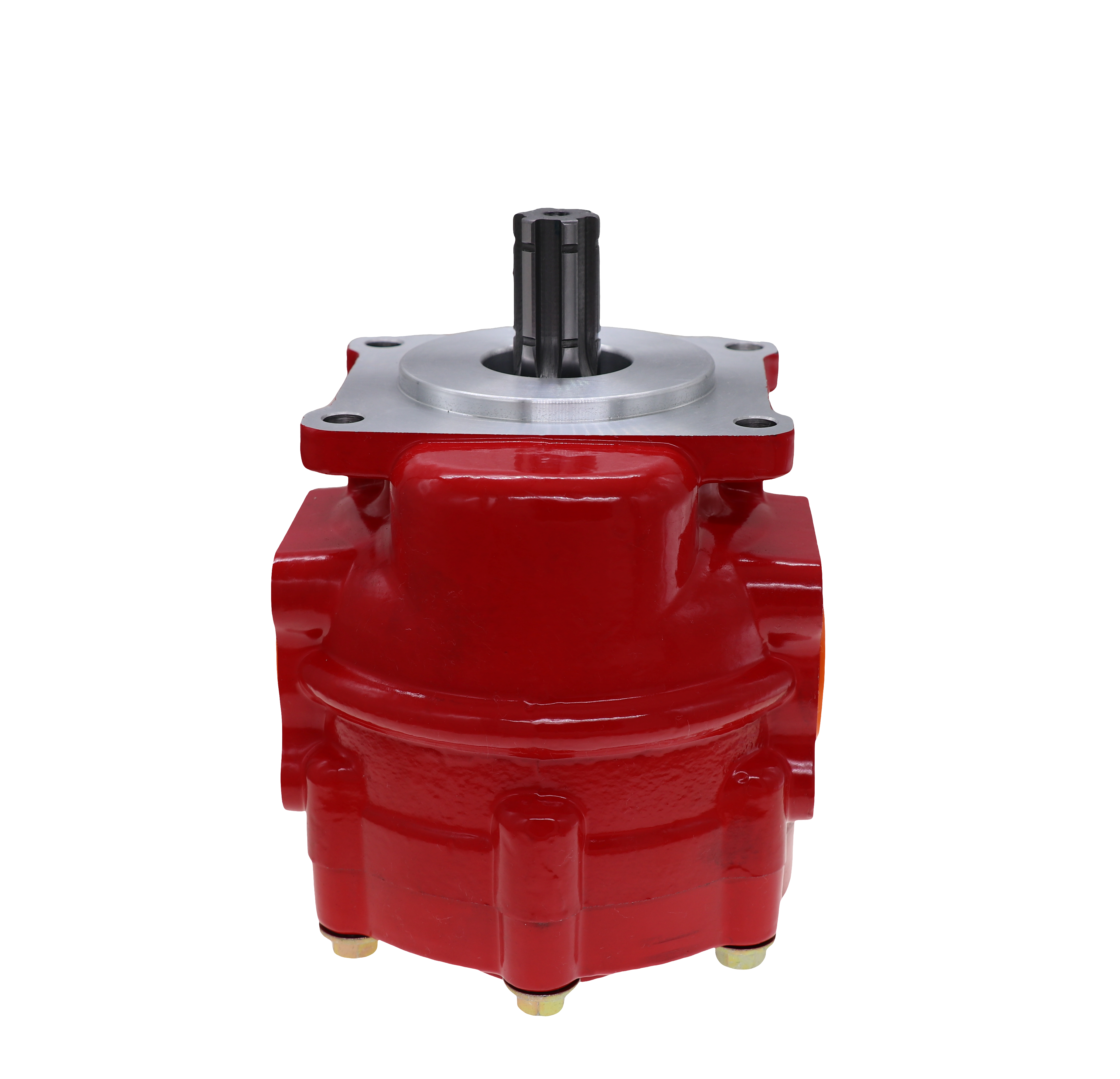

H16XF38 Gear Oil Pump
- Precise and detailed structural design enables the oil pump to have high volumetric efficiency and high mechanical efficiency; Lightweight, compact and refined structure, low noise; Wide application range.
Purpose And Characteristics
① High strength aluminum alloy housing;
② Lightweight, compact and refined structure, low noise;
③ Precise and detailed structural design enables the oil pump to have high volumetric efficiency and high mechanical efficiency;
④ Wide application range.

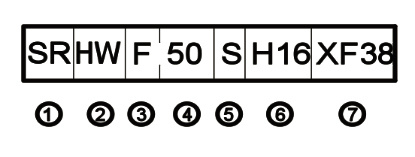

Model Description
① Company Code
② Classification code
③ Pressure rating (F: 20MPa)
④ Nominal displacement (mL/r)
⑤ Rotation direction S: left rotation; D: Dextral rotation
⑥ Shaft extensions and flanges [see appendix]
⑦ Oil port type [see appendix]
Outline Drawing
