P01 PL03 Gear Oil Pump
- Nominal displacement: 7 displacements are provided: 1mL/r、2mL/r、3mL/r、4mL/r、5mL/r、6mL/r、8mL/r，customizable.
Use And Characteristics
① High strength aluminum alloy shell;
② The connection form of input shaft is flat key rectangular spline involute spline;
③ The connection form of oil inlet and outlet has threaded flange for selection;
④ The axial clearance automatic compensation mechanism enables the oil pump to work with high efficiency;
⑤ High working pressure, wide rotating speed range and high volumetric efficiency when the low rotating speed reaches 600rpm

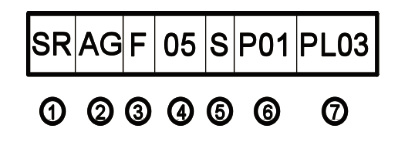

Model Description
① Code name
② Classification code
③ Pressure grade (F: 20MPa)
④ Nominal displacement (mL/r)
⑤ Rotation direction S: left-handed; D: Dextral
⑥ Axial extension and flange [see appendix]
⑦ Oil port form [see appendix]

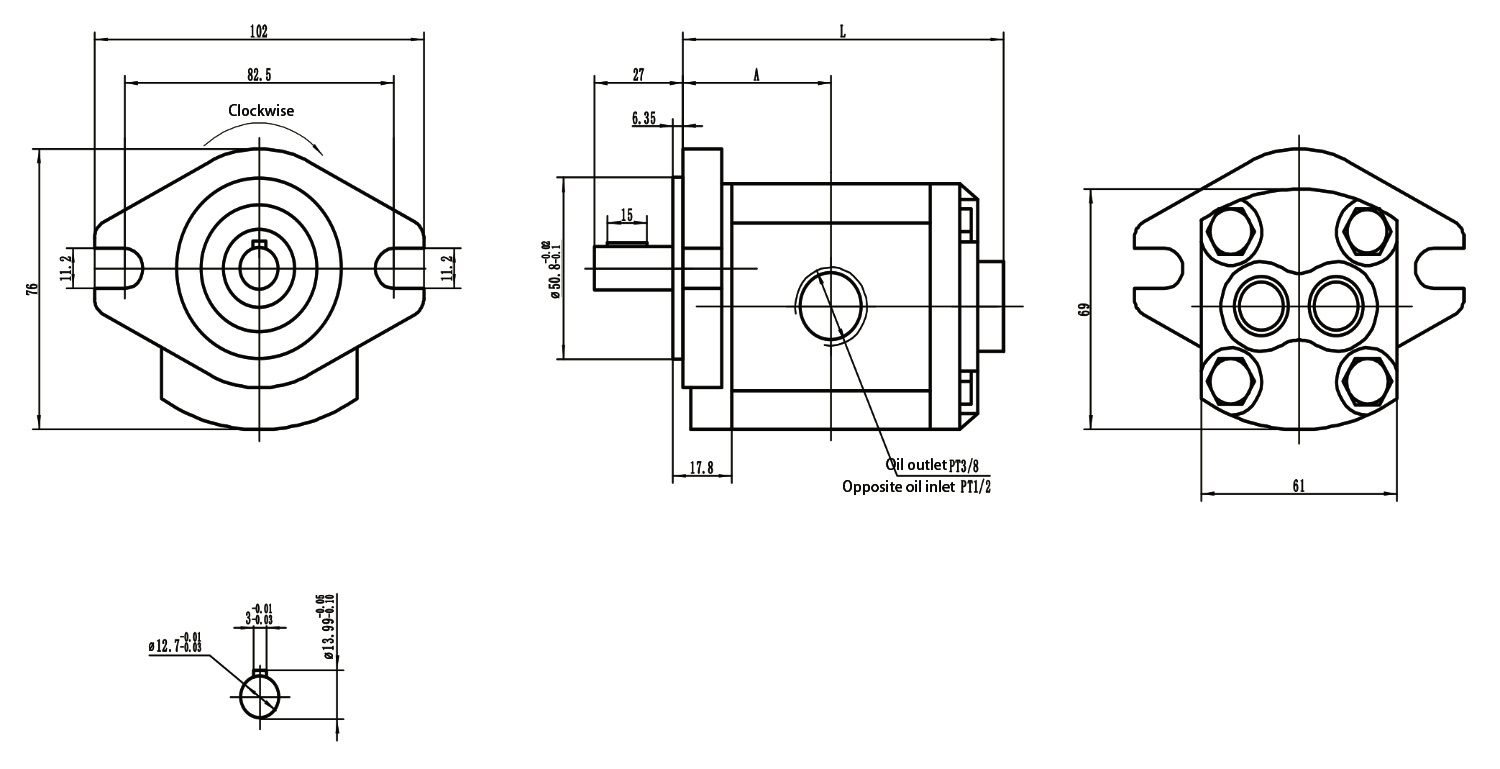

Outline Drawing

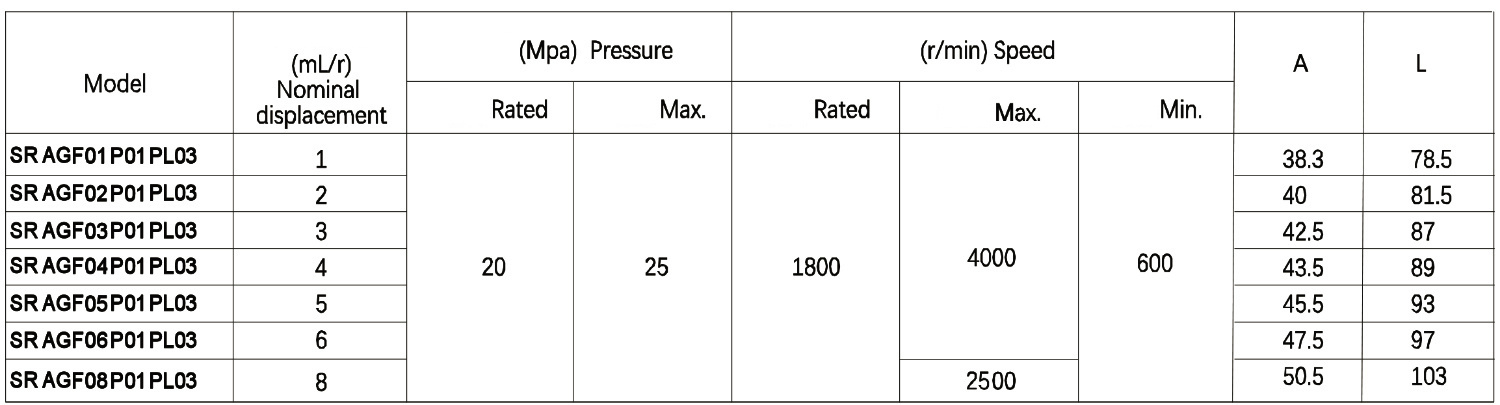

Performance Parameters
