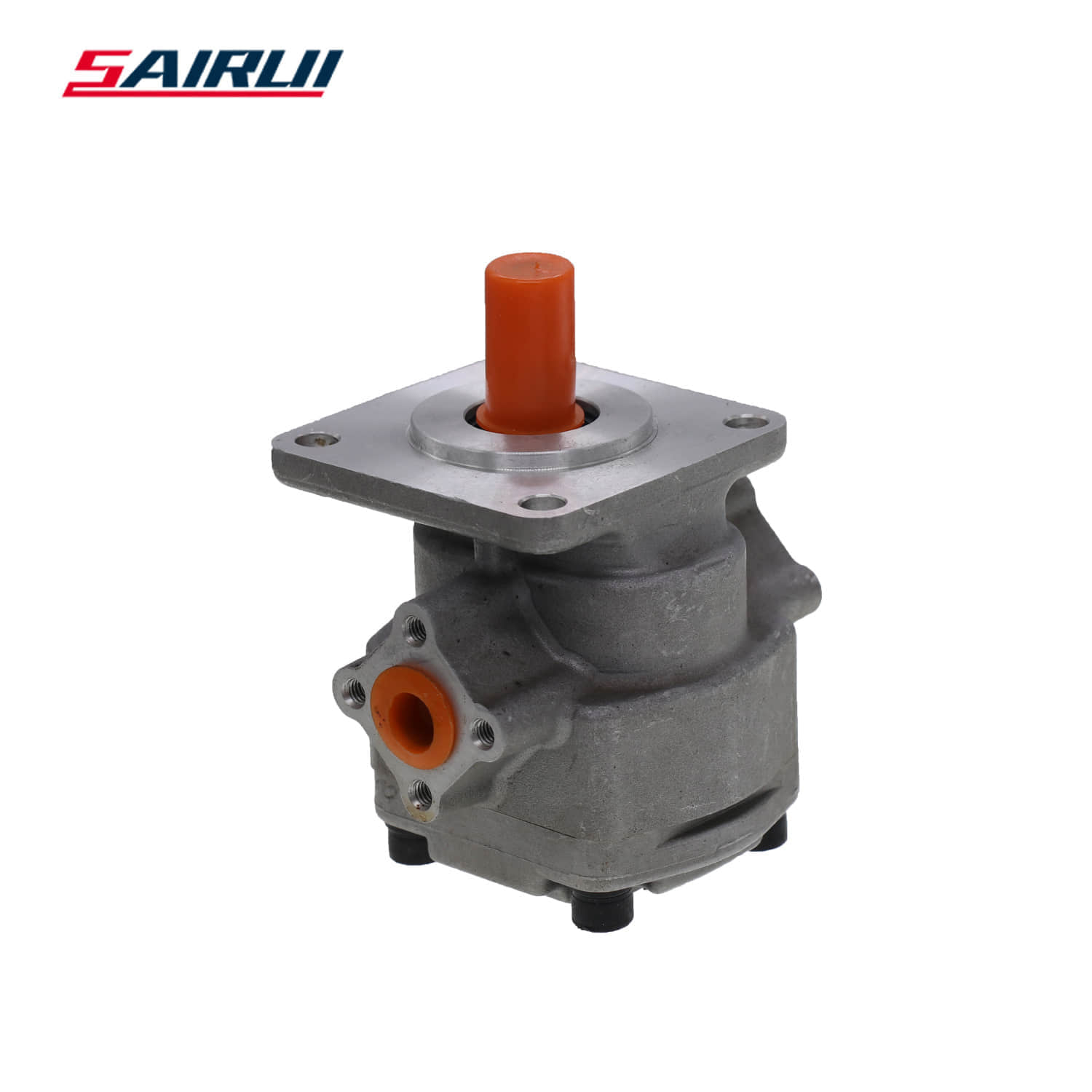

P09 SF19 Gear Oil Pump
- Nominal displacement (front/rear pump): Provide 8 displacement: 2mL/r、3mL/r、4mL/r、6mL/r、7.5mL/r、9mL/r、10.5mL/r、12mL/ r,customizable.
Use and characteristics
① The pump body adopts aluminum alloy high-precision modeling design with low noise;
② Light weight, compact and delicate structure;
③ Accurate and meticulous structural design makes the oil pump have high volumetric efficiency and high mechanical efficiency;
④ High working pressure and wide application range can be combined with low pressure and large flow vane pump as high and low pressure pump, reasonable utilization of main energy and cost saving.

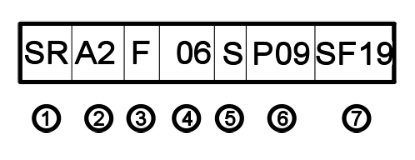

Model Description
① Code name
② Classification code
③ Pressure grade (F: 20MPa)
④ Nominal displacement (mL/r)
⑤ Rotation direction S: left-handed; D: Dextral
⑥ Axial extension and flange [see appendix]
⑦ Oil port form [see appendix]

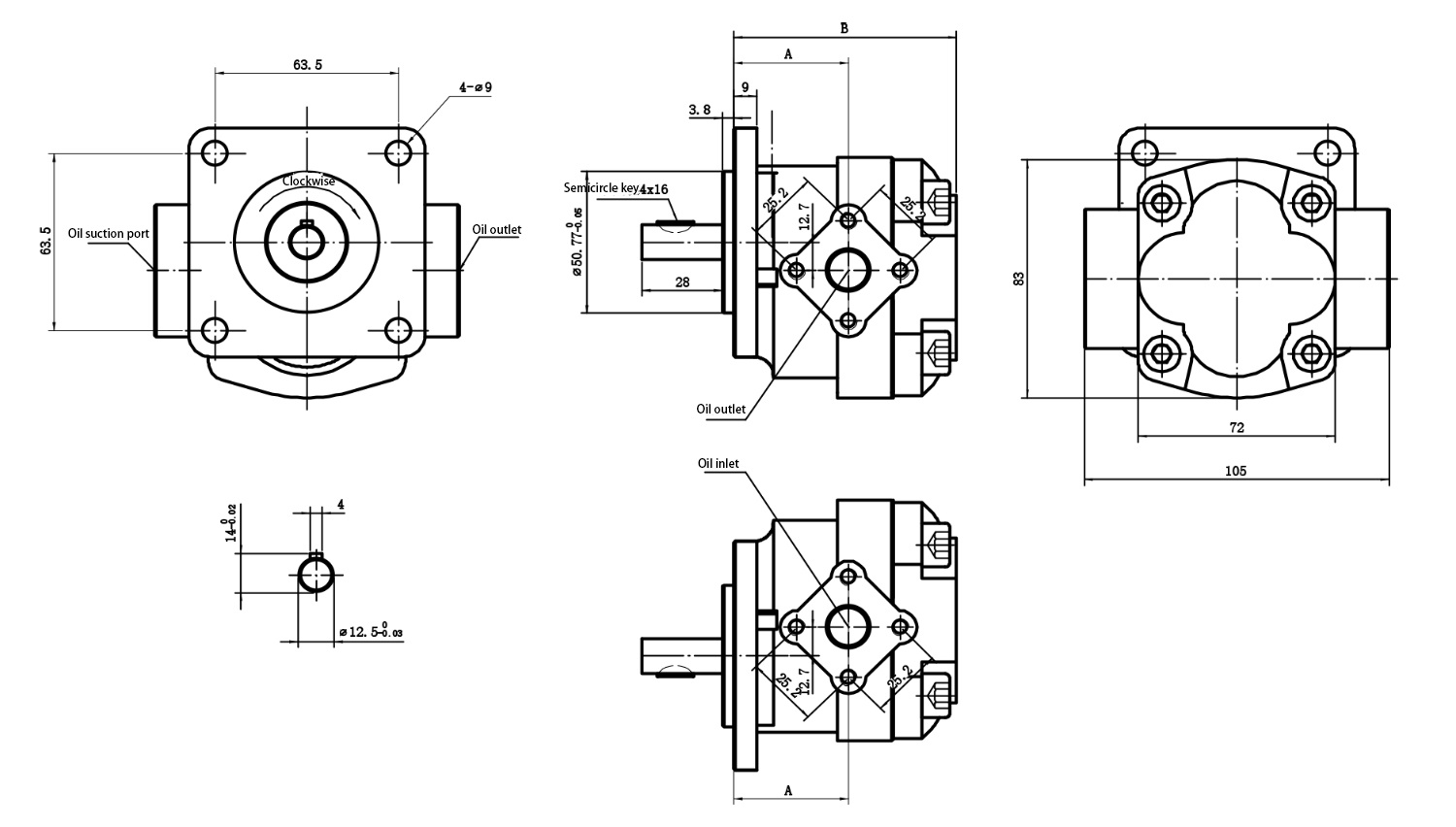

Outline Drawing

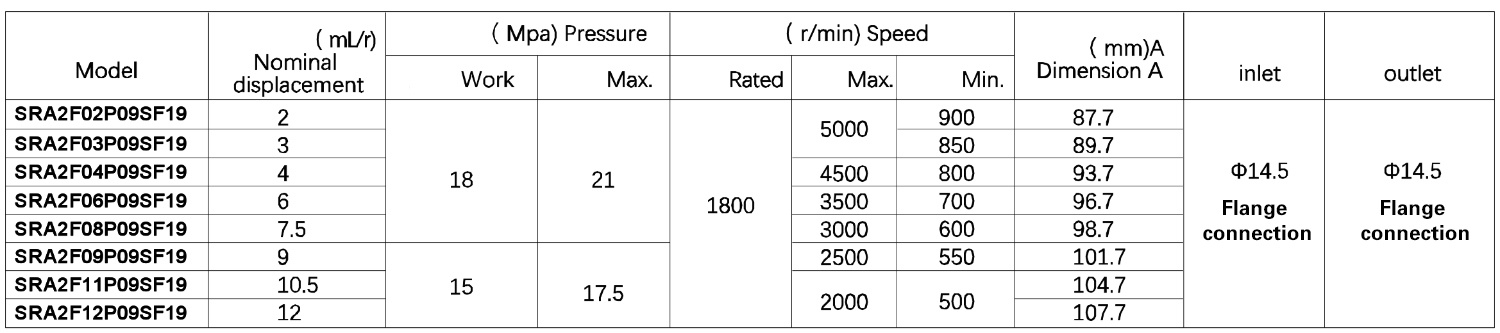

Performance Parameters
