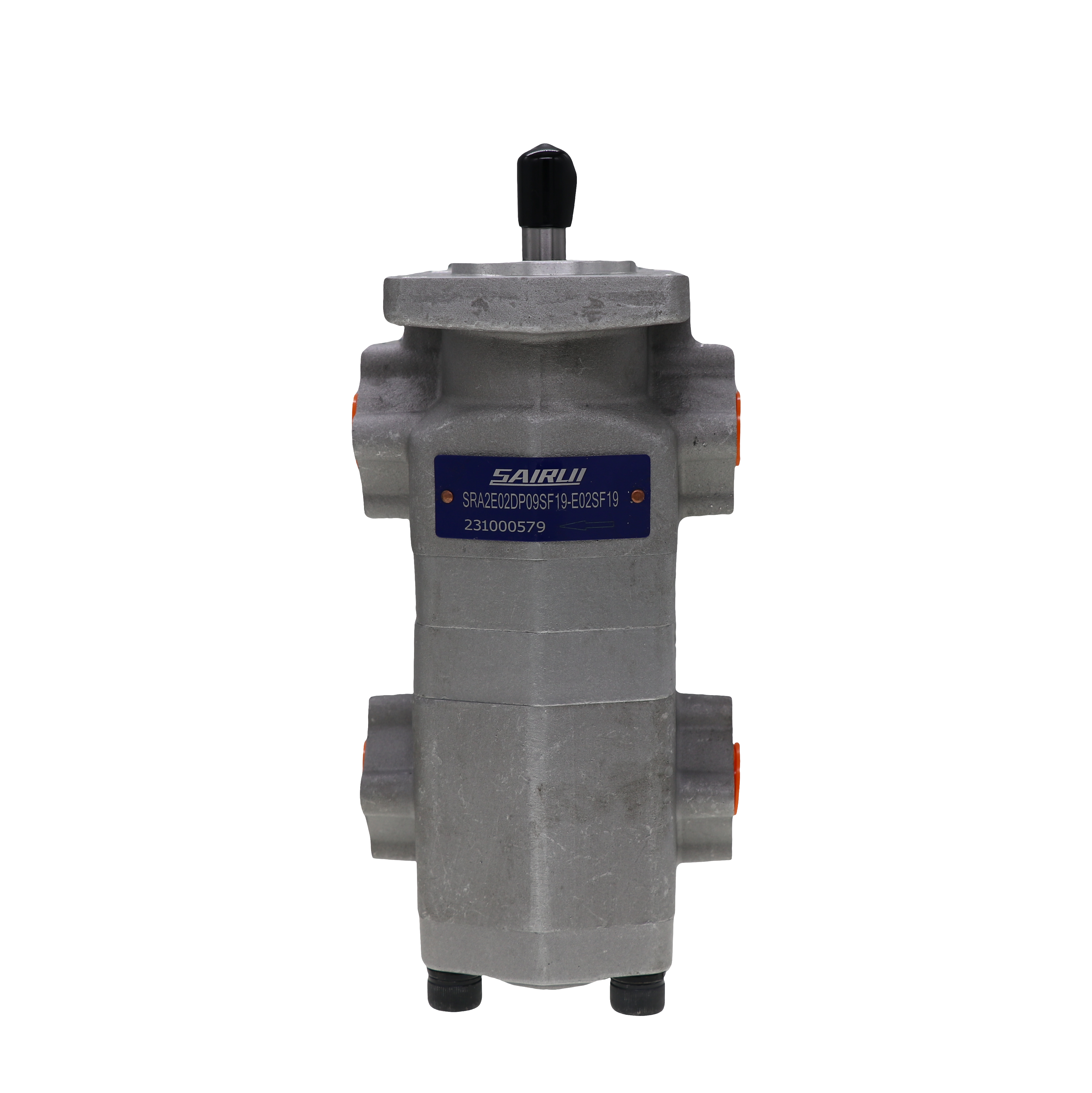

P09SF19-E03SF19 High Pressure Double Gear Pump
- Nominal displacement: 7 displacement types are provided, namely: 3/3mL/r, 4/4mL/r, 6/6mL/r, 8/8mL/r, 9/9mL/r, 11/11mL/r, and 12/12mL/r, which can be customized.
Purpose And Characteristics
① Application of high-strength aluminum alloy material, light weight, easy installation;
② The input shaft is connected with flat keys, rectangular splines, and involute splines; SAE involute splines;
③ The connection forms of oil inlet and outlet include threads, flanges, etc. to choose from;
④ Automatic axial clearance compensation mechanism enables the oil pump to maintain high volumetric efficiency for a long time.

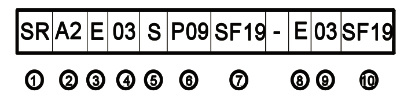

Model Description
① Company Code
② Classification code
③ Pressure rating E: 16Mpa
④ Front pump displacement (mL/r)
⑤ Rotation direction S: left rotation; D: Dextral rotation
⑥ See Appendix for shaft extensions and flanges
⑦ See the appendix for the form of oil port
⑧ Pressure rating E: 16Mpa
⑨ Rear pump displacement (mL/r)
⑩ Oil port type

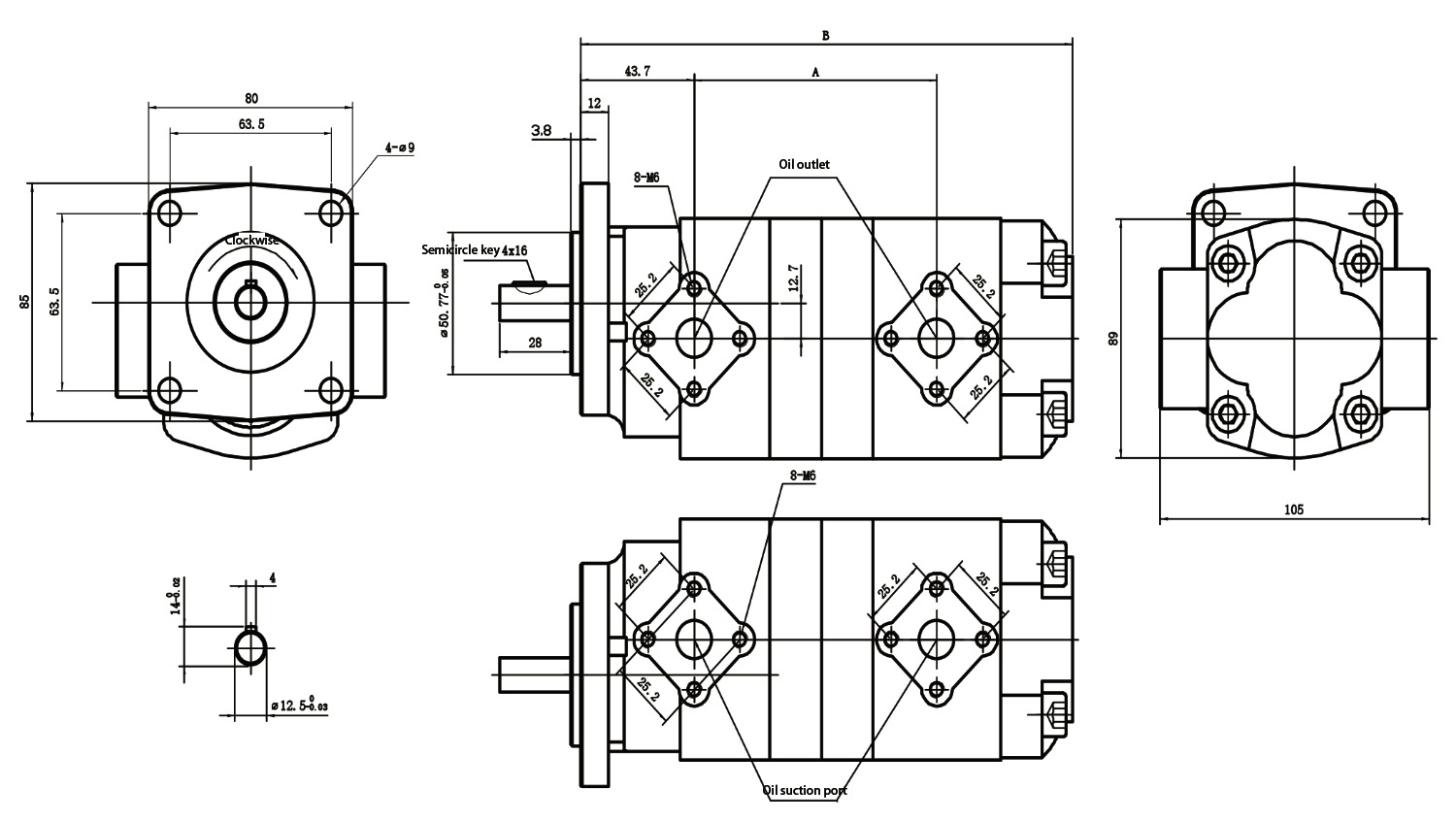

Outline Drawing

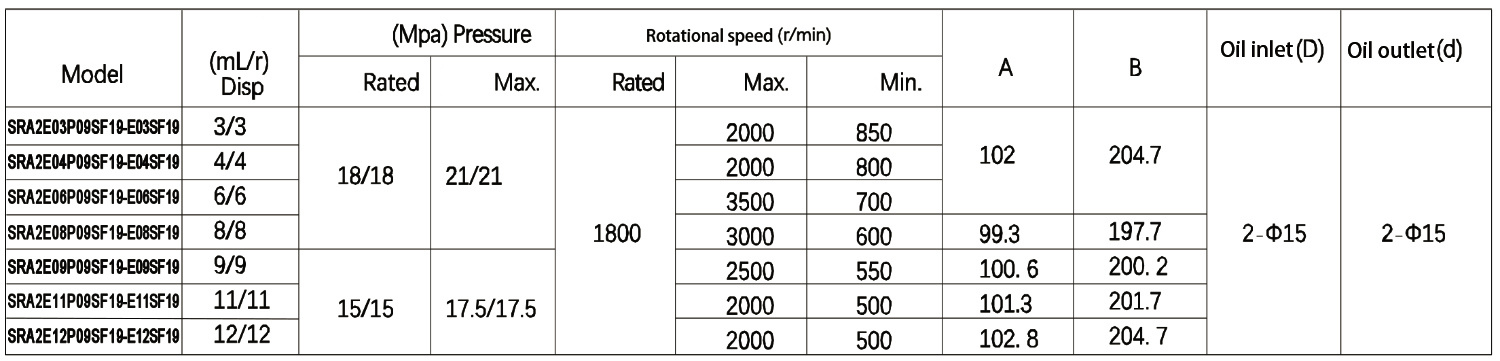

Performance Parameters
