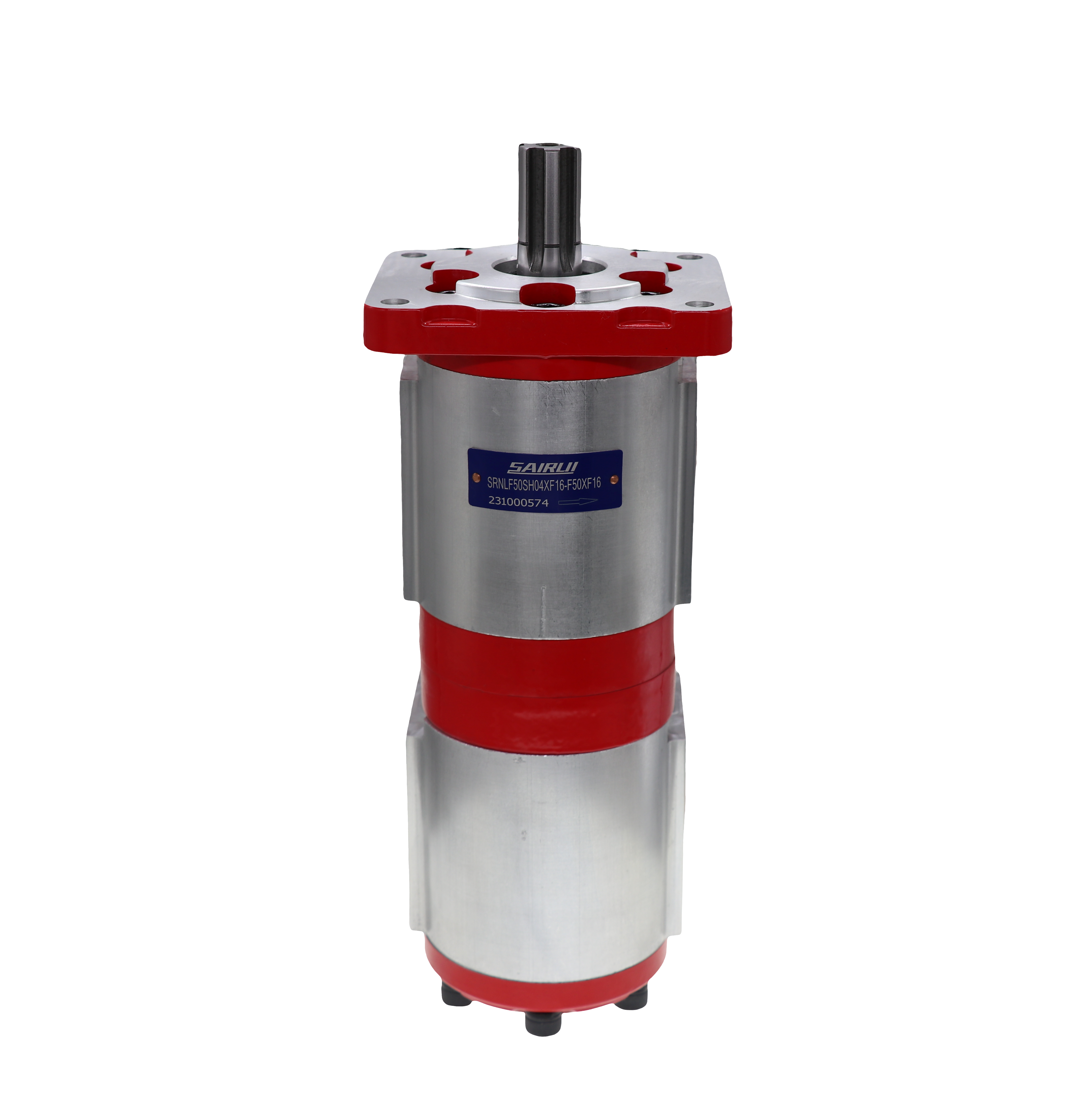

P11XF16-F20XF13 High Pressure Double Gear Pump
- Nominal displacement: 9 displacement types are provided, namely: 63/20mL/r, 63/10mL/r, 50/20mL/r, 50/10mL/r, 46/10mL/r, 40/25mL/r, 40/20mL/r, 40/16mL/r, and 32/10mL/r, which can be customized.
Purpose and characteristics
① Application of high-strength aluminum alloy material, light weight, easy installation;
② The input shaft is connected with flat keys, rectangular splines, and involute splines; SAE involute splines;
③ The connection forms of oil inlet and outlet include threads, flanges, etc. to choose from;
④ Automatic axial clearance compensation mechanism enables the oil pump to maintain high volumetric efficiency for a long time.
Model Description
① Company Code
② Classification code
③ Pressure rating E: 16Mpa
④ Front pump displacement (mL/r)
⑤ Rotation direction S: left rotation; D: Dextral rotation
⑥ See Appendix for shaft extensions and flanges
⑦ See the appendix for the form of oil port
⑧ Pressure rating E: 16Mpa
⑨ Rear pump displacement (mL/r)
⑩ Oil port type

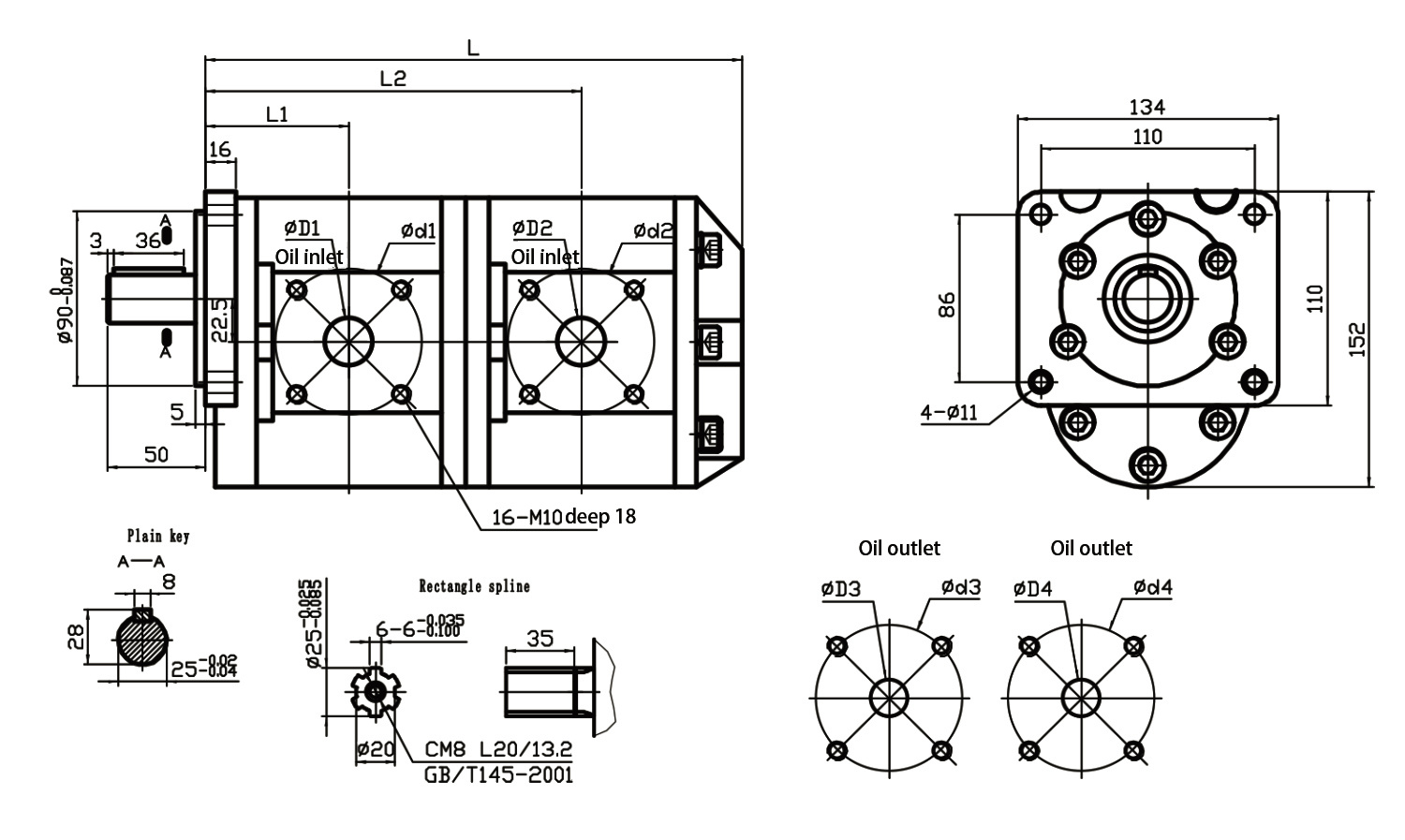

Outline Drawing

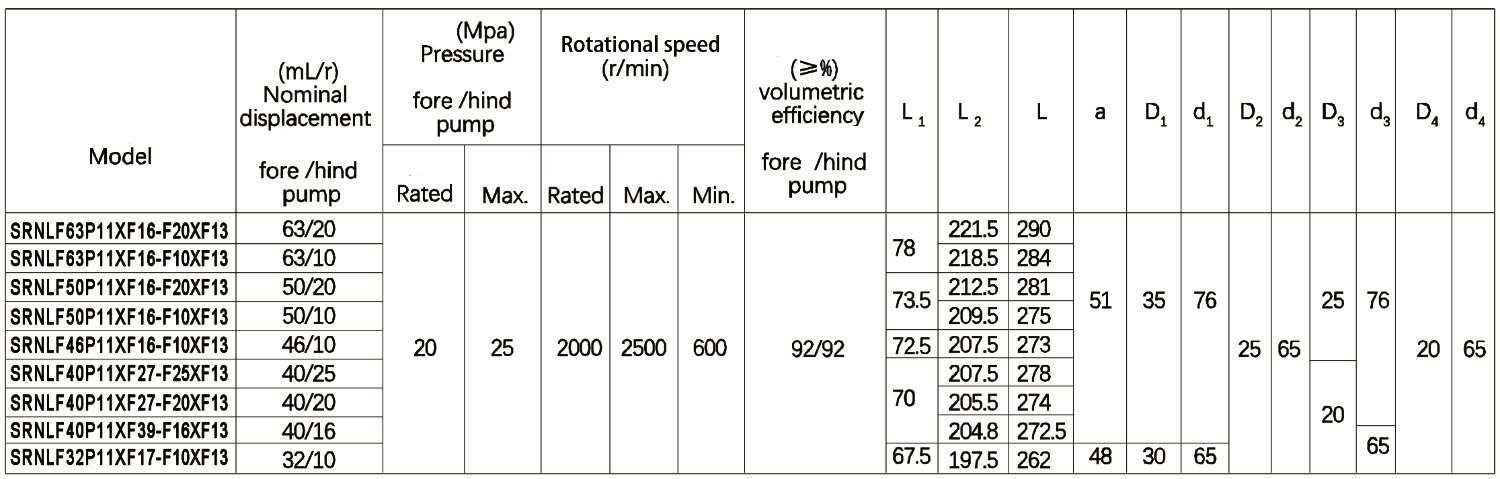

Performance Parameters
