P12 JF11 Gear Oil Pump
- Nominal displacement (front/rear pump): Provide 6 displacement: 20mL/r、25mL/r、32mL/r、40mL/r、50mL/r、63mL/r,customizable.
Use And Characteristics
① High strength aluminum alloy shell;
② The connection form of input shaft is flat key rectangular spline involute spline;
③ The connection form of oil inlet and outlet has threaded flange for selection;
④ The axial clearance automatic compensation mechanism enables the oil pump to work with high efficiency;
⑤ High working pressure, wide rotating speed range and high volumetric efficiency when the low rotating speed reaches 600rpm.

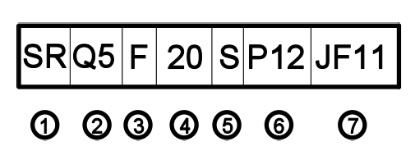

Model Description
① Code name
② Classification code
③ Pressure grade (F: 20MPa)
④ Nominal displacement (mL/r)
⑤ Rotation direction S: left-handed; D: Dextral
⑥ Axial extension and flange [see appendix]
⑦ Oil port form [see appendix]

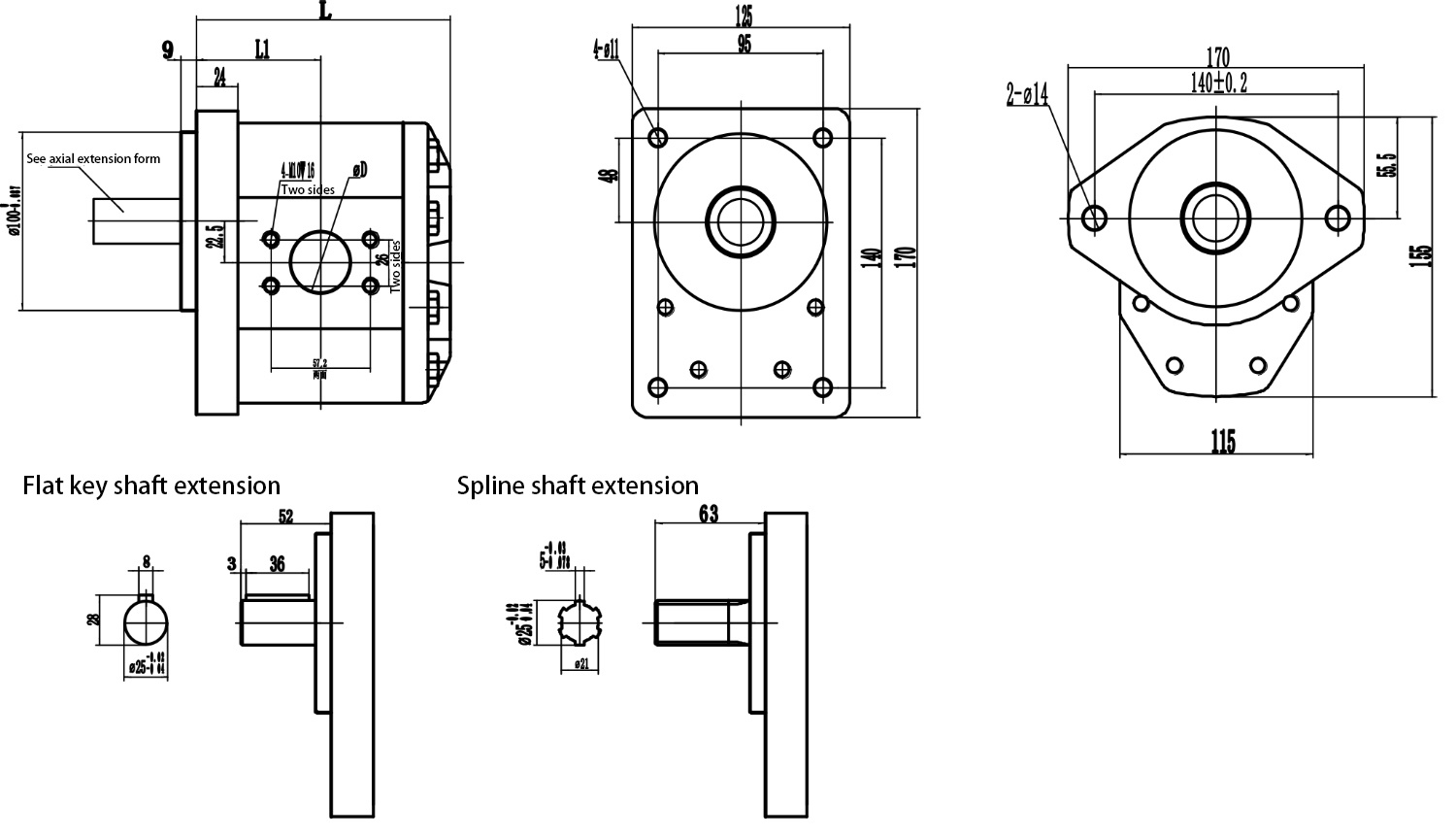

Outline Drawing

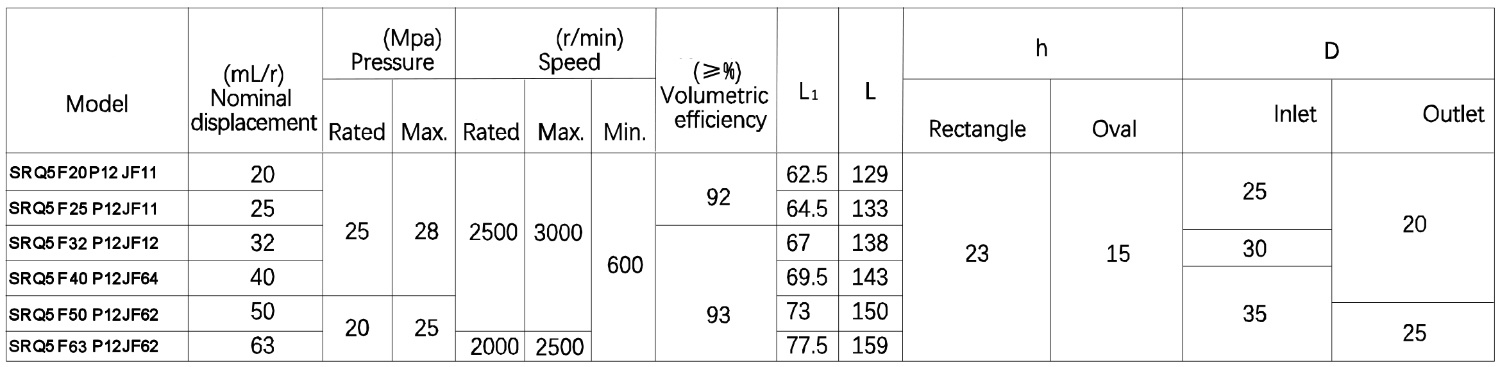

Performance Parameters
