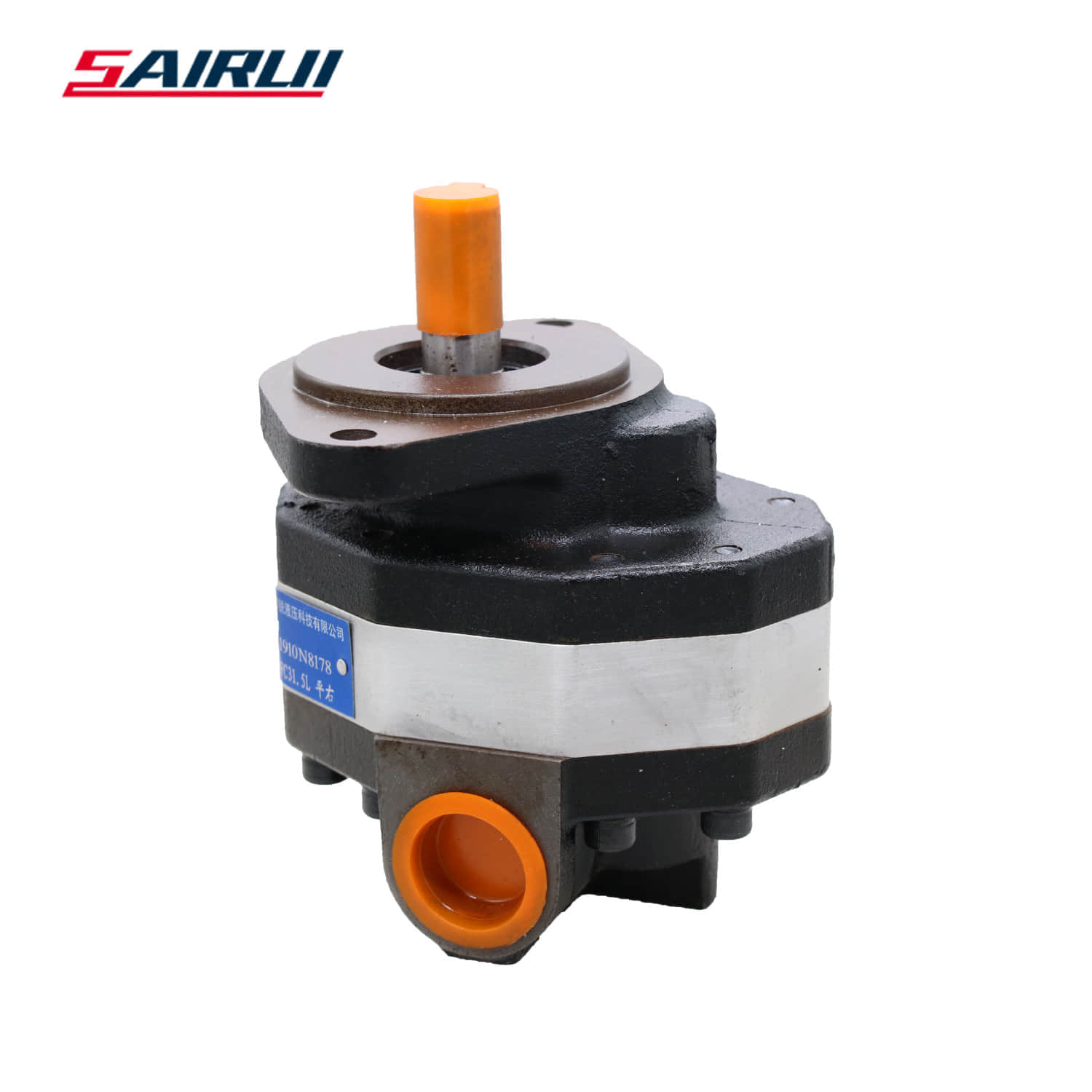

P15 ML37 Gear Oil Pump

Use And Characteristics

① High strength aluminum alloy shell;

② The connection form of input shaft is flat key rectangular spline involute spline;

③ The connection form of oil inlet and outlet has threaded flange for selection;

④ The axial clearance automatic compensation mechanism enables the oil pump to work with high efficiency;

⑤ High working pressure, wide rotating speed range and high volumetric efficiency when the low rotating speed reaches 600rpm.

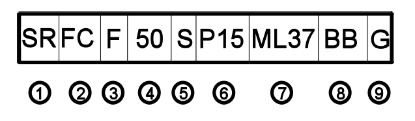

Model Description

① Code name

② Classification code

③ Pressure grade (F: 20MPa)

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left-handed; D: Dextral

⑥ Axial extension and flange [see appendix]

⑦ Oil port form [see appendix]

8 Oil port position

Pet-name ruby front and rear cover materials

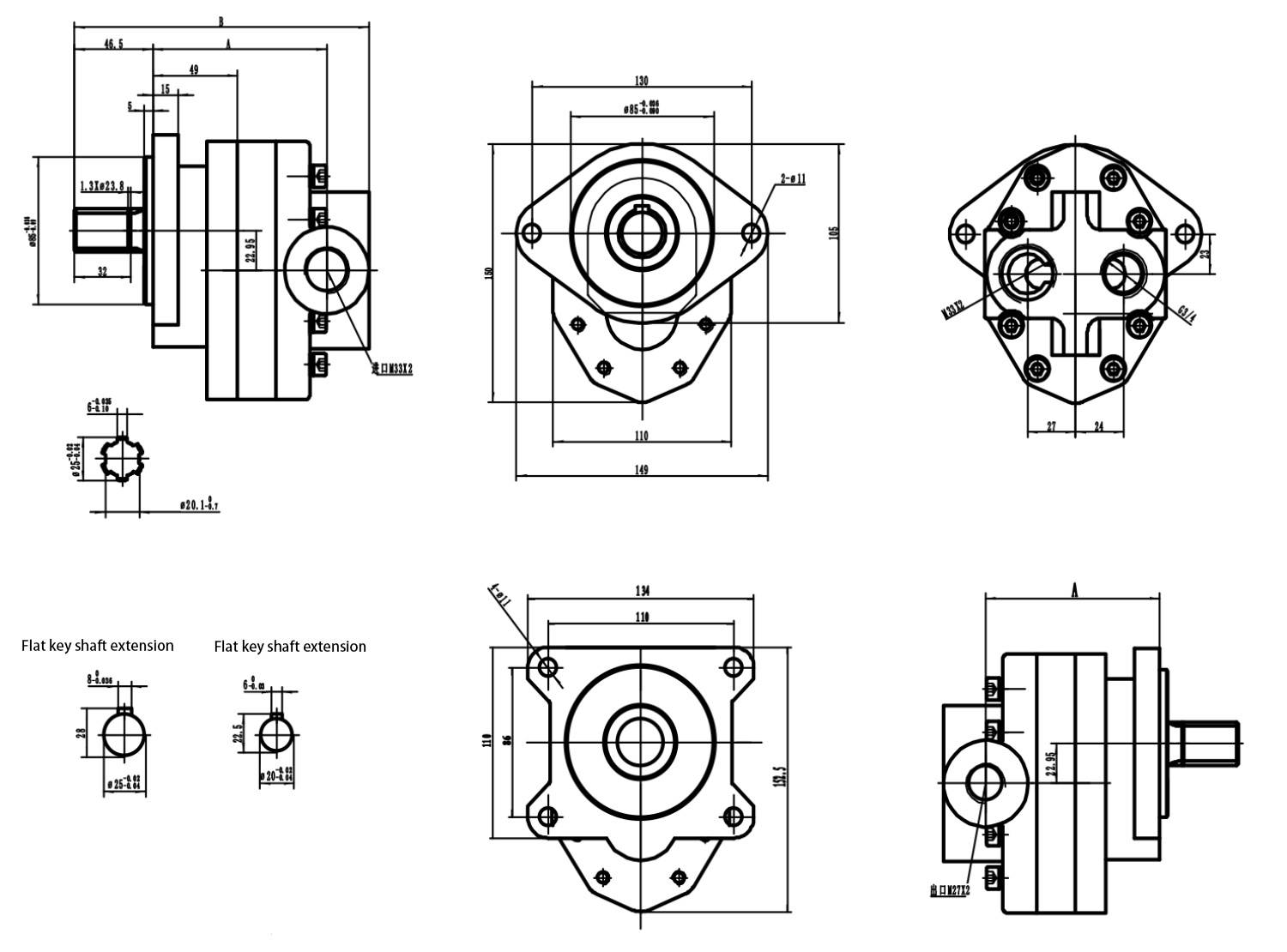

Outline Drawing

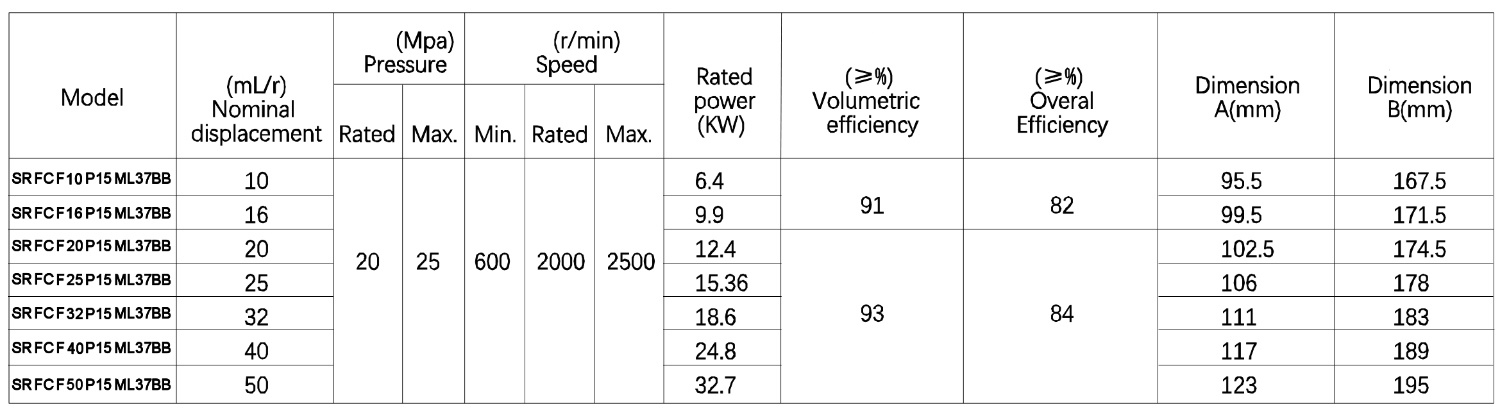

Performance Parameters
