P22ML13SS1-E10ML13SS1 High Pressure Double Gear Pump
- Nominal displacement: 10 displacement types are provided, including: 10/10mL/r, 16/10mL/r, 20/10mL/r, 25/10mL/r, 32/10mL/r, 16/16mL/r, 20/16mL/r, 25/16mL/r, 20/20mL/r, and 25/20mL/r, which can be customized.
Purpose And Characteristics
① Application of high-strength aluminum alloy material, light weight, easy installation;
② The input shaft is connected with flat keys, rectangular splines, and involute splines; SAE involute splines;
③ The connection forms of oil inlet and outlet include threads, flanges, etc. to choose from;
④ Automatic axial clearance compensation mechanism enables the oil pump to maintain high volumetric efficiency for a long time.
Model Description
① Company Code
② Classification code
③ Pressure rating [F: 20Mpa E: 16Mpa]
④ Front pump displacement (mL/r)
⑤ Rotation direction S: left rotation; D: Dextral rotation
⑥ See Appendix for shaft extensions and flanges
⑦ See the appendix for the form of oil port
⑧ Oil port location
⑨ Pressure rating [F: 20Mpa E: 16Mpa]
⑩ Rear pump displacement
⑪ Oil port type
⑫ Oil port location

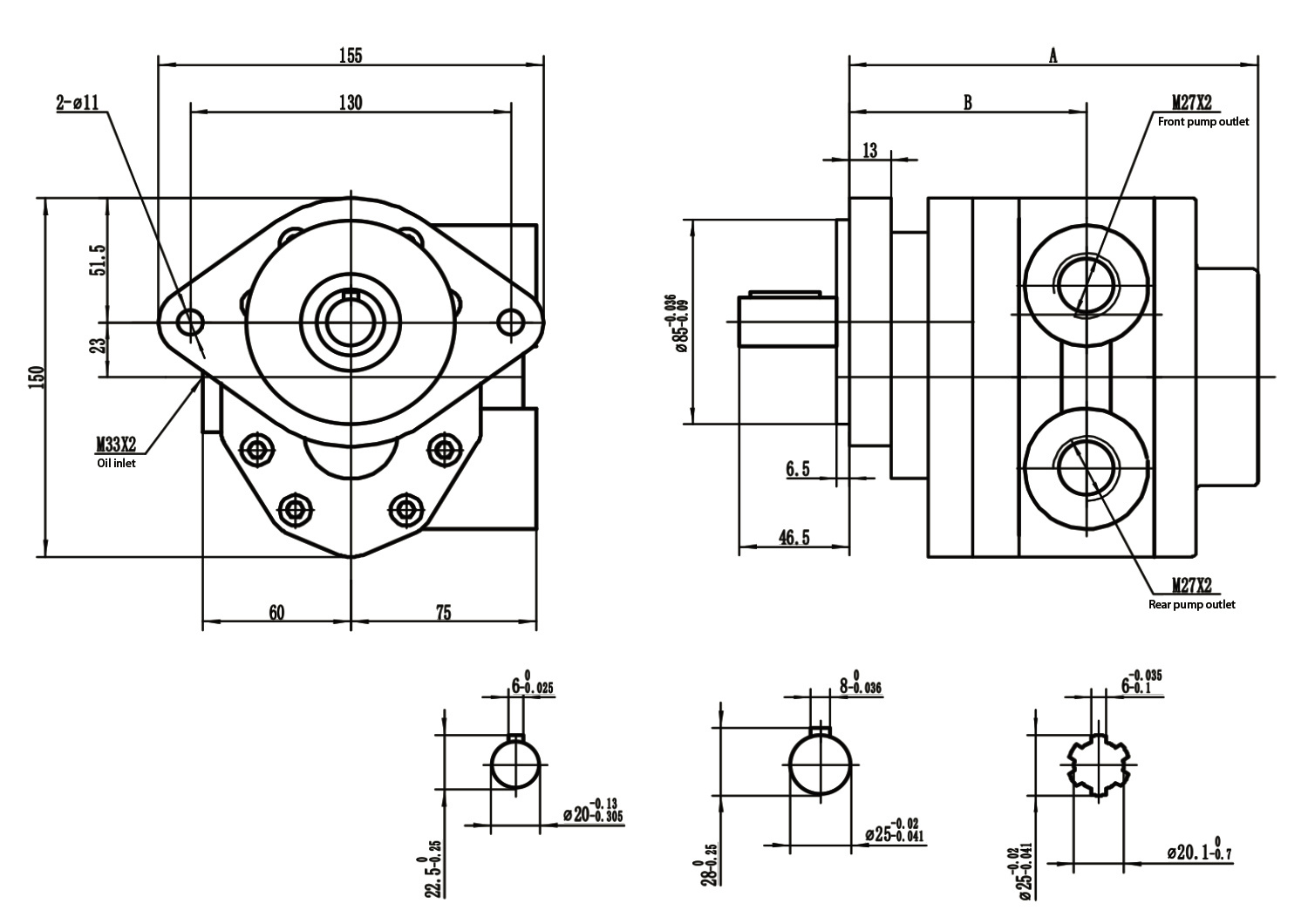

Outline Drawing

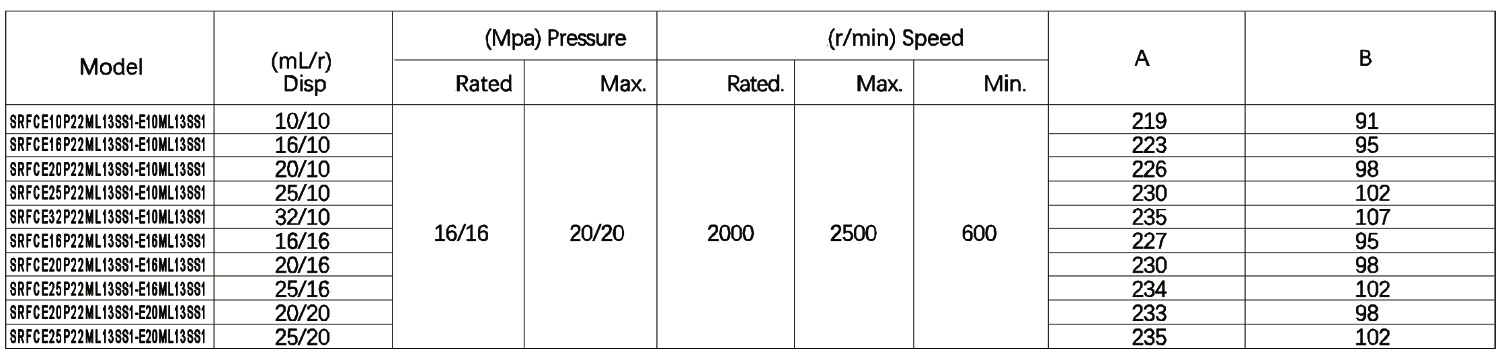

Performance Parameter
