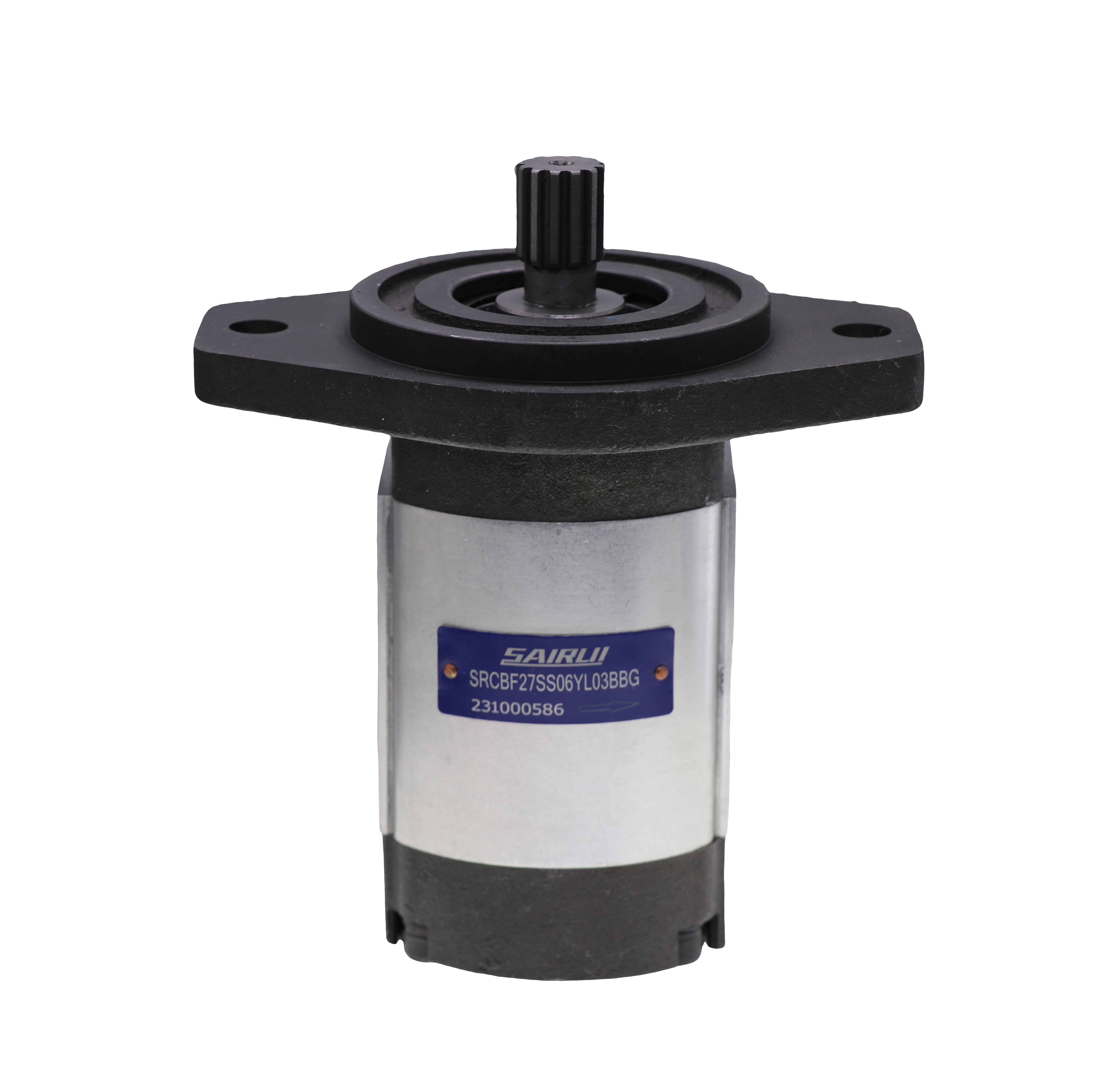

S06 YL04 Gear Oil Pump

S06 YL04 Gear Oil Pump

  • Nominal displacement: Provide 10 displacement: 06mL/r、08mL/r、11mL/r、14mL/r、17mL/r、19mL/r、23mL/r、25mL/r、28mL/r、30mL/r,customizable.

Use And Characteristics

① High strength aluminum alloy shell;

② Light weight, compact structure and low noise;

③ Accurate and meticulous structural design makes the oil pump have high volumetric efficiency and high mechanical efficiency;

④ Wide application range

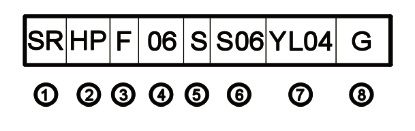

Model Description

S06 YL04 Gear Oil Pump

① Code name

② Classification code

③ Pressure grade (F: 20MPa)

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left-handed; D: Dextral

⑥ Axial extension and flange [see appendix]

⑦ Oil port form [see appendix]

⑧ Front and rear cover materials

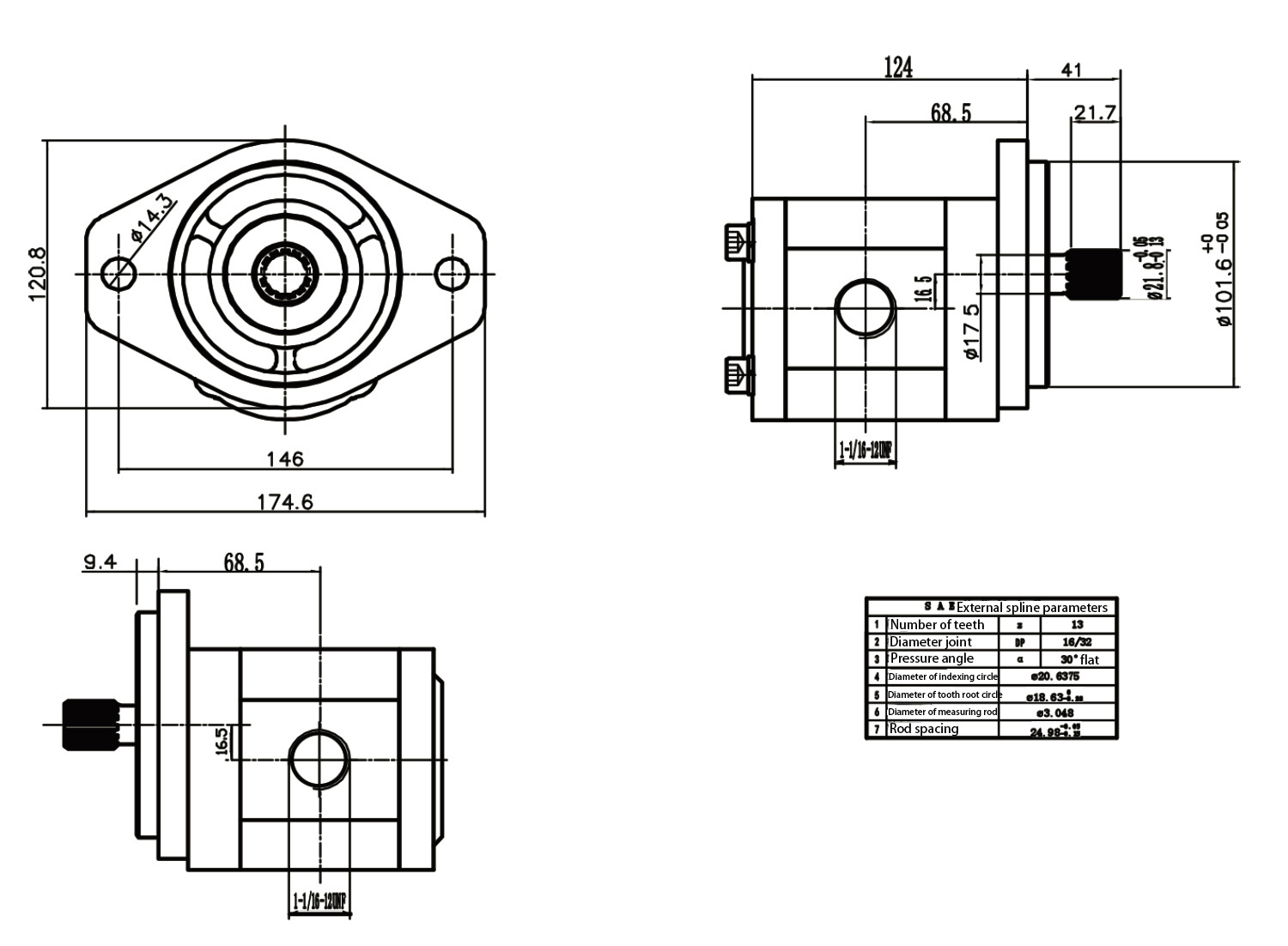

Outline Drawing

S06 YL04 Gear Oil Pump

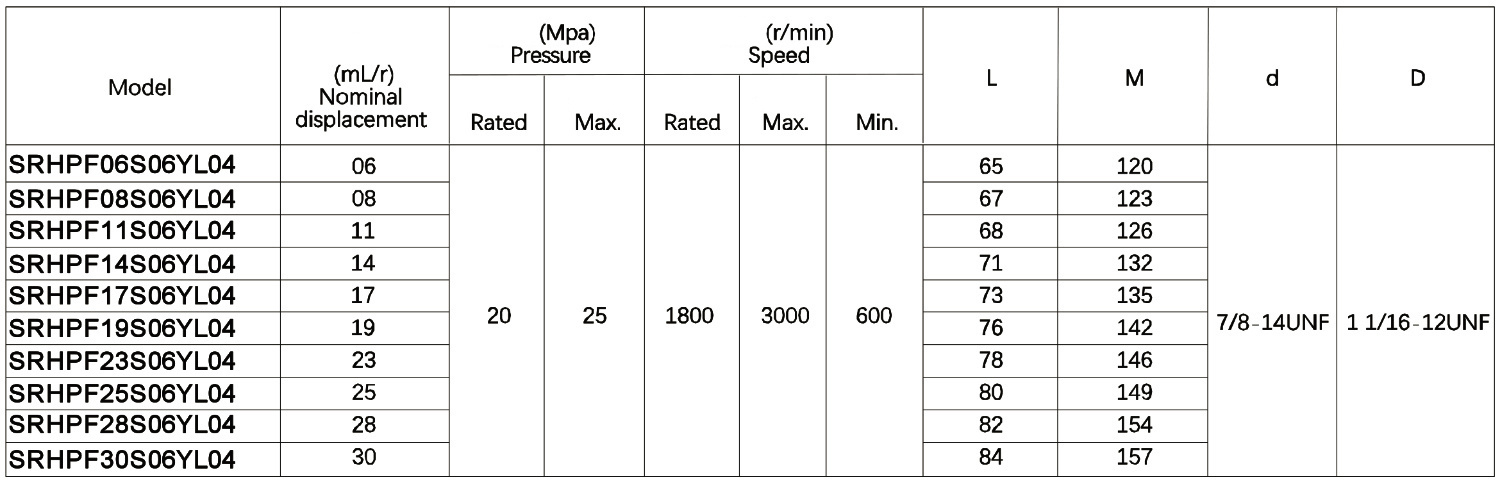

Performance Parameters

S06 YL04 Gear Oil Pump
