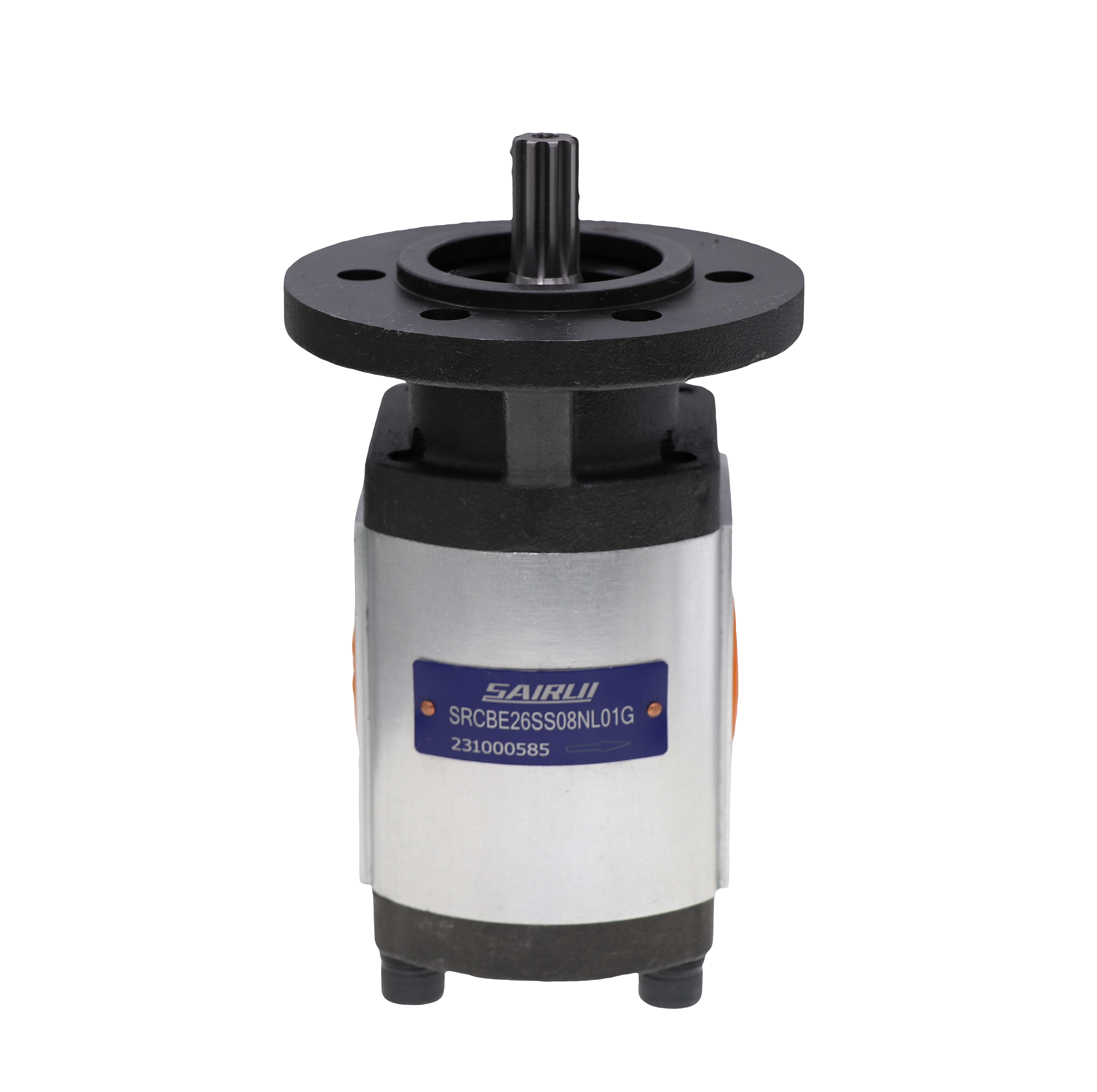

S08NL01 In-line gear pump

Use And Characteristics

① High strength aluminum alloy pump body light weight and low noise;

② Alloy steel hard tooth surface has long transmission life and stable performance;

③ DU composite bearing and high-performance sealing elements have small starting torque and good sealing performance;

④ Product execution: JB/T7041-2006

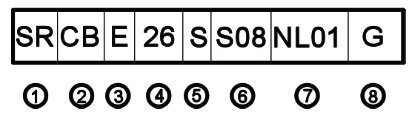

Model Description

① Code name

② Classification code

③ Pressure grade (F: 20MPa)

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left-handed; D: Dextral

⑥ Axial extension and flange [see appendix]

⑦ Oil port form [see appendix]

⑧ Front and rear cover material G: cast iron

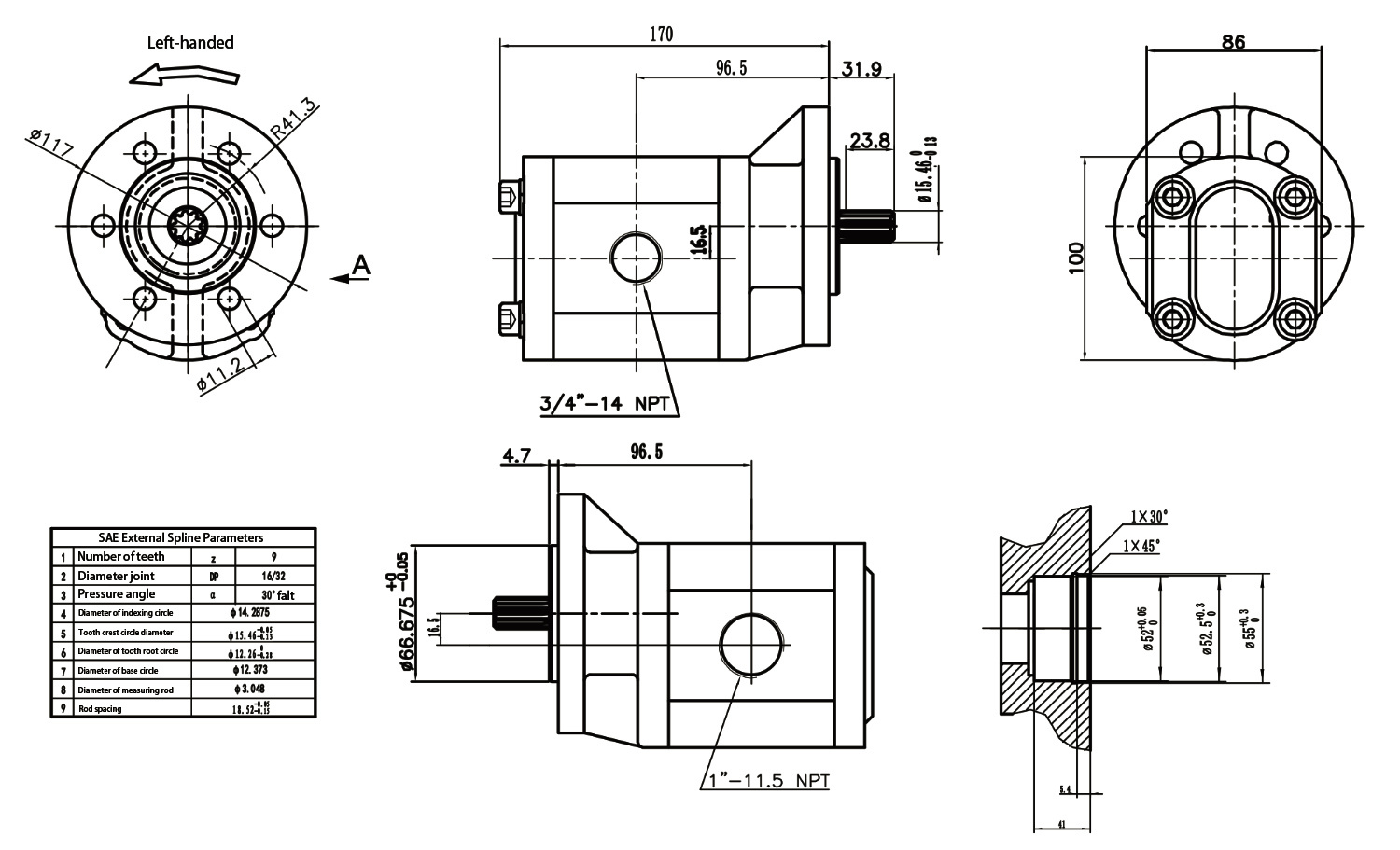

Outline drawing

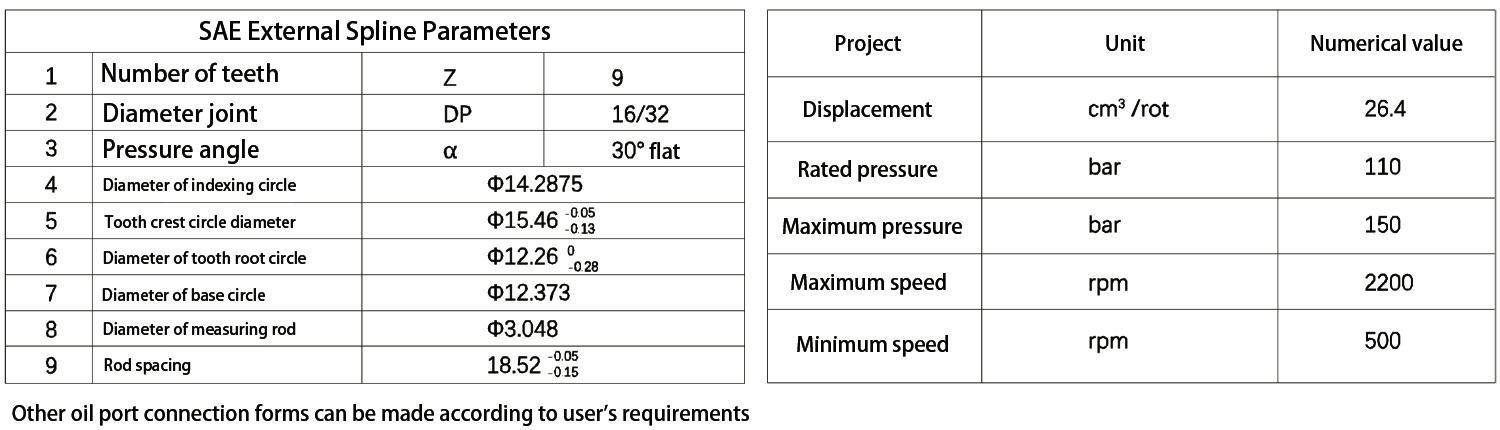

Performance Parameters
