S12XF09-G06XF09 High Pressure Double Gear Pump
- Nominal displacement: 10 displacement types are provided, including 06mL/r, 08mL/r, 11mL/r, 14mL/r, 17mL/r, 19mL/r, 23mL/r, 25mL/r, 28mL/r, and 30mL/r, which can be customized.
Purpose And Characteristics
① Application of high-strength aluminum alloy material, light weight, easy installation;
② The input shaft is connected with flat keys, rectangular splines, and involute splines; SAE involute splines;
③ The connection forms of oil inlet and outlet include threads, flanges, etc. to choose from;
④ Automatic axial clearance compensation mechanism enables the oil pump to maintain high volumetric efficiency for a long time.
Model Description
① Company Code
② Classification code
③ Pressure rating [F: 20Mpa]
④ Front pump displacement (mL/r)
⑤ Rotation direction S: left rotation; D: Dextral rotation
⑥ See Appendix for shaft extensions and flanges
⑦ See the appendix for the form of oil port
⑧ Pressure rating [F: 20Mpa]
⑨ Rear pump displacement (mL/r)
⑩ See the appendix for the form of oil port
⑪ Front and rear cover material

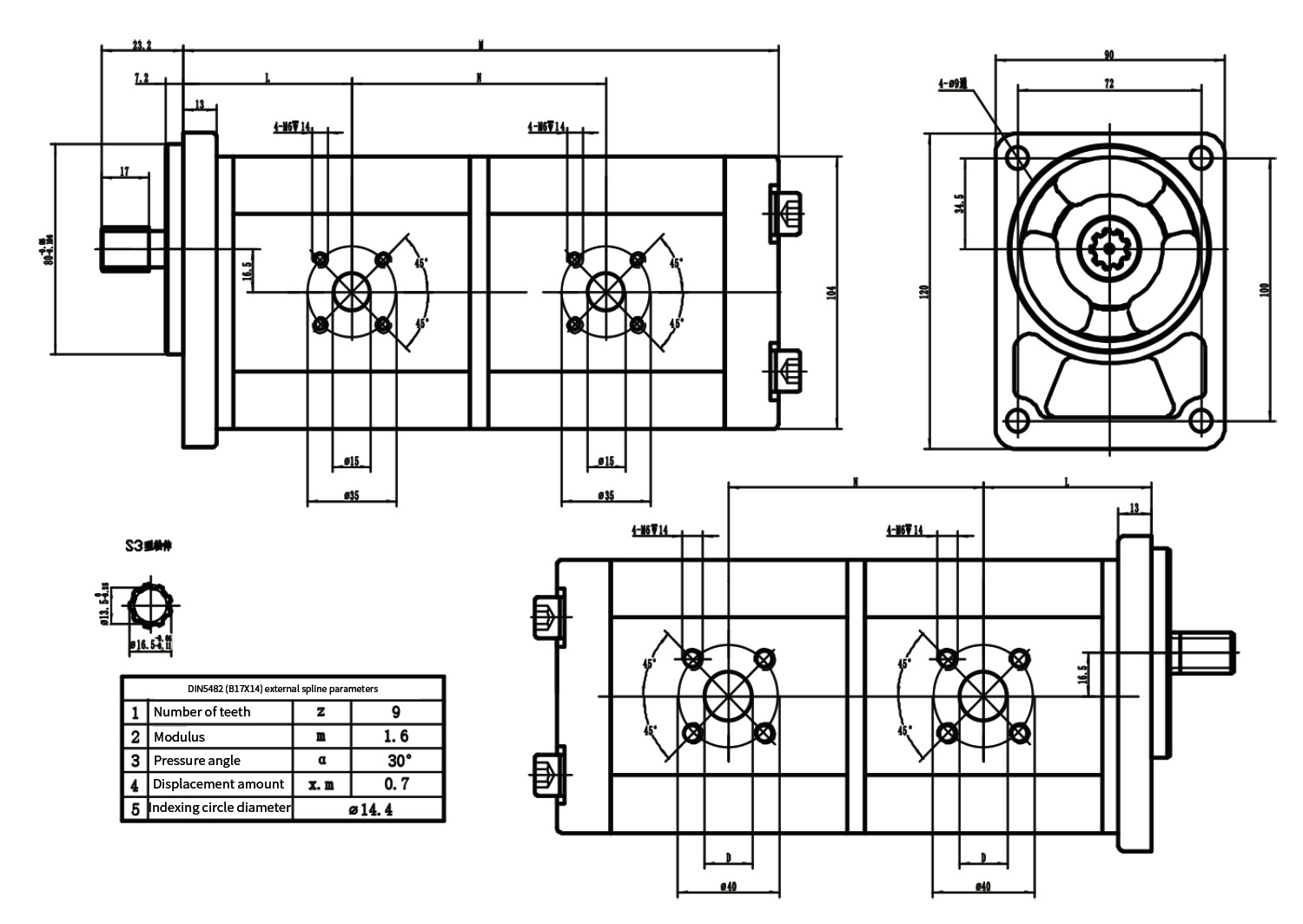

Outline Drawing

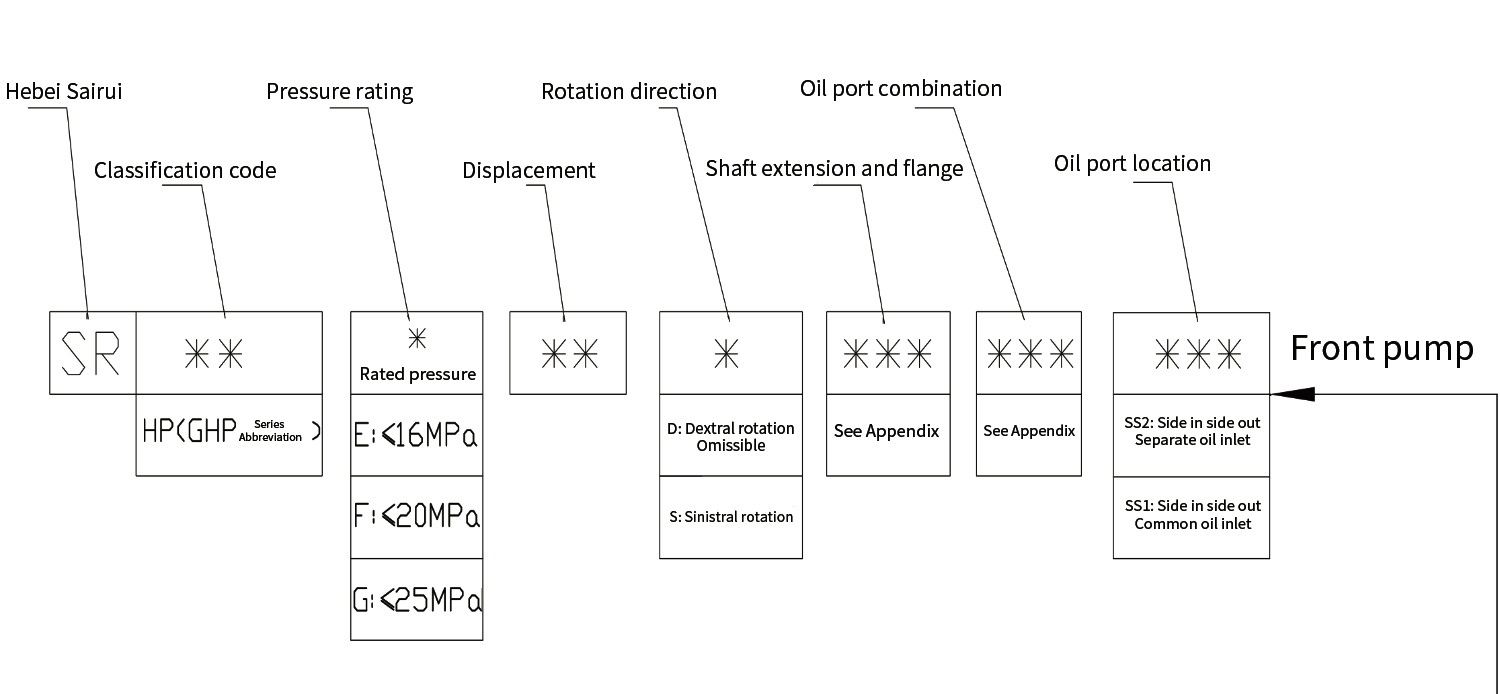

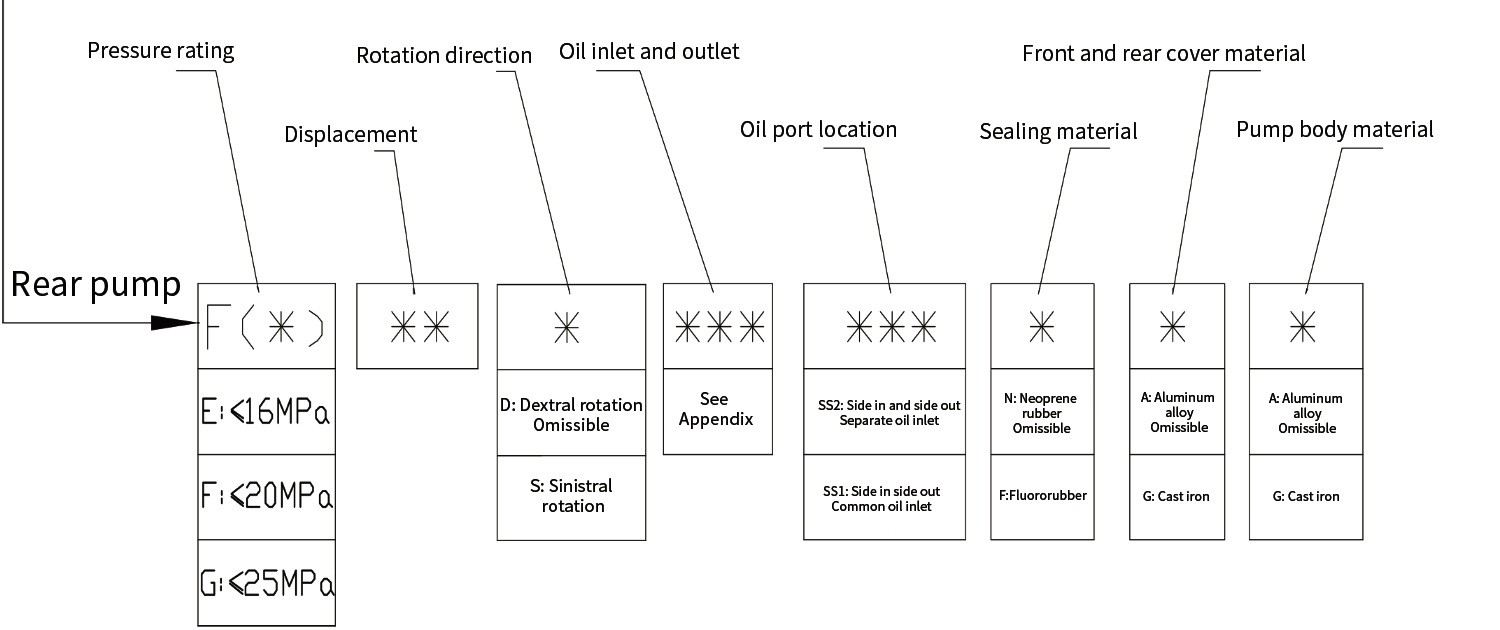

Model Description Of SRHP Double External Gear Pump

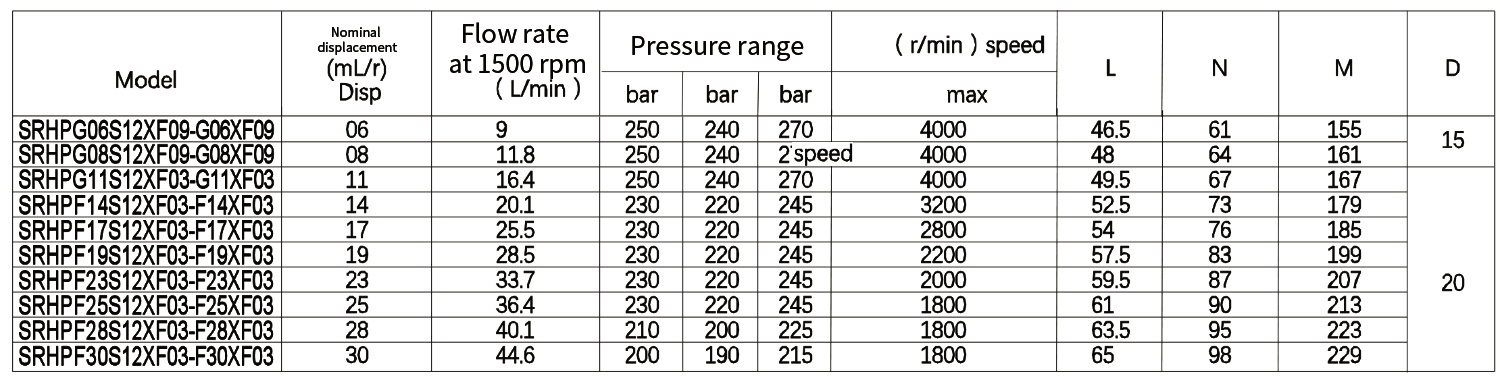

Performance Parameter
