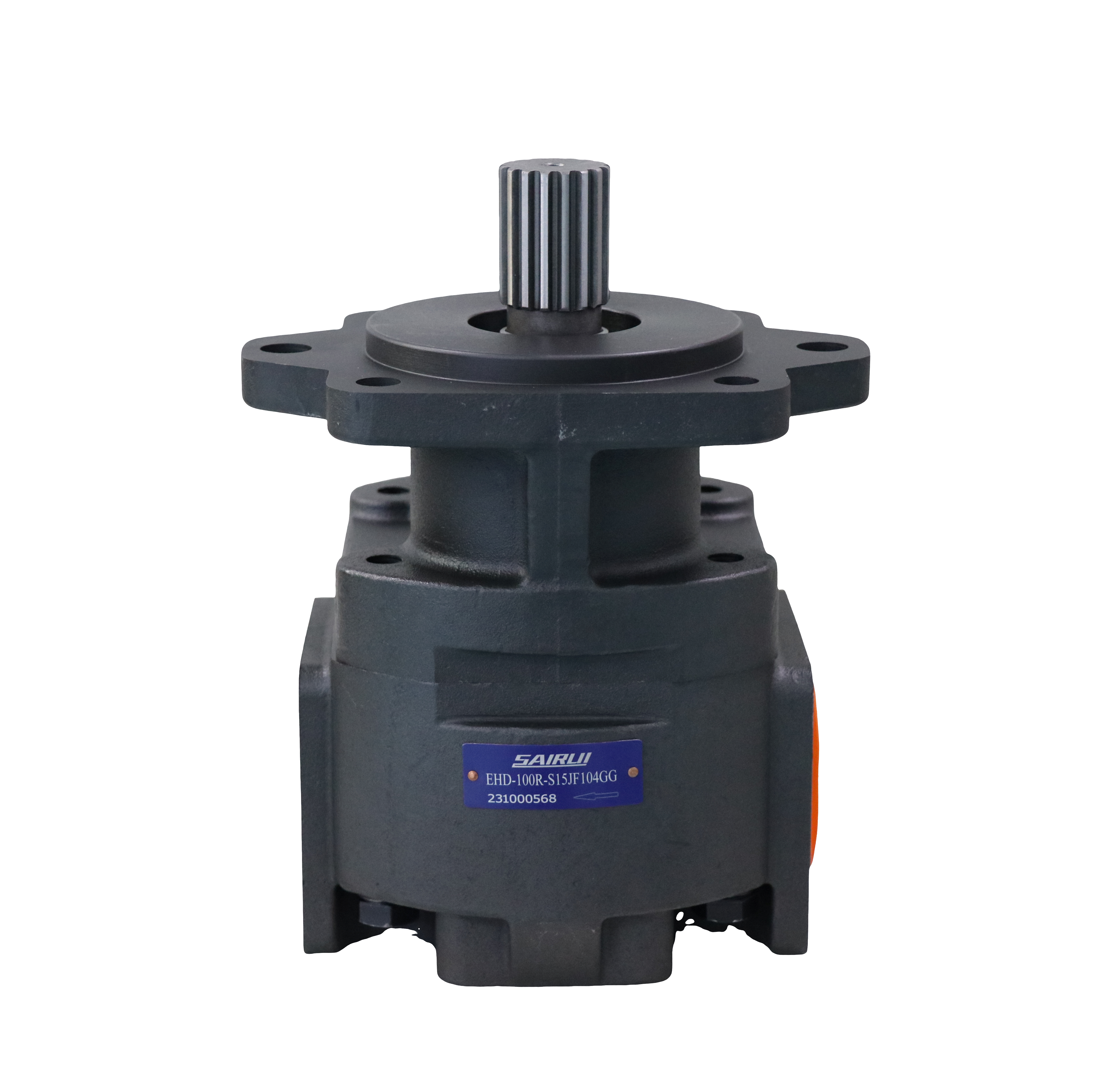

S14 SF58 Gear Pump

S14 SF58 Gear Pump

  • Nominal displacement: 11 displacement types are available, including 150mL/r, 125mL/r, 110mL/r, 100mL/r, 90mL/r, 82mL/r, 71mL/r, 61mL/r, 56mL/r, 51mL/r, and 43mL/r, which can be customized.

Purpose And Characteristics

① High strength ductile iron pump body;

② The input shaft is connected with flat keys, rectangular splines, and involute splines;

③ The connection forms of oil inlet and outlet include threads, flanges, etc. to choose from;

④ Automatic axial clearance compensation mechanism enables the oil pump to maintain high efficiency for a long time;

⑤ High working pressure, wide rotational speed range, and high volumetric efficiency at low rotational speeds up to 600 rpm.

Model Description

S14 SF58 Gear Pump

① Company Code

② Classification code

③ Pressure rating (F: 20MPa)

④ Nominal displacement (mL/r)

⑤ Rotation direction S: left rotation; D: Dextral rotation

⑥ Shaft extensions and flanges [see appendix]

⑦ Oil port type [see appendix]

⑧ Front and rear cover material G: cast iron

⑨ Pump body material G: cast iron

Outline Drawing

S14 SF58 Gear Pump

性能参数

S14 SF58 Gear Pump
