S17JF52-G08SF00 High Pressure Double Gear Pump

Purpose And Characteristics

① High strength ductile iron pump body;

② The input shaft is connected with flat keys, rectangular splines, and involute splines;

③ The connection forms of oil inlet and outlet include threads, flanges, etc. to choose from;

④ Automatic axial clearance compensation mechanism enables the oil pump to maintain high efficiency for a long time;

⑤ High working pressure, wide rotational speed range, and high volumetric efficiency at low rotational speeds up to 600 rpm.

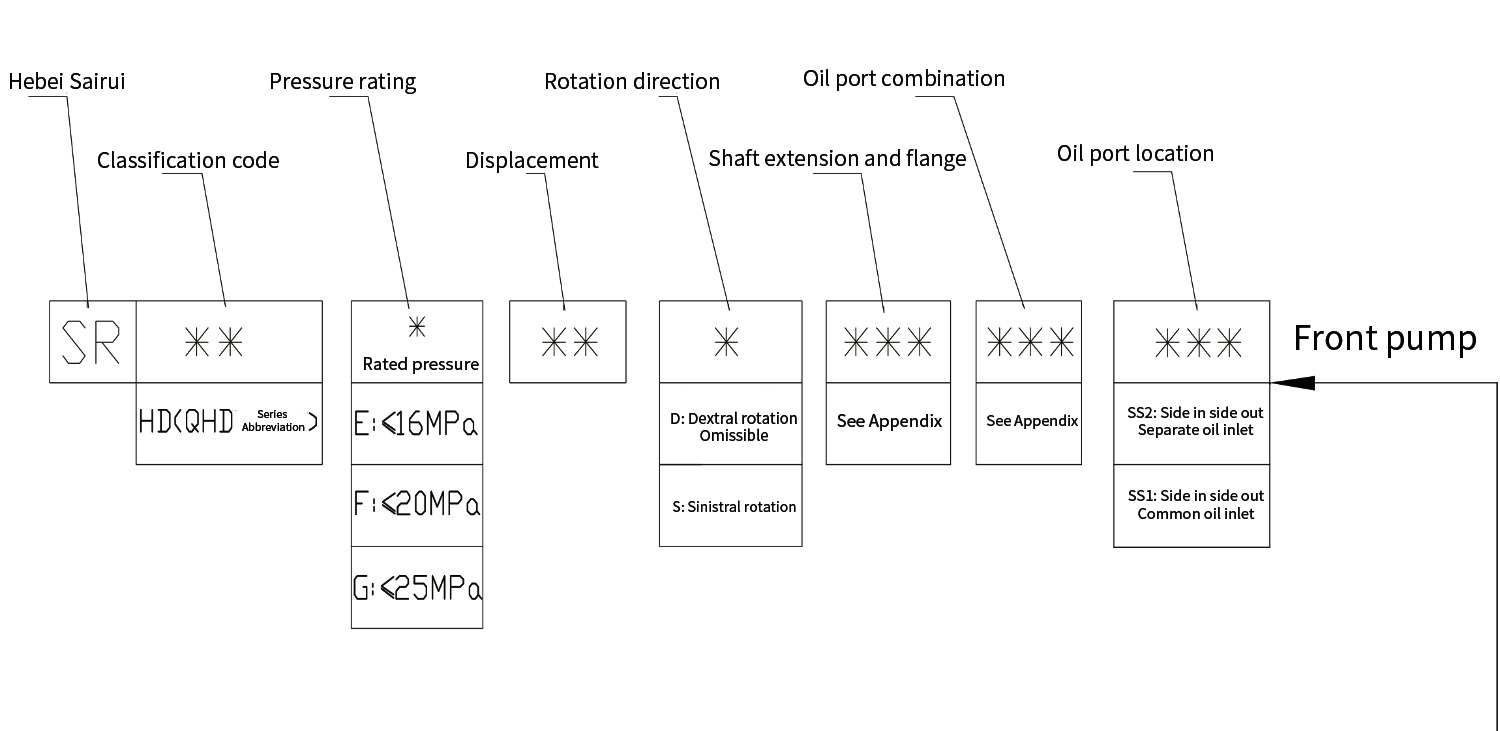

Model Description

① Company Code

② Classification code

③ Pressure rating [F: 20Mpa]

④ Front pump displacement (mL/r)

⑤ Rotation direction S: left rotation; D: Dextral rotation

⑥ See Appendix for shaft extensions and flanges

⑦ See the appendix for the form of oil port

⑧ Pressure rating [F: 20Mpa]

⑨ Rear pump displacement (mL/r)

⑩ See the appendix for the form of oil port

⑪ Front and rear cover material

⑫ Pump body material [G: cast iron]

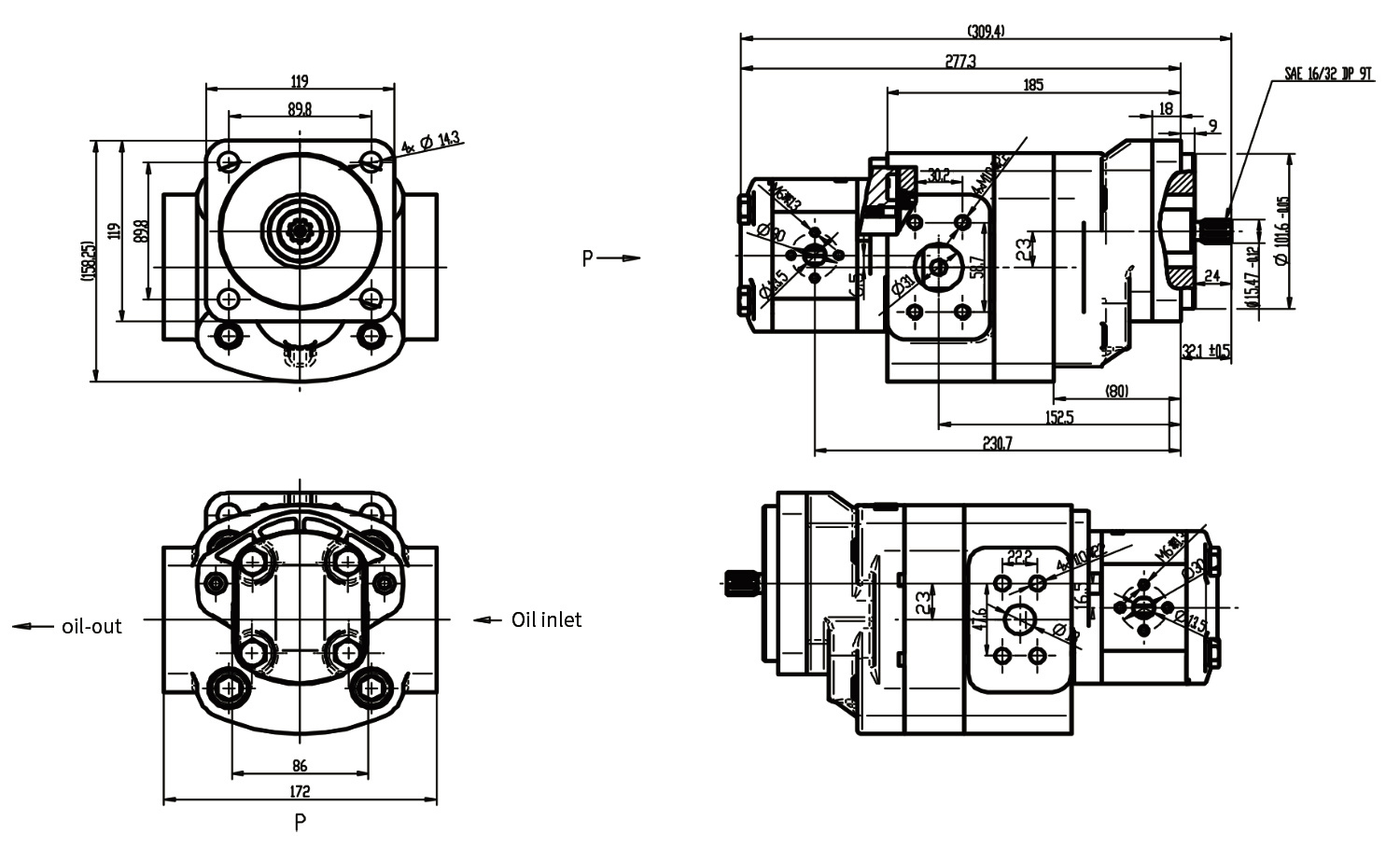

Outline Drawing

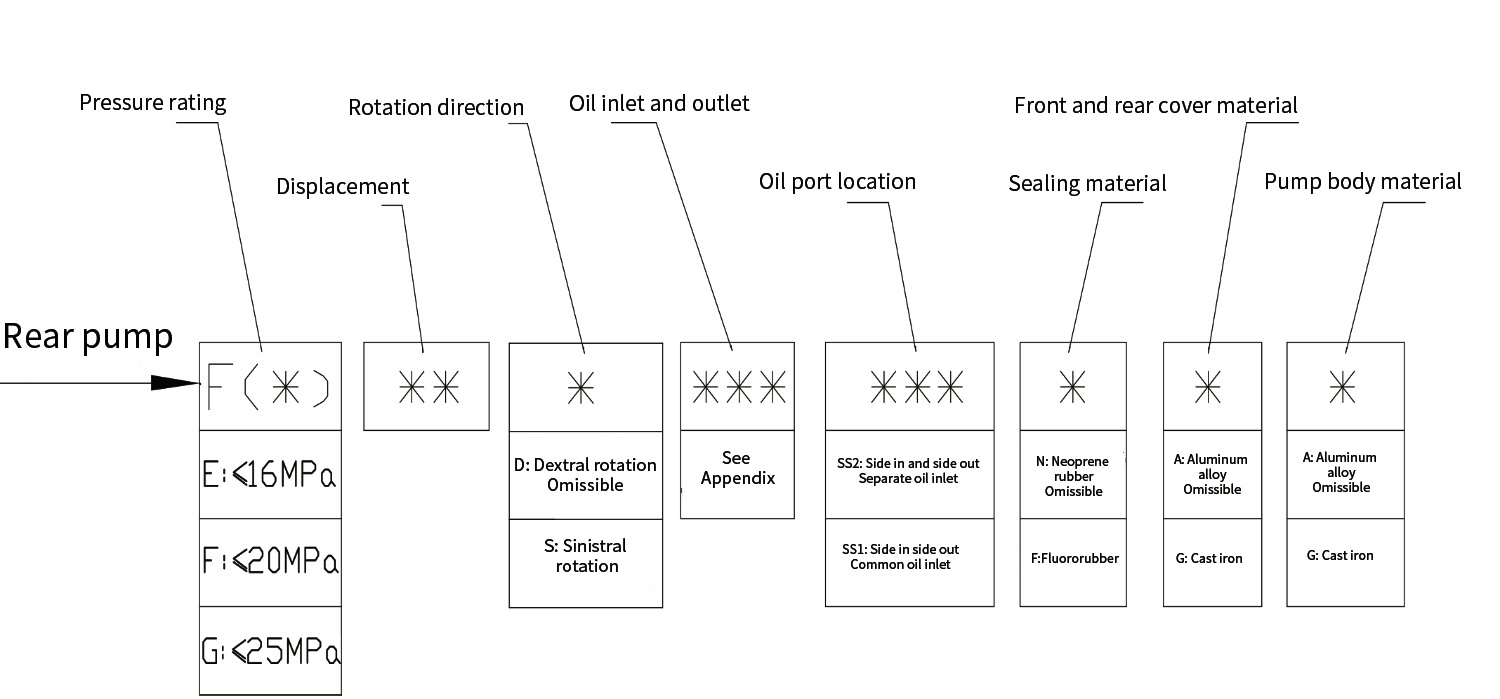

Model Description Of SRHD Double External Gear Pump

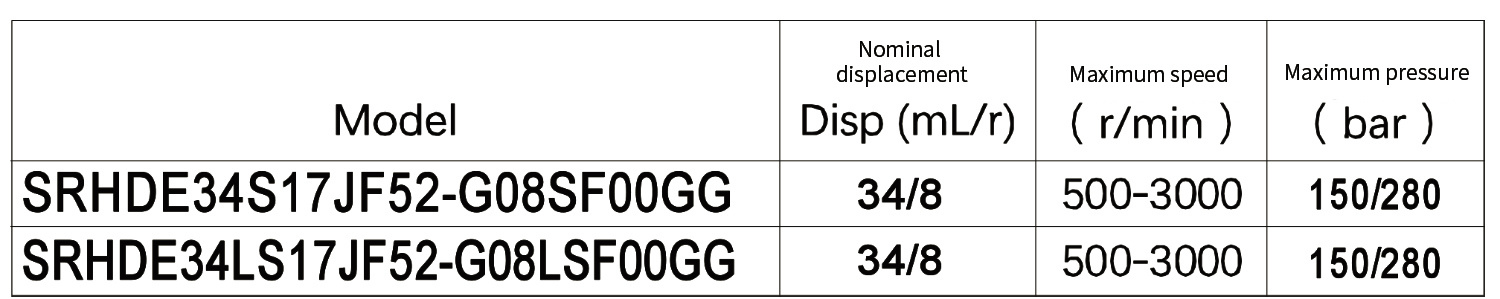

Performance Parameter
