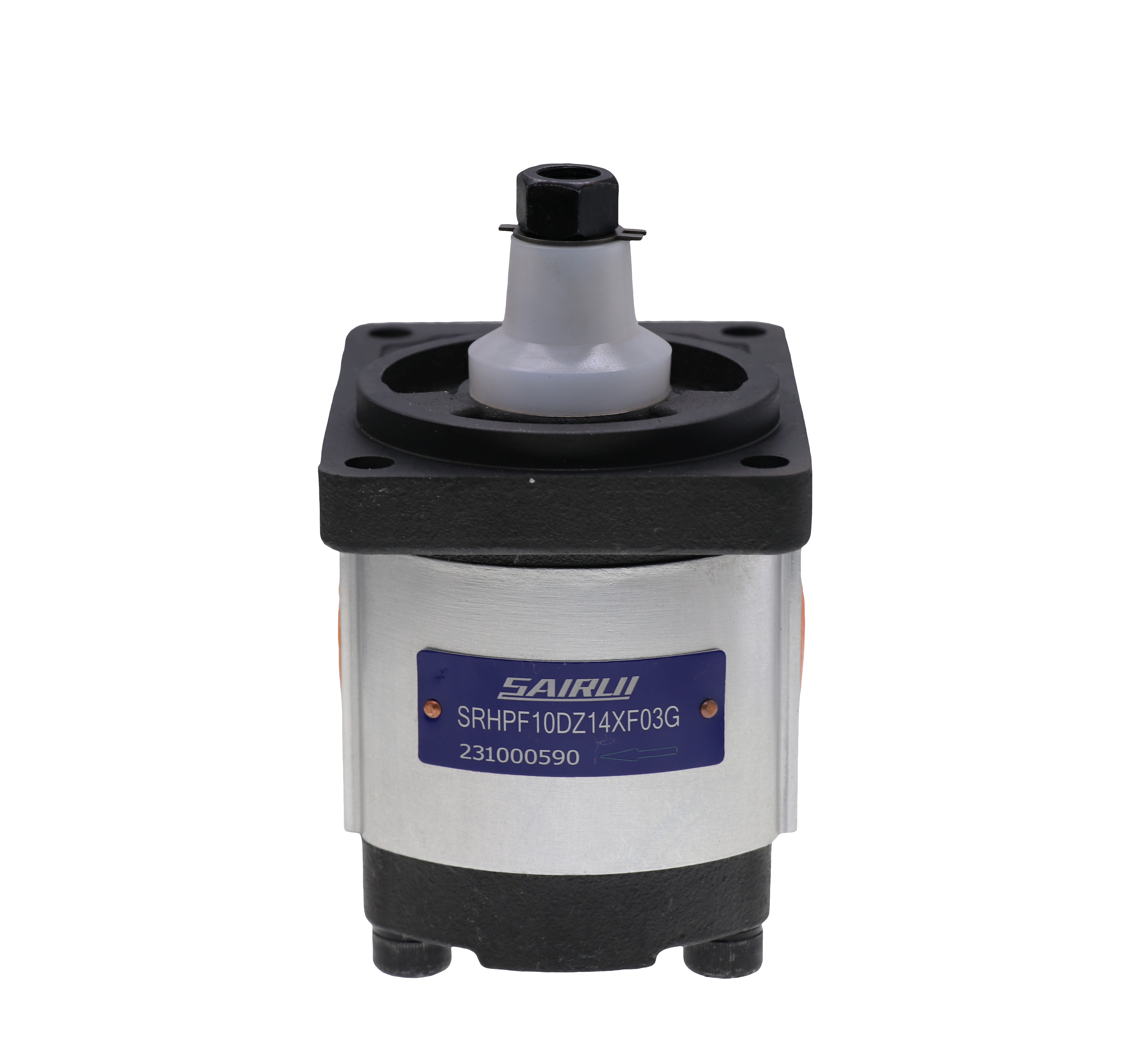

S18SF04 Gear Oil Pump
- Nominal displacement: Provide 10 displacement: 06mL/r、08mL/r、10mL/r、14mL/r、16mL/r、20mL/r、23mL/r、25mL/r、28mL/r、30mL/r,customizable.
Use And Characteristics
① High strength aluminum alloy shell;
② Light weight, compact structure and low noise;
③ Accurate and meticulous structural design makes the oil pump have high volumetric efficiency and high mechanical efficiency;
④ Wide application range

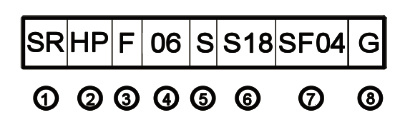

Model Description
① Code name
② Classification code
③ Pressure grade (F: 20MPa)
④ Nominal displacement (mL/r)
⑤ Rotation direction S: left-handed; D: Dextral
⑥ Axial extension and flange [see appendix]
⑦ Oil port form [see appendix]
⑧ Front and rear cover materials

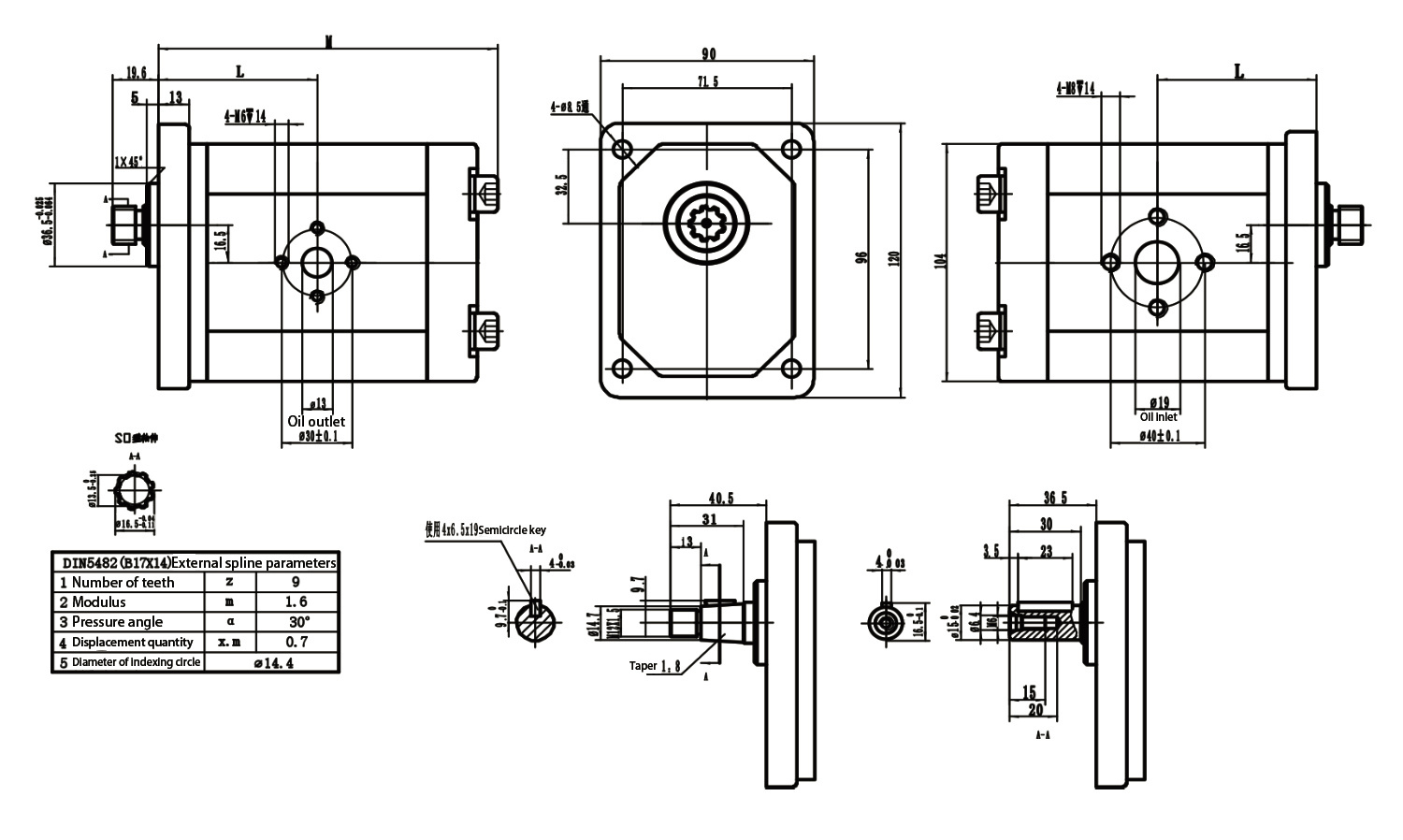

Outline Drawing
Performance Parameters
