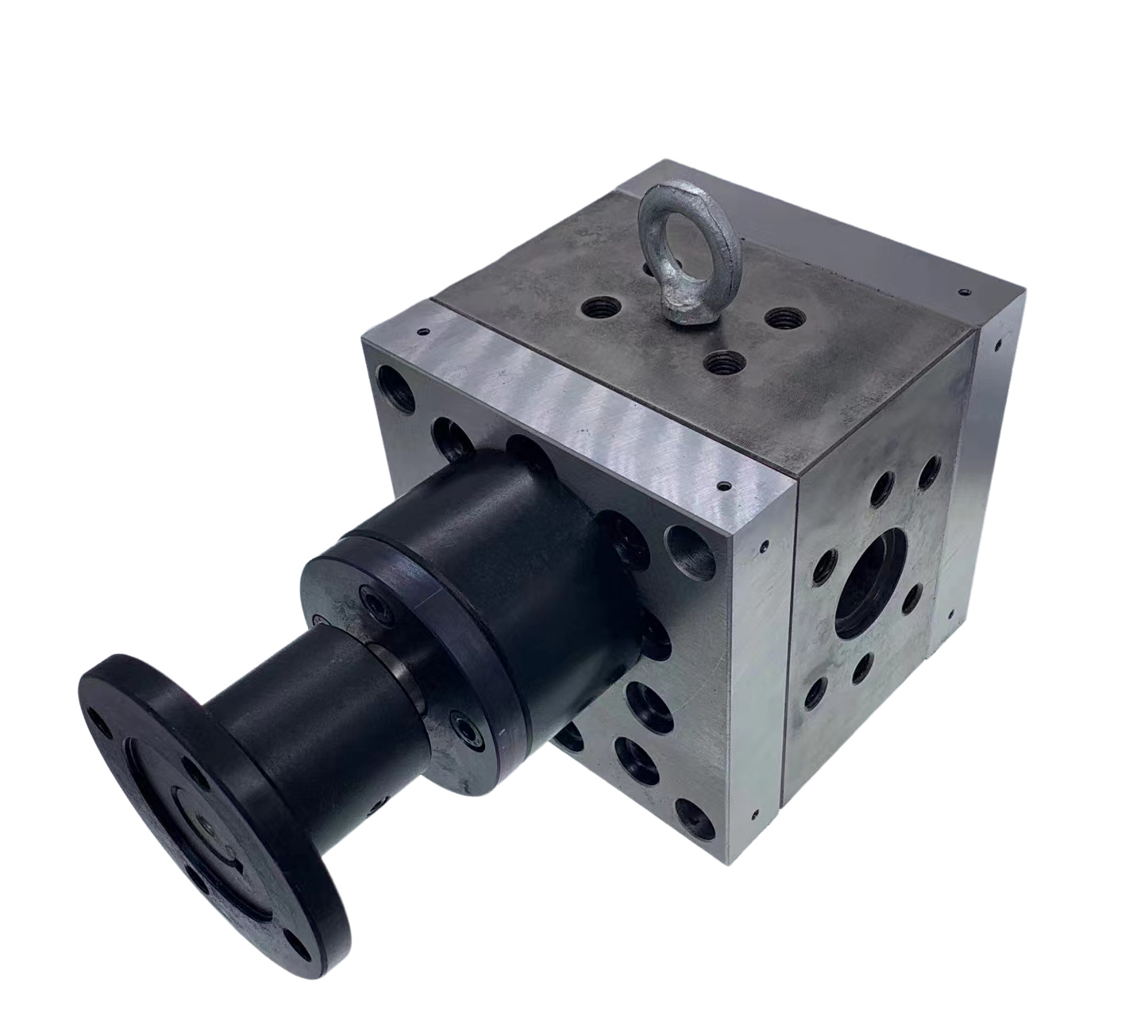

SRZB Melt Pump
- Nominal displacement: Two displacement types are provided, namely, 20mL/r and 80mL/r, which can be customized.
Purpose And Characteristics
① High temperature mold steel pump body, high strength, low deformation;
② High temperature alloy steel hard tooth surface transmission, long service life, stable performance;
③ Low starting torque, good sealing performance;
④ This product is widely used in the transportation and metering of high-temperature and high-viscosity media.

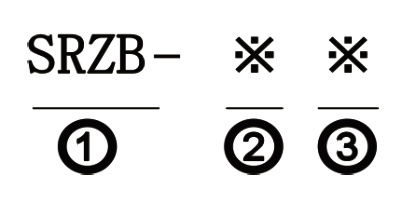

Model Description
① Product Series
② Nominal displacement (mL/r)
③ Rotation direction [L: Left rotation R: Right rotation]

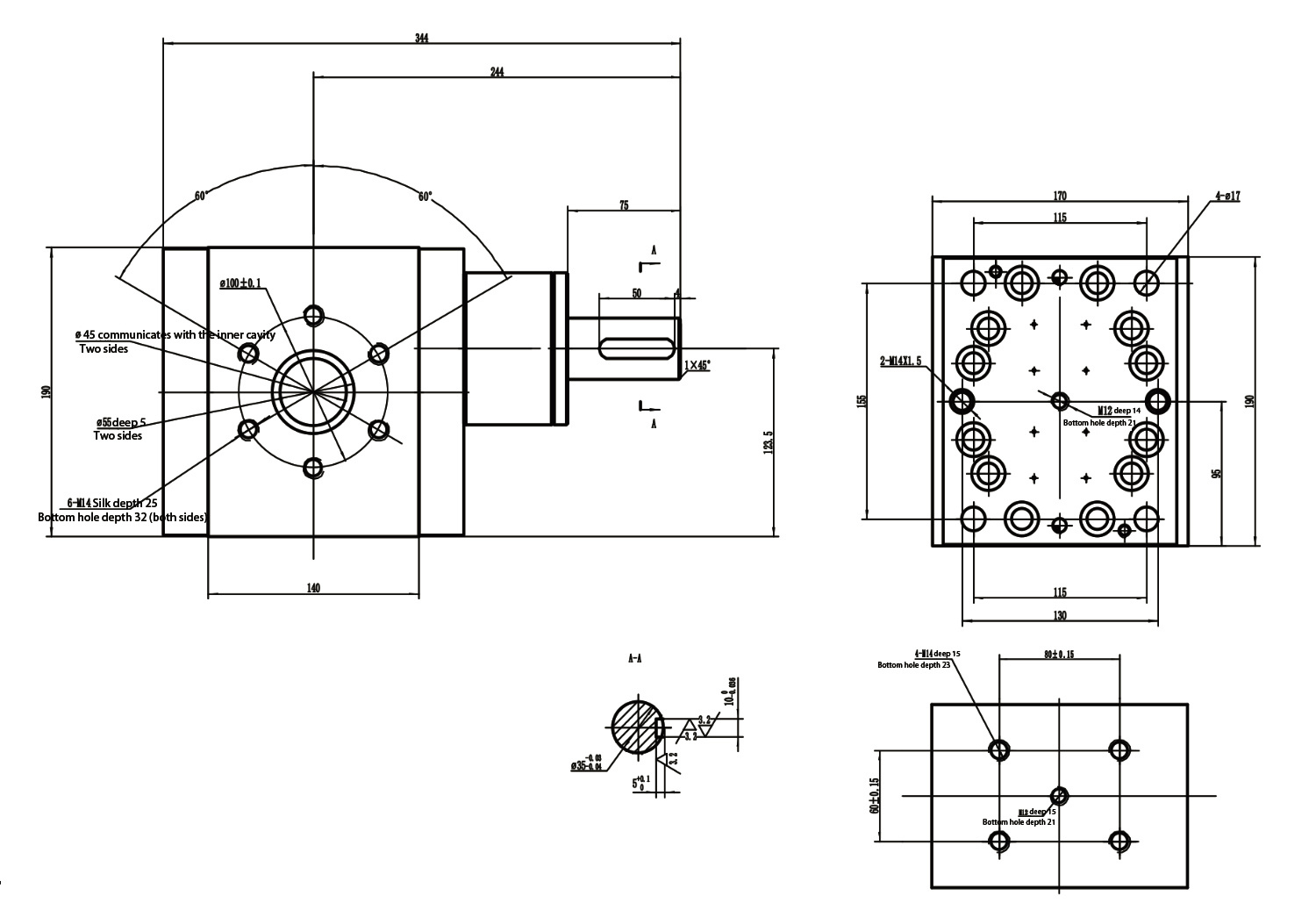

Outline Drawing

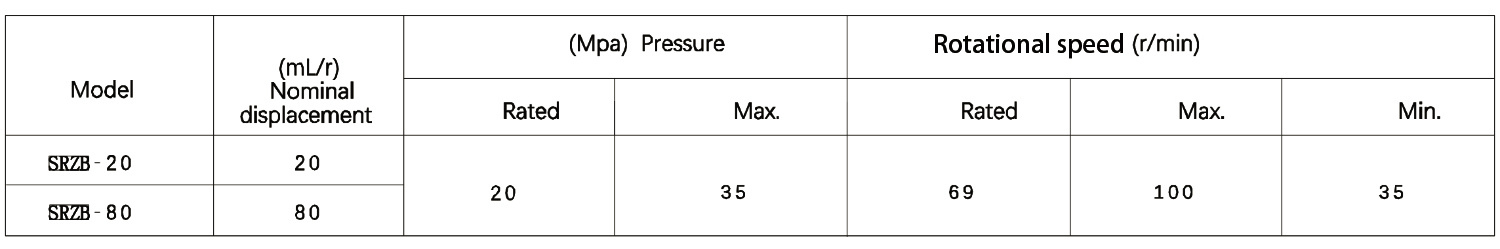

Performance Parameters

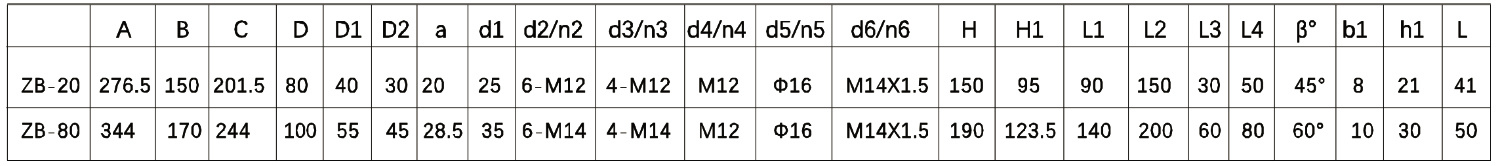

Dimensional Parameter
